Brushless Kit 2208 Motor 35A ESC 6x4.3 Propellers 2pcs 9G Servo RC Plane Parts

This all-in-one motor combo kit is the perfect power system for small RC planes, fixed-wing drones, and DIY flight projects. Featuring the high-speed A2208 2600KV brushless outrunner motor, a responsive 35A BLHeli-S ESC, HQProp 6x4.3 propellers, and two SG90 9g servos, it delivers efficient thrust, smooth control, and reliable performance for both beginner and experienced pilots.

The A2208 motor provides a great balance of speed, efficiency, and power output, while the 35A ESC ensures precise throttle response and low noise with DShot and OneShot support. The included HQProp propellers offer durable, well-balanced lift and thrust, and the SG90 servos provide precise angle control for your control surfaces or robotics applications.

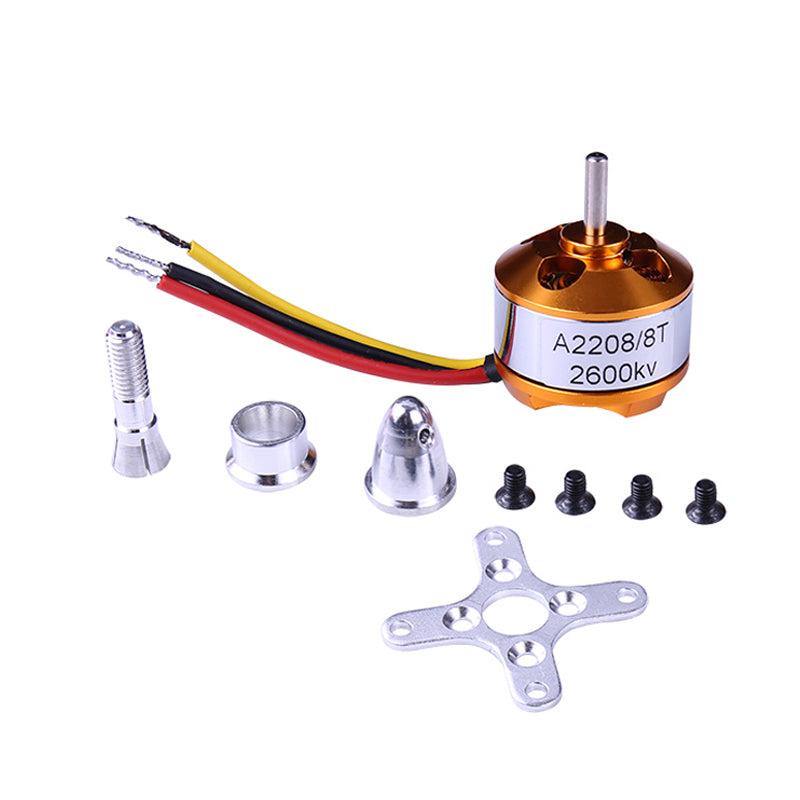

A2208 Brushless Motor Specifications:

• KV Rating: 2600KV

• Max Efficiency: 80%

• Max Efficiency Current: 6–13A (>74%)

• Max Current: 18A (60s)

• No-load Current @10V: 1.1A

• No. of Cells: 2–3S LiPo

• Suggested Props:

• 3S: 5030 (High-speed push-back plane)

• 2S: 6035

• Motor Dimensions: 27.8 x 23mm

• Shaft Diameter: 3.17mm

• Weight: 36g

• Package Includes: Motor, Prop Adapter, Hardware Set, Mounting Plate

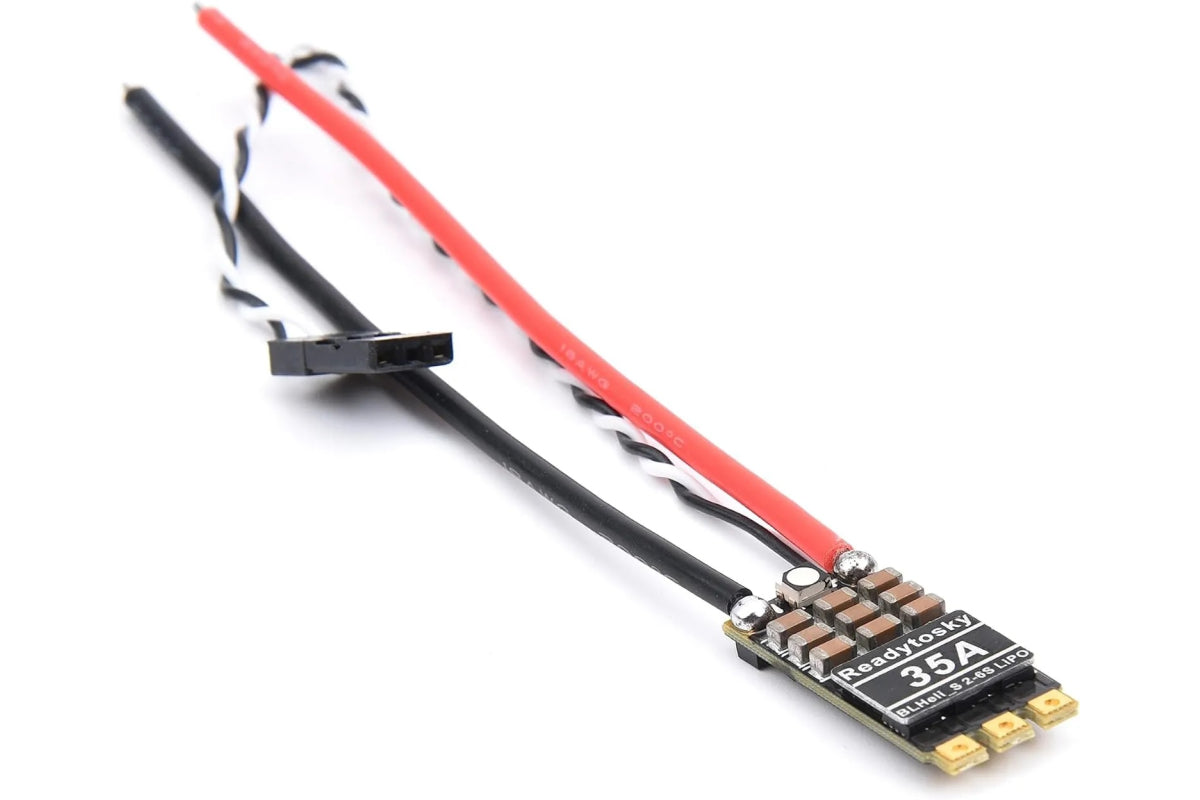

35A ESC Specifications:

• Chip: EFM8BB21F16G high-speed control chip

• Voltage Support: 2S–6S LiPo

• Continuous Current: 35A

• Peak Current: 45A (10s)

• Supported Protocols: DShot150/300/600, Oneshot125

• Features:

• Damped Light regenerative braking

• RGB LED night light

• Fast, smooth throttle response

• Low noise, high efficiency

• 6-layer PCB with 3oz copper for superior heat dissipatio

• Wire Lengths:

• Power Cord: 18AWG 90mm

• Signal Line: 150mm

• Package Includes: 1x 35A ESC

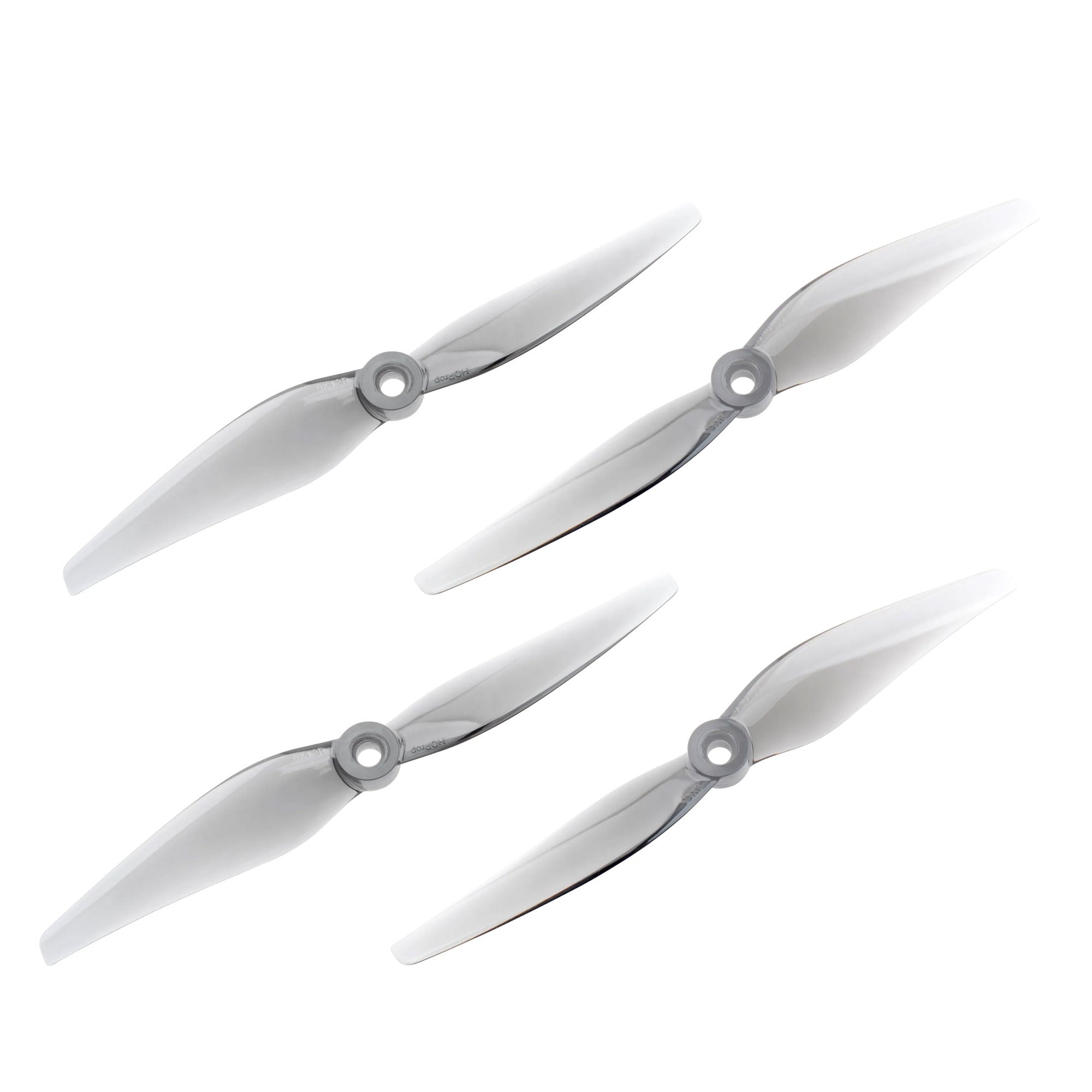

HQProp 6x4.3 Propeller Specifications:

• Diameter: 6 inches

• Pitch: 4.3

• Blades: 2

• Material: Polycarbonate

• Weight: 4.7g each

• Hub Diameter: 13mm

• Hub Thickness: 6m

• Shaft Diameter: 5mm

• Package Includes:

• 2x CW Propellers

• 2x CCW Propellers

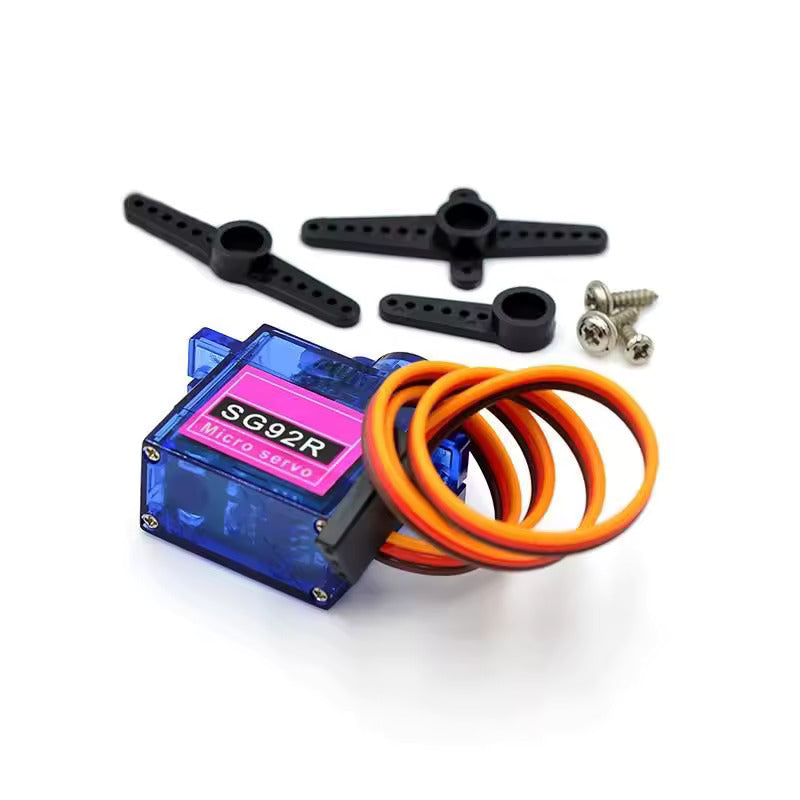

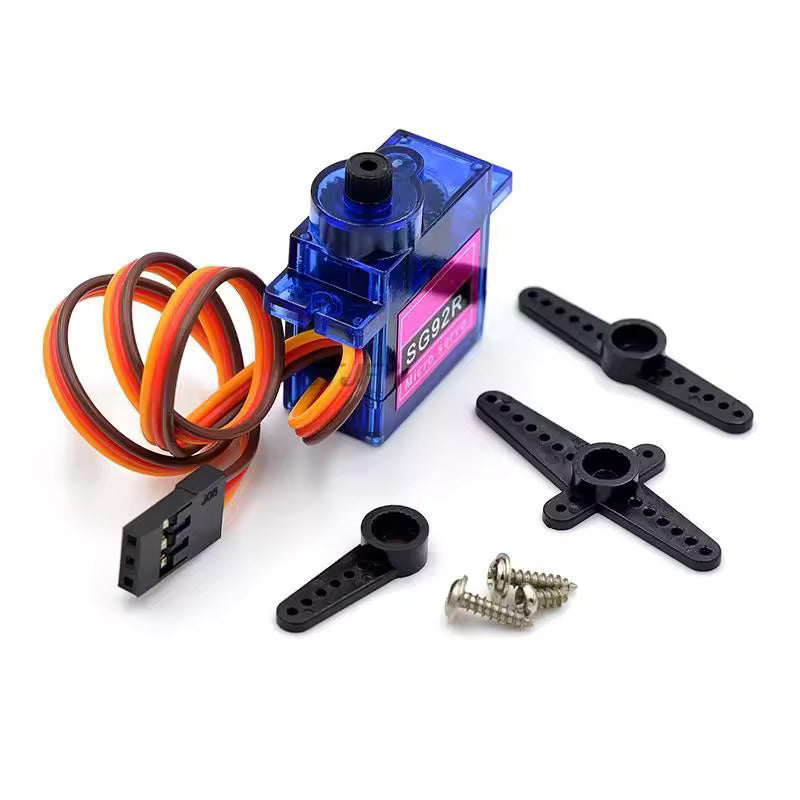

SG92R 9G Servo Specifications:

• Operating Voltage: 4.8V–6V

• No-load Speed: 0.09 sec/60°

• No-load Current: 90mA

• Stall Torque: 1.3–1.6 kg·cm

• Stall Current: 750mA ±10%

• Control Signal: PWM (500–2500µs)

• Rotation Angle: 180° ±3°

• Dead Zone: 8µs

• Size: 22.4 × 12.5 × 22.8mm

• Weight: ~12.3g

• Package Includes (per servo): Servo, Servo Horns, Mounting Screws

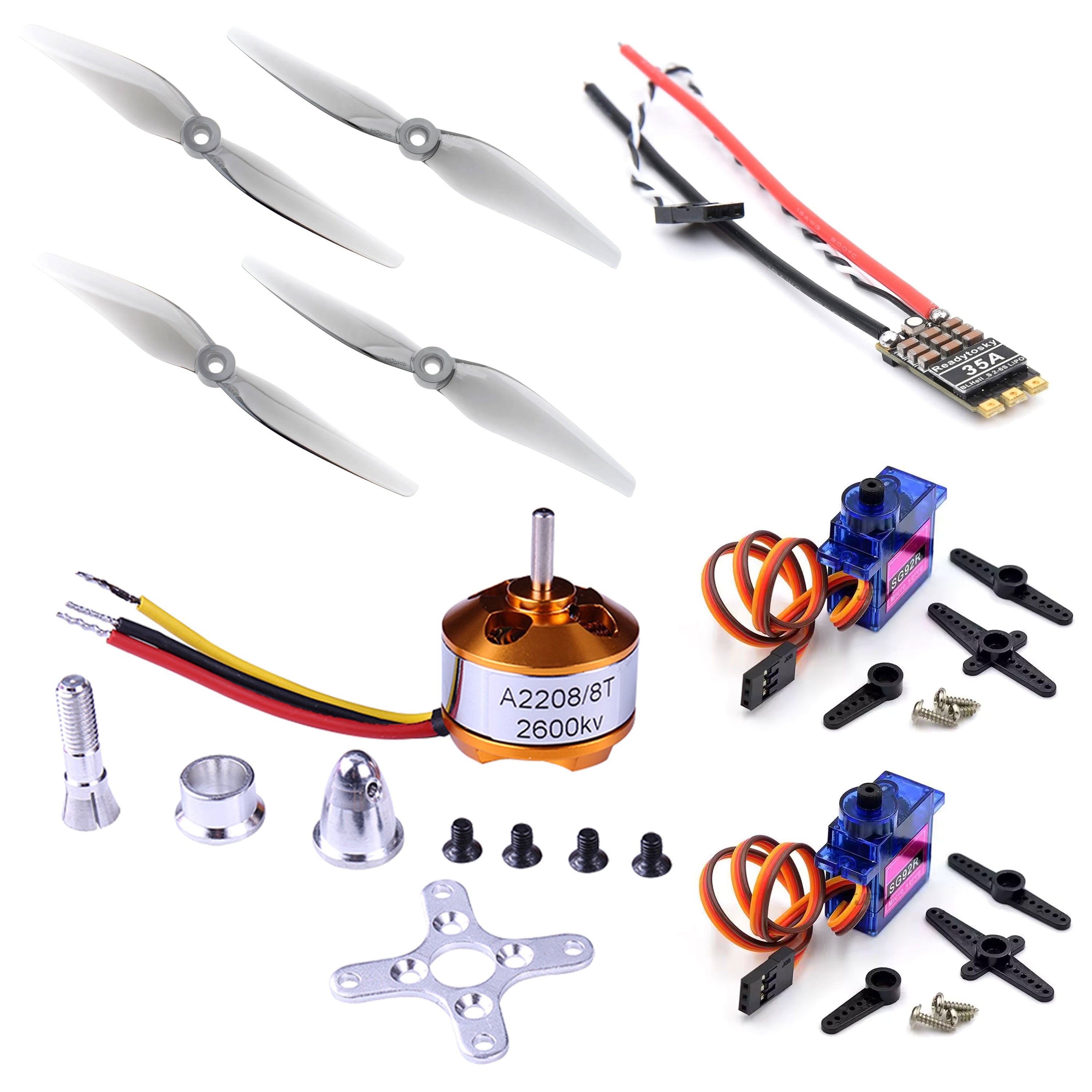

Package Contents:

• 1x A2208 2600KV Brushless Motor

• 1x 35A BLHeli-S ESC

• 4x HQProp 6x4.3 Propellers (2CW + 2CCW)

• 2x SG90 9g Servos

• Mounting hardware and accessories
