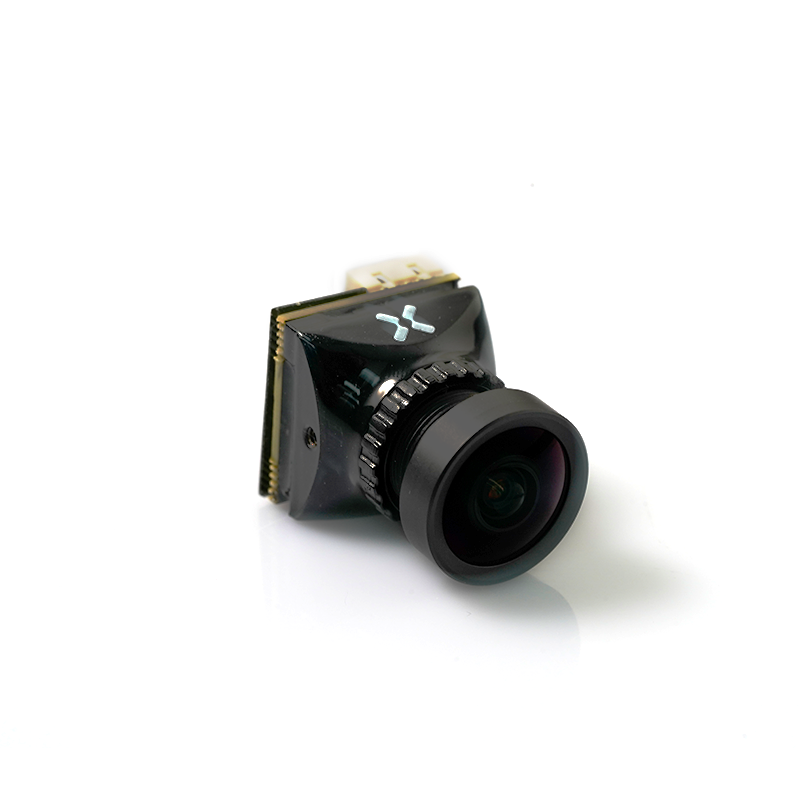

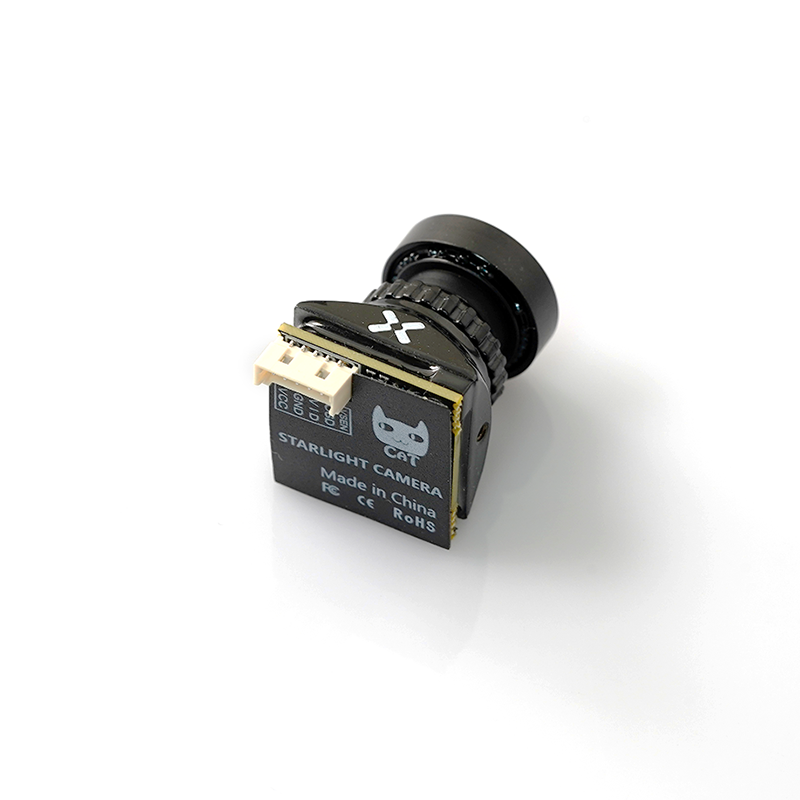

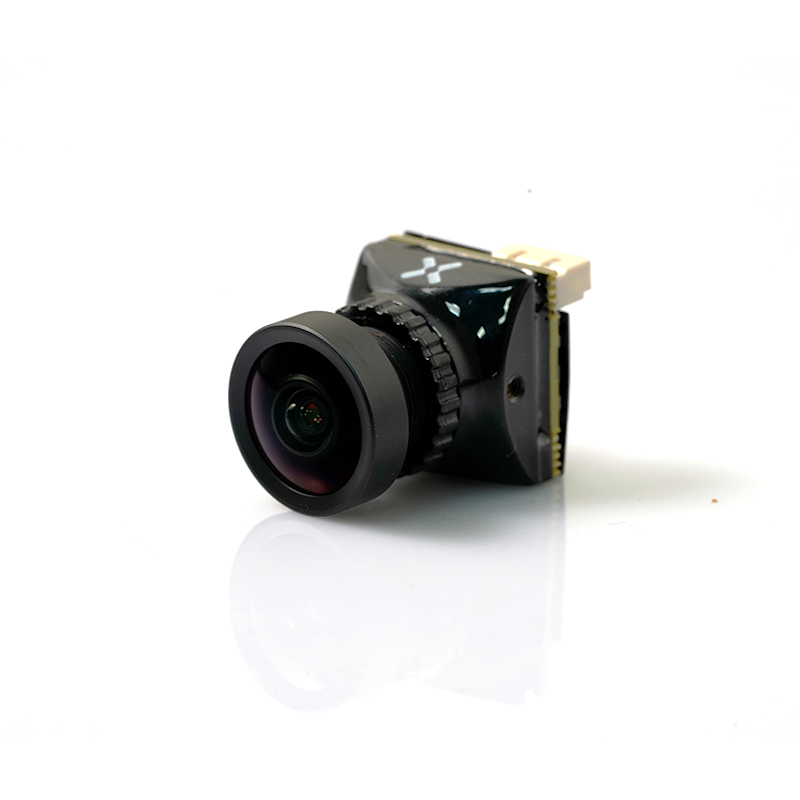

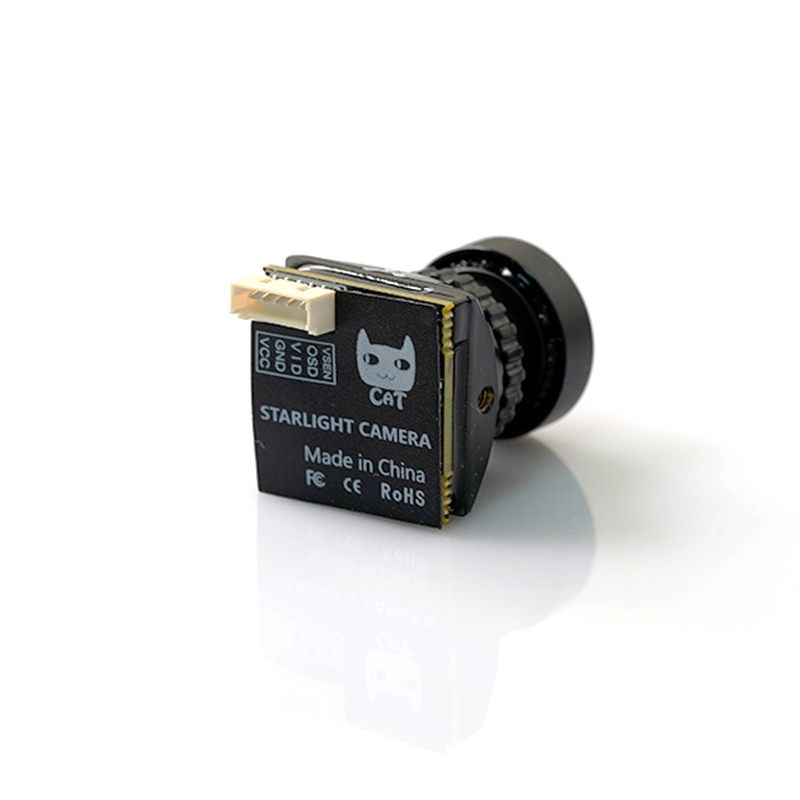

Foxeer Micro Cat 4 1200TVL StarLight FPV Camera

The Foxeer Cat 4 Micro is a high-sensitivity starlight FPV camera designed for ultra-low-light flying with low latency and clean image output. It delivers excellent night performance while remaining compact and lightweight for micro and freestyle builds.

Featuring a 1/3" CMOS sensor, switchable 4:3 / 16:9 aspect ratios, and Foxeer OSD menu control support, the Cat 4 Micro is optimized for both daytime clarity and extreme low-light environments.

Key Features:

• Ultra-low-light performance with starlight sensitivity
• Low latency analog FPV output
• Switchable 4:3 / 16:9 aspect ratio
• PAL / NTSC switchable
• Large aperture low-light lens
• Exclusive optimization for LED lighting environments
• Supports OSD menu control via Foxeer flight controllers

Camera Specifications:

• Sensor Type: 1/3" CMOS
• Resolution: 1200TVL
• Video Output: CVBS Analog
• Minimum Illumination: 0.00001 Lux
• Lens: M12 2.1mm Low-Light Lens
• Aspect Ratio: 4:3 (Default) / 16:9 Switchable
• TV System: PAL (Default) / NTSC Switchable

Field of View:

• 4:3 Mode: H: 95° / V: 72° / D: 120°
• 16:9 Mode: H: 95° / V: 53° / D: 110°

Image Processing:

• Shutter Speed: PAL 1/25–1/10000s, NTSC 1/30–1/10000s
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• Day / Night Modes: EXT / Auto / Color / B&W

OSD & Control:

• Flight OSD: Voltage / Camera Title / Time
• Menu Control: Supported via OSD remote / Foxeer FC
• Languages: English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek

Electrical & Environmental:

• Input Voltage: 5V–20V
• Current Consumption: 95mA ±15% @ 12V
• Operating Temperature: -10°C to 50°C (RH ≤90%)
• Operating Humidity: 20–80%
• Storage Temperature: -20°C to 70°C

Physical Specifications:

• Mounting Size: 19 × 19mm (Micro)
• Dimensions: 19 × 19mm
• Weight: 11.8g (excluding cable)

Package Contents:

• 1× Foxeer Cat 4 Micro FPV Camera
• 1× OSD Board
• 1× 2-pin OSD Cable
• 1× Servo Cable
• 4× Mounting Screws
• 4× Gasket Rings
