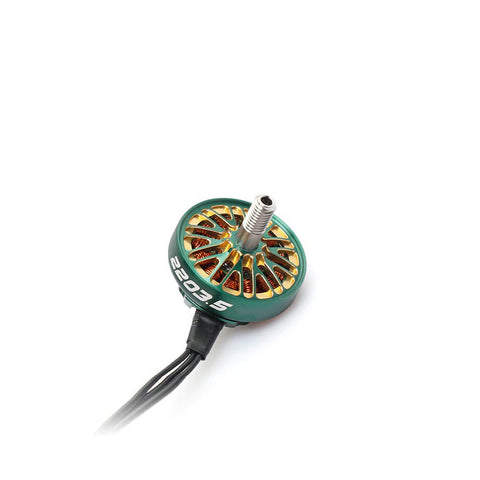

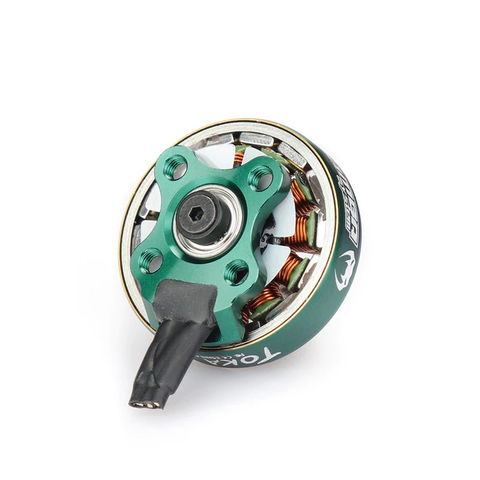

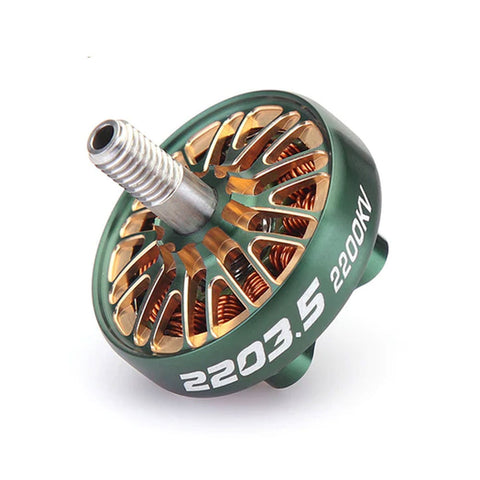

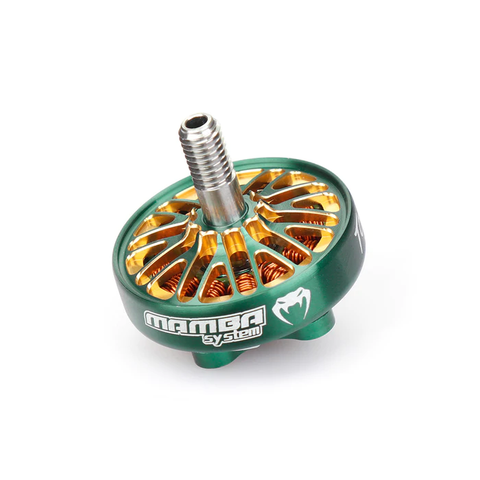

Diatone Mamba Toka 2203.5 Brushless Motor 4-6S 2200kV

Diatone Mamba Toka 2203.5 Brushless Motor 4-6S 2200kV

Sold Out

Product Type: Brushless Motor
Brand: Diatone
KV Rating: 2200KV
Motor Size: 2004
Motor Size: 2203.5

Specifications:
  • Diatone Mamba Toka 2203.5 Brushless Motor 2200KV
  • Overall Dimension: 28.9x29.4mm
  • Prop mounting shaft diameter:5mm
  • Installation hole position:16x16mmï¼M3
  • Recommended Propeller: 3.5"
  • Bearings: 9*4*4
  • Shaft Diameter: 4.0mm
  • Lead Wire Size: 24AWGx190mm
  • Slots/Poles: 12N14P
  • Magnet Wire: 240 Degrees Enameled Wire
  • Stator Diameter: 22mm
  • Stator Height: 3.5mm
  • Rated Voltage: 3~4S (12.6V~16.8V)
  • Peak Current: 29.78A
  • Idle Current: 10V/1.5~2.2A
  • Maximum Power: 475.1W
  • Internal Resistance: 80 ohm

 Package Contents:
  • 1x Mamba Toka 2203.5 3300KV Motor



>
