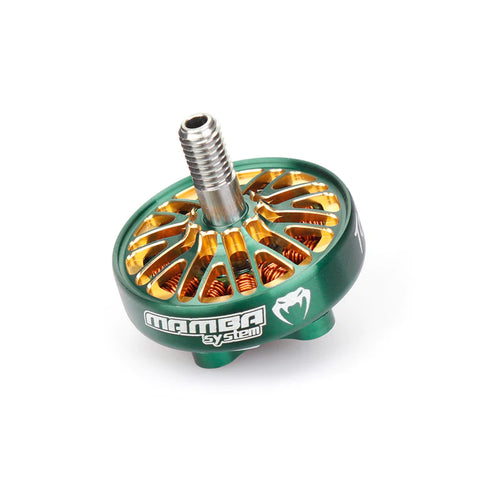

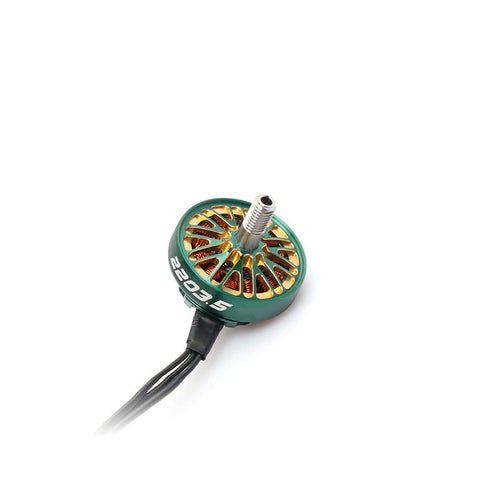

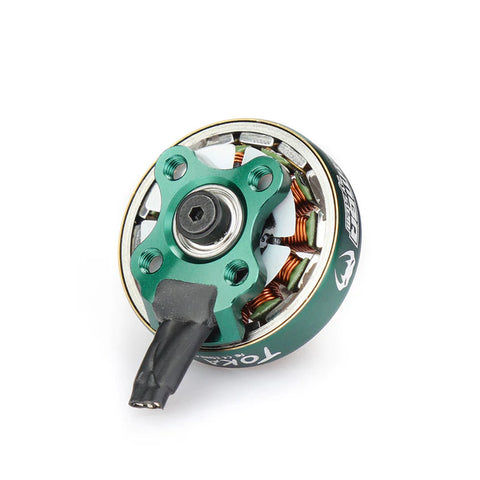

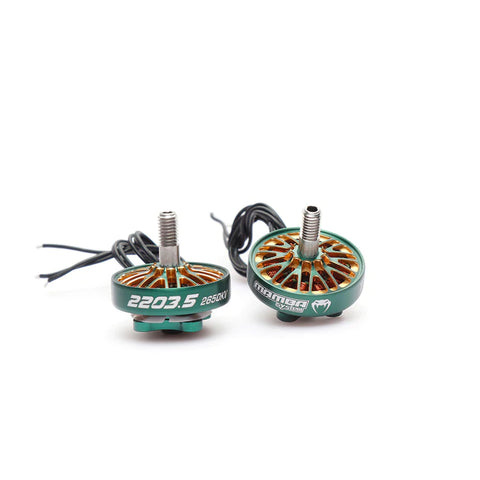

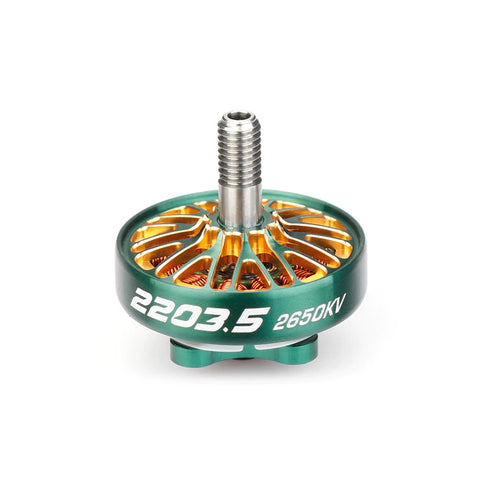

Diatone Mamba Toka 2203.5 Brushless Motor 4-6S 2650kV
Diatone Mamba Toka 2203.5 Brushless Motor 4-6S 2650kV
Product Type: Unknown Type
Brand: Diatone
KV Rating: 2650KV
Motor Size: 2004
Motor Size: 2203.5
Brand: Diatone
KV Rating: 2650KV
Motor Size: 2004
Motor Size: 2203.5
Specifications:
- Diatone Mamba Toka 2203.5 Brushless Motor 2650KV
- Overall Dimensions: Φ28.9×29.4mm
- Propeller Shaft Diameter: 5mm
- Installation Hole Position: 16×16mm, M3
- Recommended Propeller: 5"
- Bearings: 9*4*4
- Shaft Diameter: 4.0mm
- Lead Wire Size: 24AWG×190mm
- Slots/Poles: 12N14P
- Magnet Wire: 240℃ Enameled Wire
- Stator Diameter: 22mm
- Stator Height: 3.5mm
- Rated Voltage: 3~4S (12.6V~16.8V)
- Peak Current: 27.64A
- Idle Current: 10V/0.9~1.9A
- Maximum Power: 441.24W
- Internal Resistance: 120mΩ
Package Contents:
- 1x Mamba Toka 2203.5 2650KV Motors
