DS3218MG Large Metal Gear Digital Servo for RC Car Boat (20kg)
DS3218MG Large Metal Gear Digital Servo for RC Car Boat (20kg)
Sold Out
Mechanical Specifications:

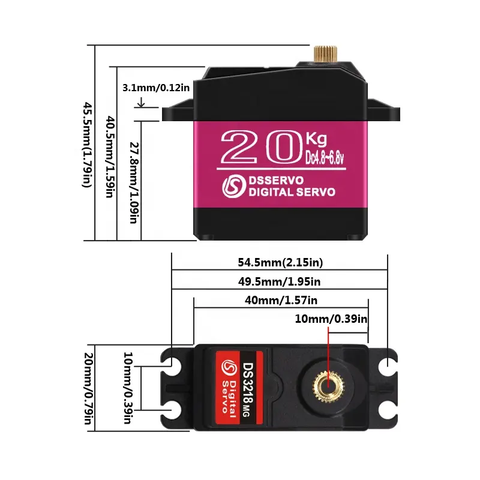

- Size: 40.0*20.5*40.5mm
- Waterproof: Yes
- Weight: 58g±2g
- Limit angle: 360 Degrees
- Bearing: 2BB
- Horn gear spline: 25T Diameter:5.9mm

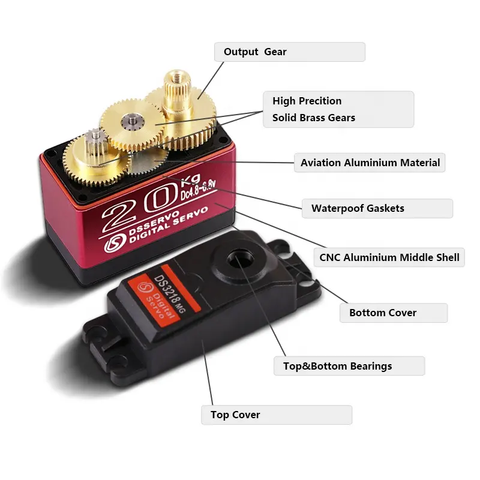

- Case: CNC Aluminum center
- Operating Speed (5V): 0.16sec / 60 Degrees at no load
- Operating Speed (6.8V): 0.14sec / 60 Degrees at no load
- Stall Torque (5V): 19 kg/cm (263.8oz/in)
- Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
- Connector wire: 320mm±5mm
- Motor: Carbon brush motor
Electrical Specifications:
- Working voltage range: 4.8V - 6.8V
- Signal: PWM
- Amplifier: Full Digital
- Pulse Width Range: 500～2500usec
- Neutral position: 1500usec
- Running degree: 180±3 Degrees(PWM 500～2500usec)
- Dead band width: 3 usec
- Rotating direction Counterclockwise: (when 1000～2000usec)

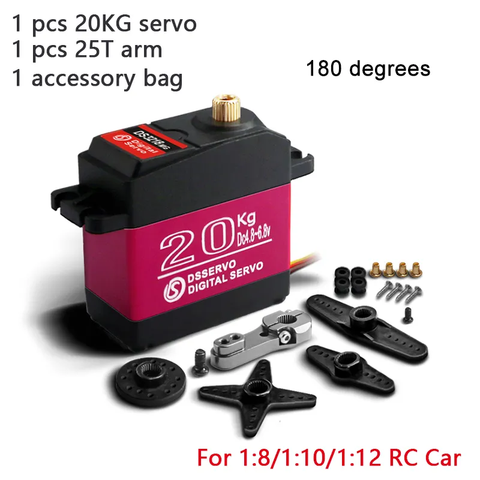

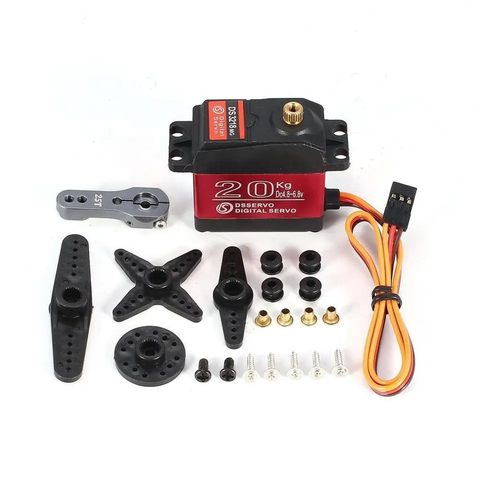

Package Contents:
- 1x DS3218MG 20KG Digitital Servo
- 1x Hardware Pack
- 1x Aluminum Arm
- 4x Plastic Arms
