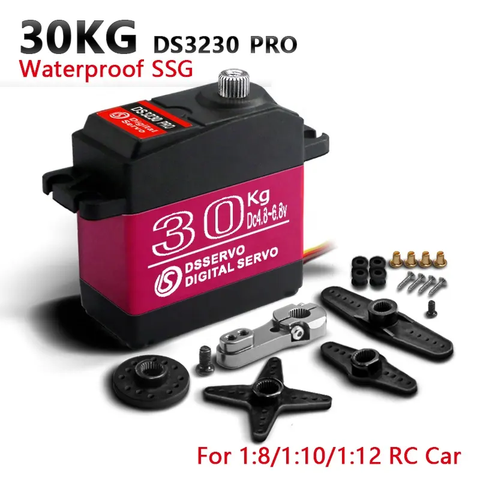

DS3230MG Large Metal Gear Digital Servo for RC Car Boat (30kg)
DS3230MG Large Metal Gear Digital Servo for RC Car Boat (30kg)

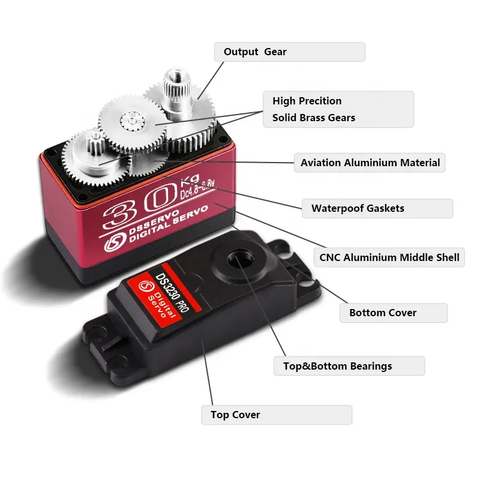

Mechanical Specifications:

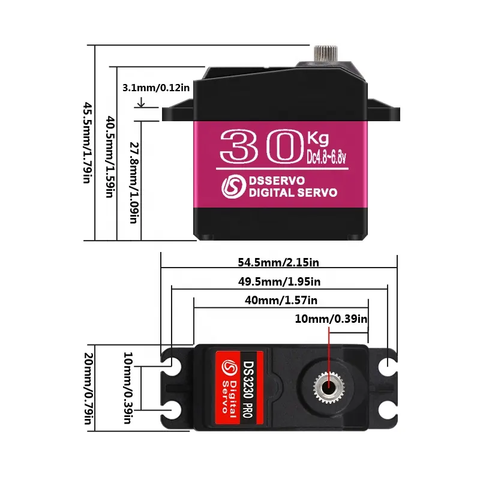

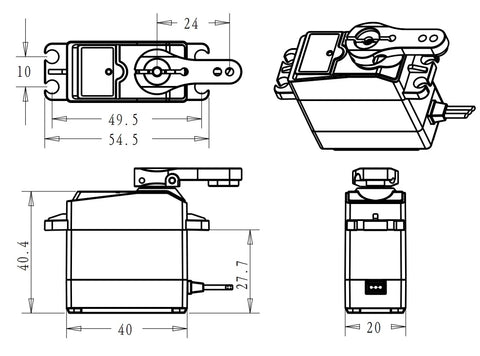

- Size: 40.0*20.5*40.5mm
- Waterproof: Yes
- Weight: 58g±2g
- Limit angle: 360°
- Bearing: 2BB
- Horn gear spline: 25T Diameter:5.9mm
- Case: CNC Aluminum center
- Operating Speed (5V): 0.16sec / 60° at no load
- Operating Speed (6.8V): 0.14sec / 60° at no load
- Stall Torque (5V): 19 kg/cm (263.8oz/in)
- Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
- Connector wire: 320mm±5mm
- Motor: Carbon brush motor
Electrical Specifications:
- Working voltage range: 4.8V - 6.8V
- Signal: PWM
- Amplifier: Full Digital
- Pulse Width Range: 500～2500usec
- Neutral position: 1500usec
- Running degree: 180±3°(PWM 500～2500usec)
- Dead band width: 3 usec
- Rotating direction Counterclockwise: (when 1000～2000usec)
Package Contents:
- 1x DS3218MG 20KG Digitital Servo
- 1x Hardware Pack
- 1x Aluminum Arm
- 4x Plastic Arms
