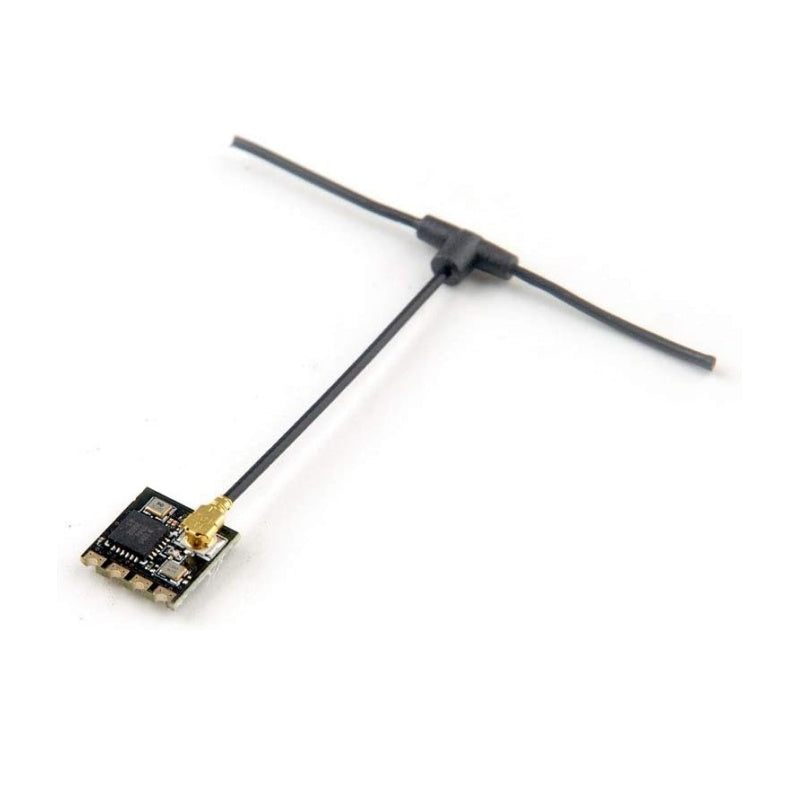

2.4GHz Mini 2 SX1280 RX ELRS Radio Receiver with T Type Antenna

To enter binding mode, power the receiver on and off quickly three times. The LED will begin double-flashing, indicating it is ready to bind. At this point, initiate the bind process from the HF module.

Once binding is successful, the receiver’s LED will remain solid, confirming a stable connection and telemetry link.

Receiver LED indicators work as follows:
Solid light: binding successful or normal communication
Double flash: binding mode
Slow flash: no signal from the transmitter
Fast flash: WiFi communication mode

Specifications:

• Type: ISM
• ESP8285 processor
• 2.4GHz Omnidirectional T Antenna

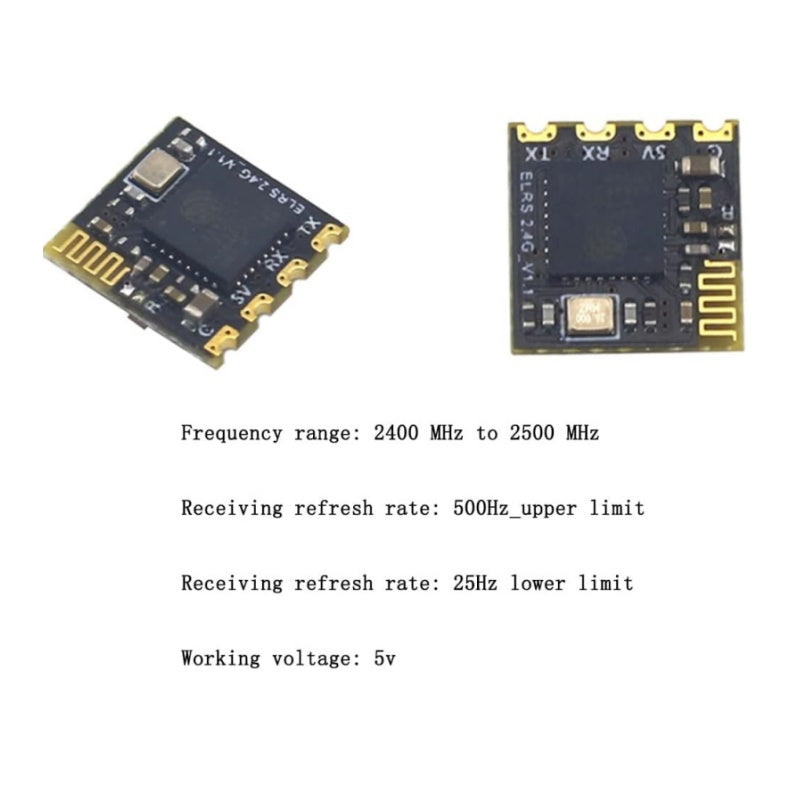

• Frequency range: 2400 MHz to 2500 MHz
• Receiving refresh rate: 500Hz_upper limit
• Receiving refresh rate: 25Hz lower limit
• Working voltage: 5v

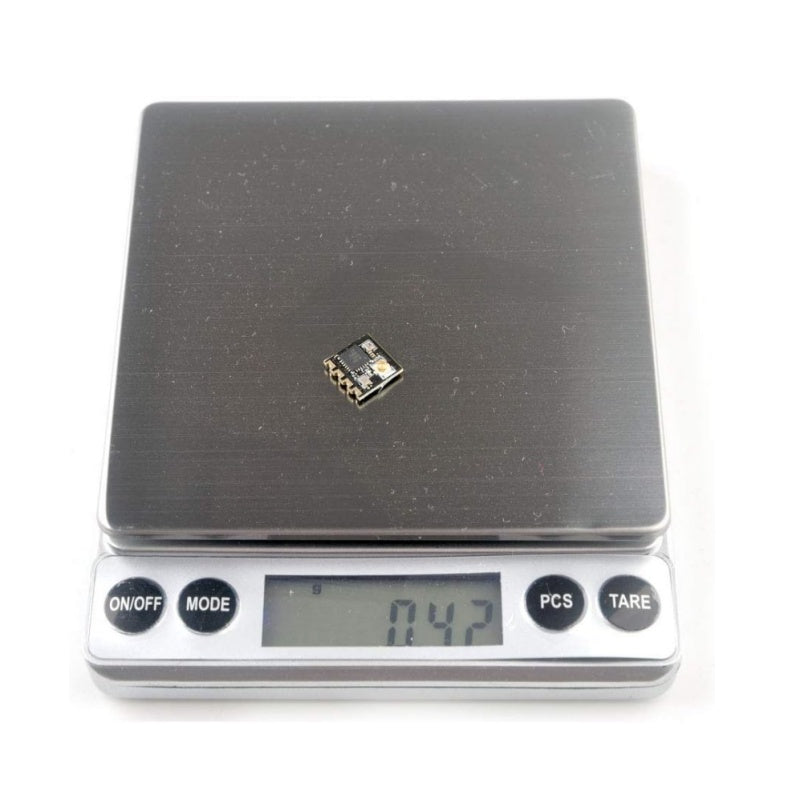

• Weight: 0.42g (without antenna)
• Size: 10mm*10mm*3mm Working Agreement: CRSF (Betaflight)

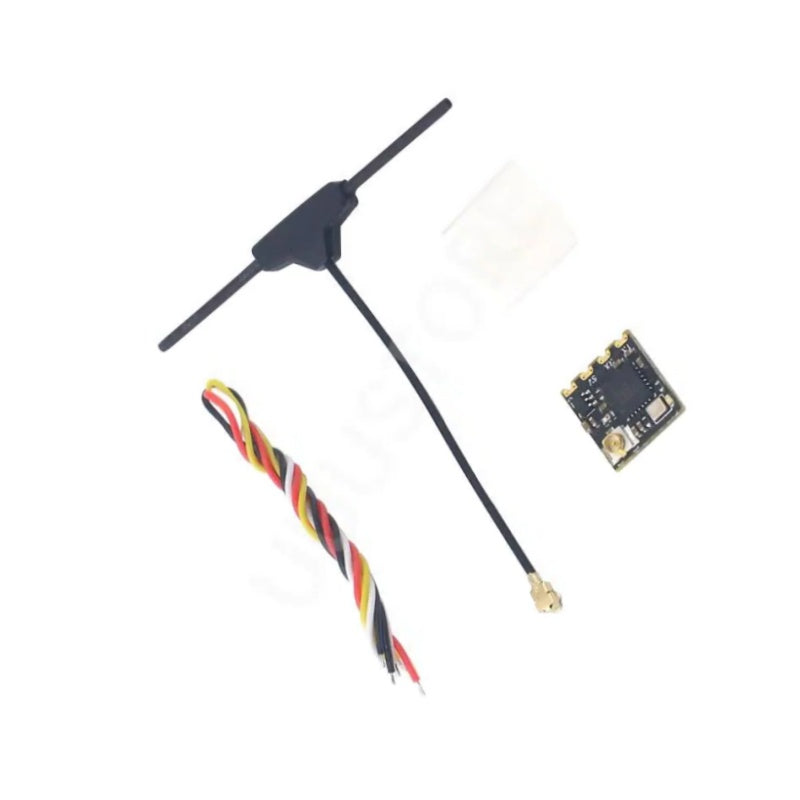

Package Contents:

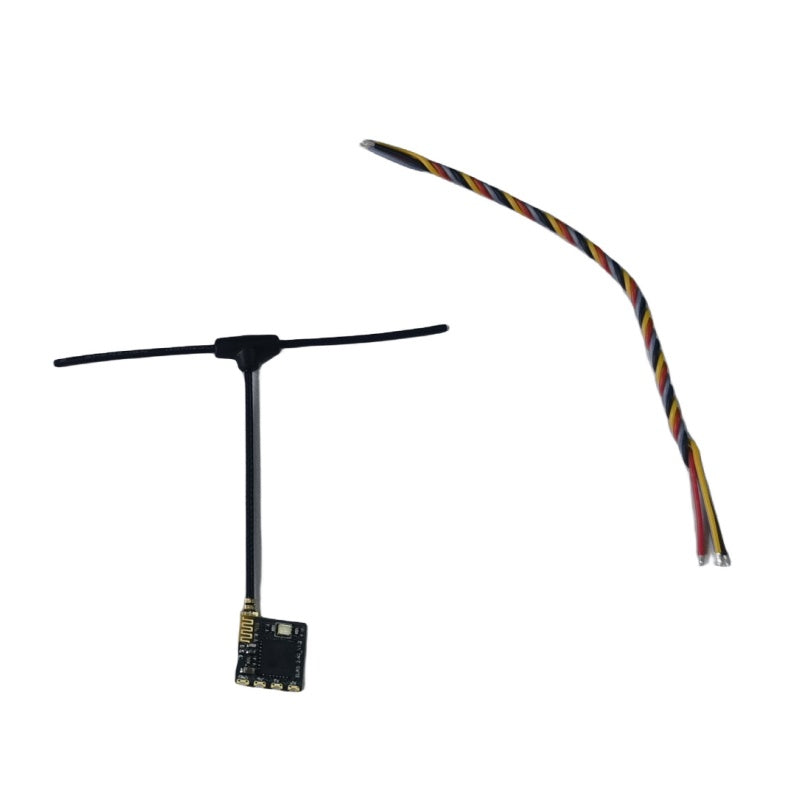

• 1x 2.4GHz Mini 2 2400 RX ELRS Radio Receiver with T Type Antenna
