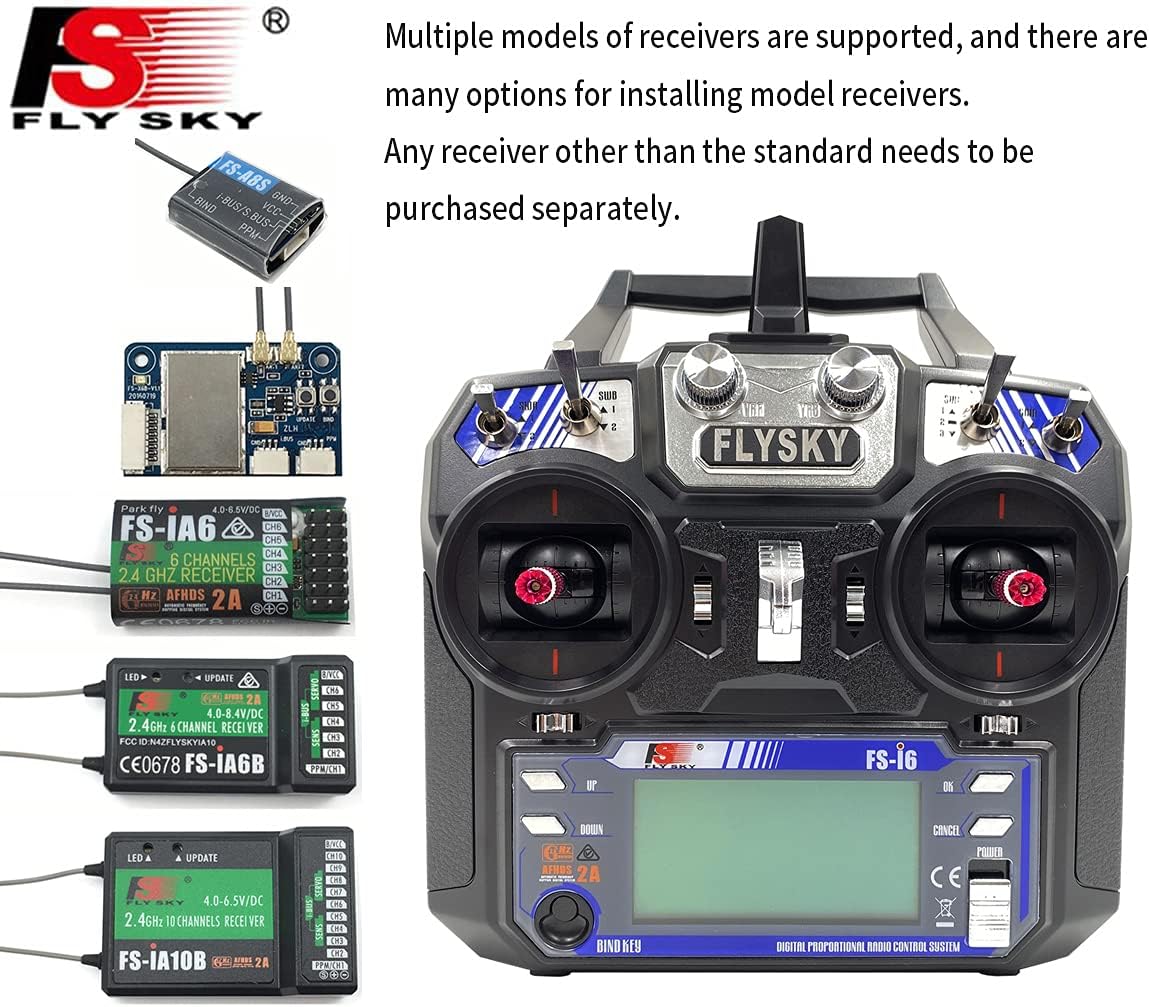

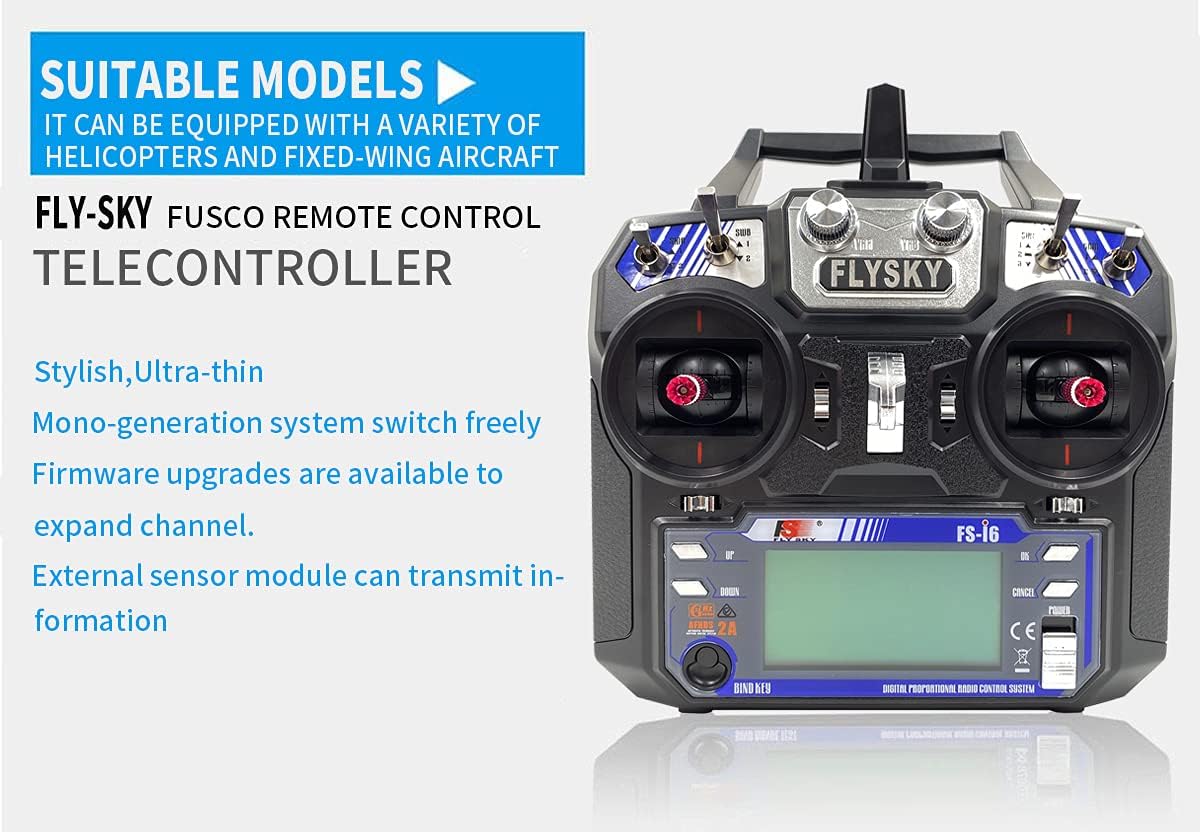

Flysky FS-i6 2.4GHz Remote Controller Transmitter with Receiver Mode 2

Flysky FS-i6 2.4GHz Remote Controller Transmitter with Receiver Mode 2

Sold Out

Product Type: Radio Controller
Brand: Turnigy
Channels: 6 Channels
Controller Mode: Mode 2
Includes Receiver: Receiver Included
Output: PPM
Protocol: AFHDS 2A

Please note:
The FLYSKY FS-I6 is Left hand throttle(Mode 2), the throttle stick will not return to the center up and down.

The transmitter and receiver have been pre-bound before delivery.

If you are using another transmitter or receiver, follow the steps below to bind to the B/VCC port on the receiver.
1, Connect the supplied bind cable to the B/VCC port on the receiver.
2, Insert power into any other port.
3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.
4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port.
5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning.

FS-I6 Controller Specifications:

  • Channels: 6
  • Model Type: Glider/Heli/Airplane
  • RF Range: 2.40-2.48GHz
  • brandwidth: 500KHz
  • brand: 142
  • RF Power: Less Than 20dBm
  • 2.4ghz System: AFHDS 2A and AFHDS
  • Code Type: GFSK
  • Sensitivity: 1024
  • Low Voltage Warning: less than 4.2V
  • DSC Port: PS2;Output:PPM
  • Charger Port: No
  • ANT length: 26mm*2(dual antenna)
  • Transmitter Weight: 392g
  • Transmitter Size: 174x89x190mm
  • Package Size: 23.5x21.2x10.6cm
  • Package Weight: 676g
  • Power: 6V, 4*AA Battery(Not included)

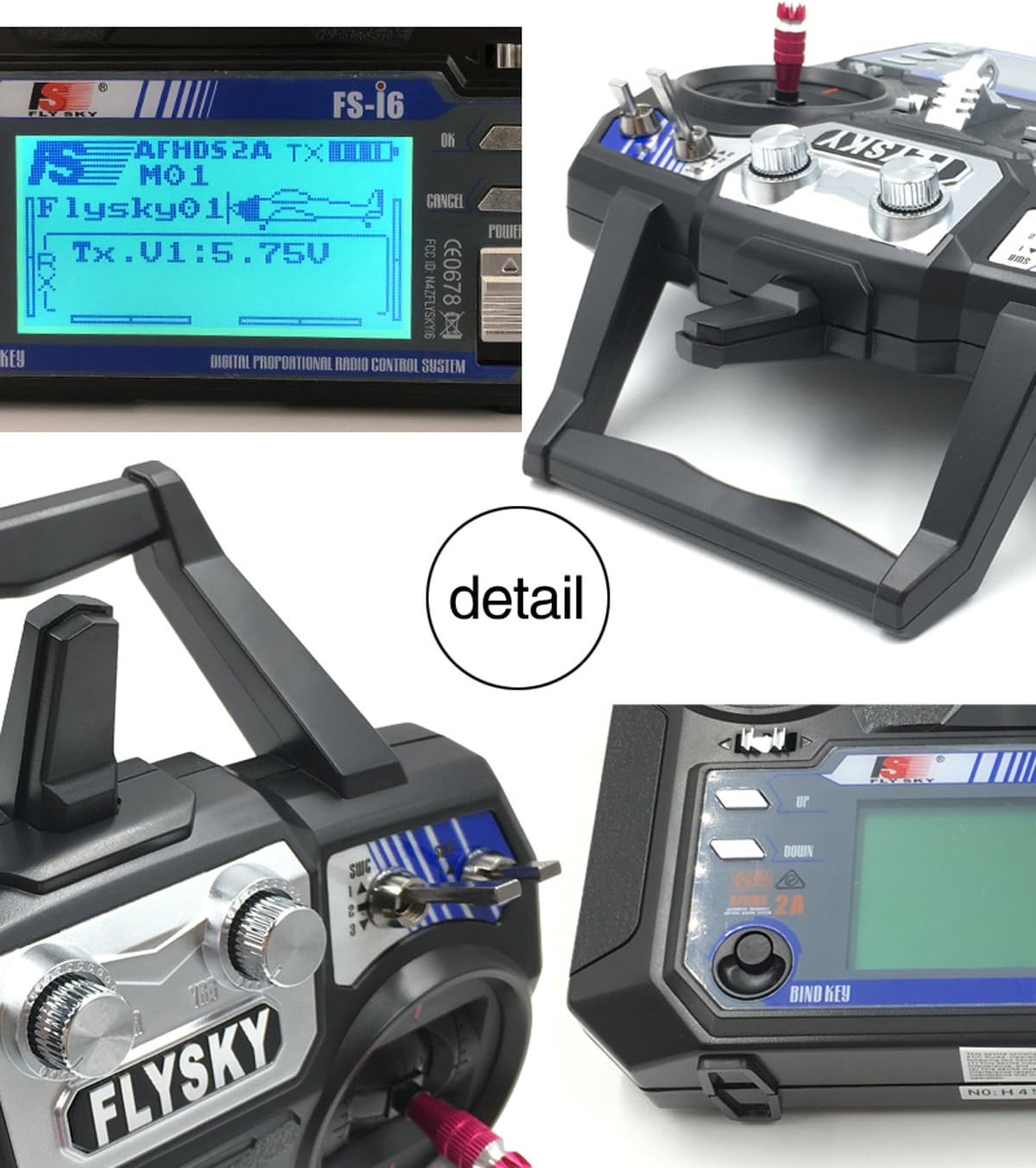

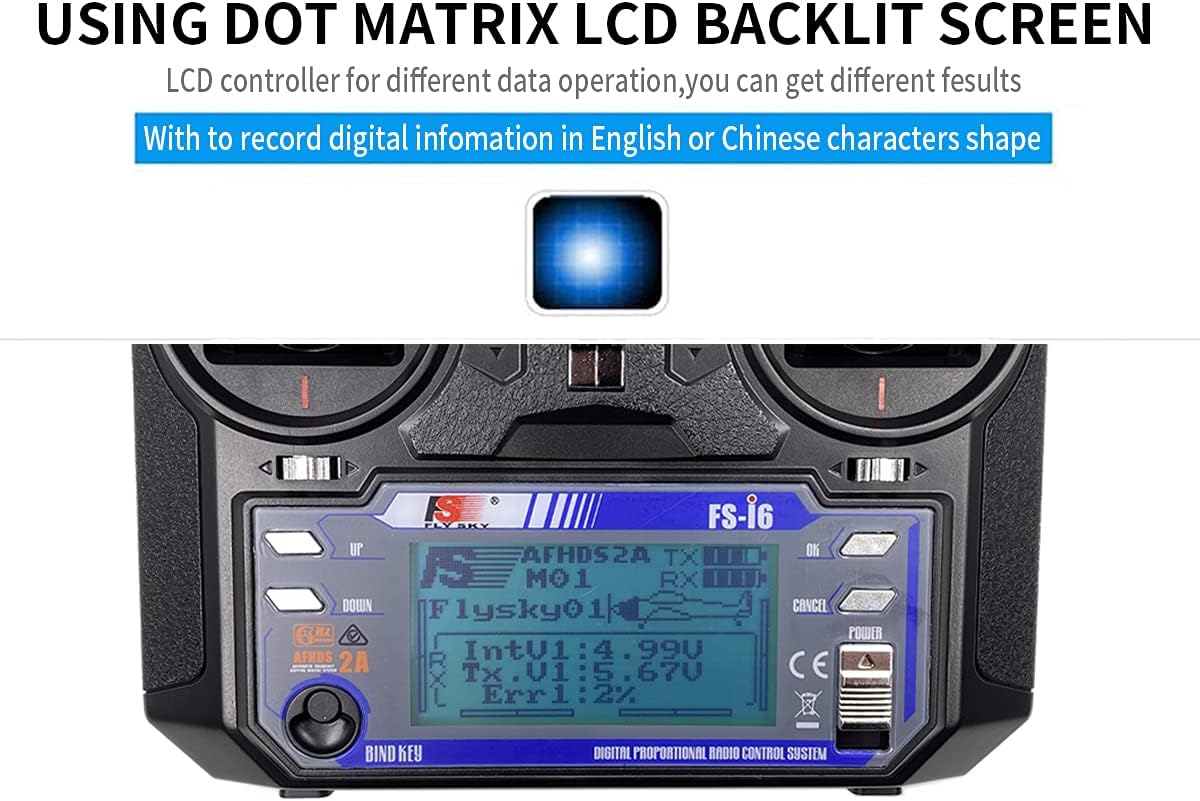

  • Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
  • On-line update:yes
  • Certificate: CE0678,FCC
  • Model Memories: 20
  • Control Range: 500m

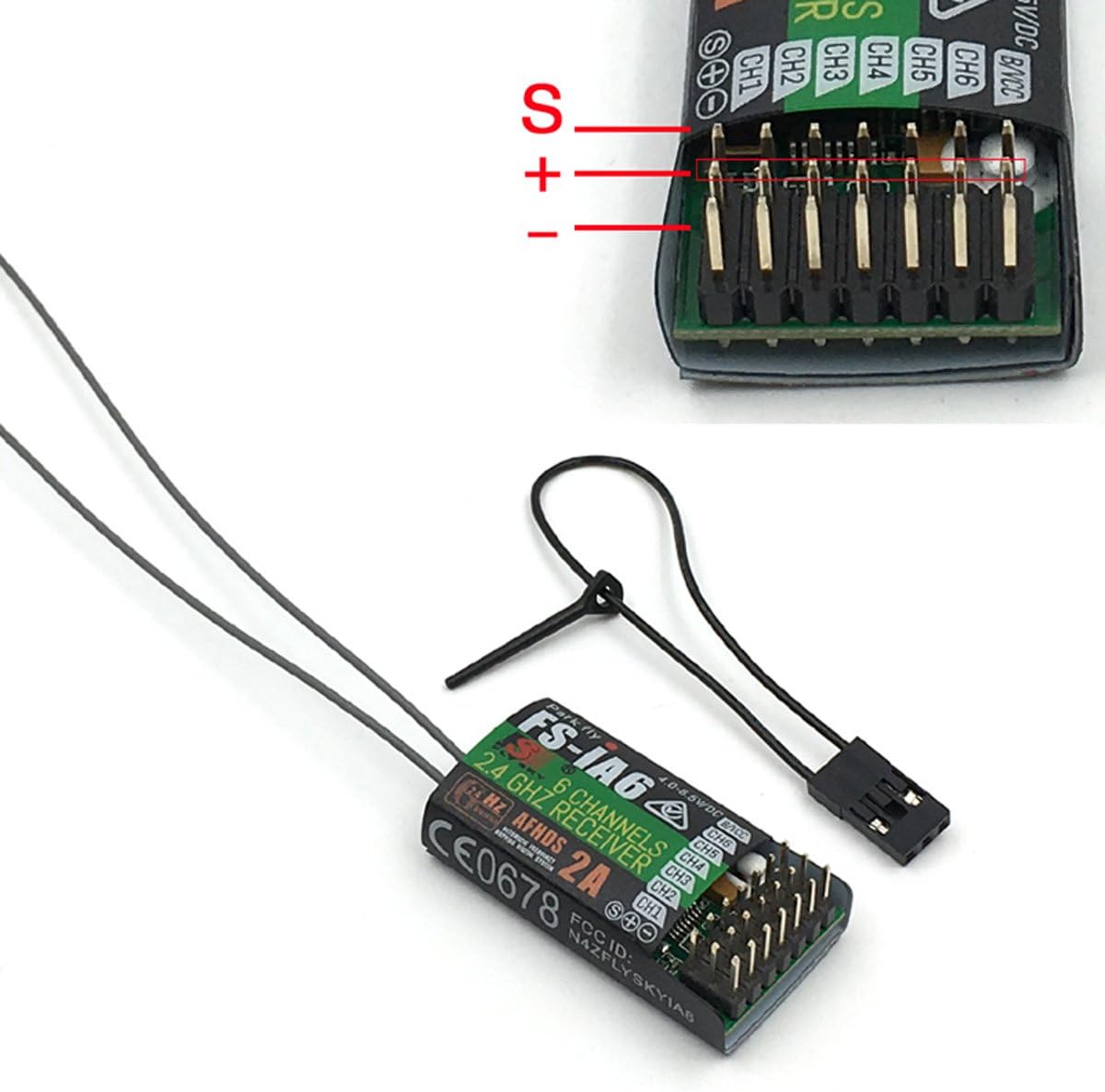

FS-IA6 Receiver Specifications:

  • Channels: 6
  • Frequency Range :2.4-2.48 GHz
  • Number of Band: 140
  • Transmitting Power: not more than 20dBm
  • Receiver Sensitivity:-105dBm
  • 2.4G modes: Automatic frequency second generation digital systems Encoding: GFSK
  • Weight: 6.4g
  • Input Power :4.0-6.5V DC
  • Dimensions: 40.4x21.1x7.35 mm
  • Color: Black
  • i-BUS Interface: No
  • Data Acquisition Interface: No
  • Certification: CE0678,FCC
  • Usage: Suitable for RC Airplane/glider/helicopter
  • Compatible Transmitter: Flysky FS-i6,FS-I6X,FS-I6S

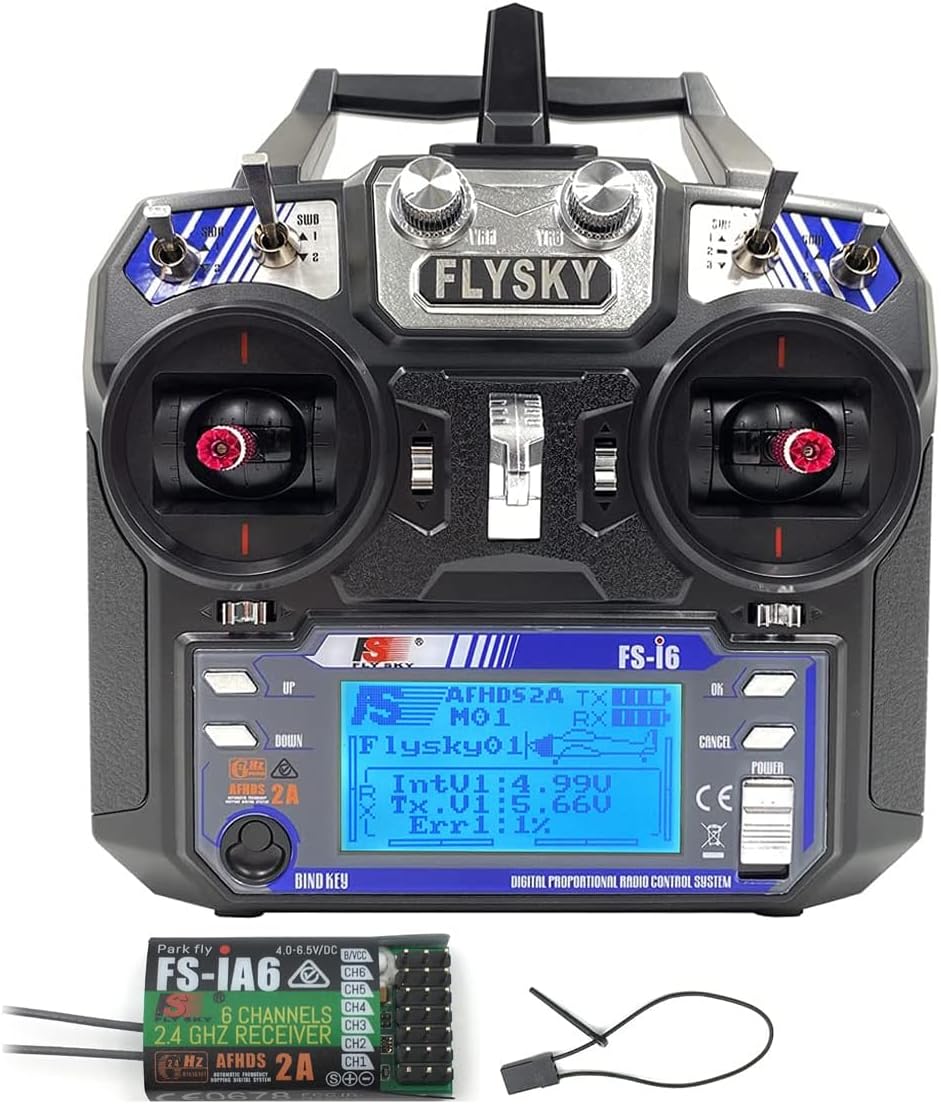

Package Contents:

  • 1 x FS-i6 transmitter
  • 1 x FS-iA6 Receiver
  • 1 x Manual



>
