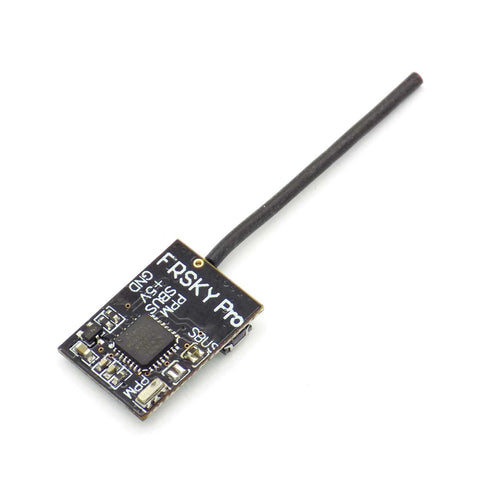

FRSKY Micro Mini 2.4GHz Receiver 8Ch PPM SBUS X9D XJT DJT DFT DHT 1g 12x17mm

Added to Cart
Product Type: Radio Receiver
Brand: SpeedyFPV
Channels: 8 Channels
Frequency: 2.4GHz
Protocol: FRSKY
Receiver Output: CPPM

Bind Step 1 - taking X9D transmitter as an example, choose D8 mode, press and hold the Binding button, and supply power to the receiver, green LED keep light.
Bind Step 2 - Transmitter choose BIND mode, the green reveiver LED turn off which means bind succeed. tranmsitter quit the BIND mode.
Bind Step 3 - Re-supply power to receiver, green LED light keep light which means receiving the signal, LED light blinks fast means no signal or bind fail.

Features:
  • Micro receiver, as small as a coin, only 0.9g
  • With PPM output,SBUS output and binding button

 Specifications:
  • Item name: FRSKY Receiver
  • Modulation: FRSKY(D8)
  • Channel: 8CH
  • PPM Output: Yes
  • SBUS Output: Yes
  • Voltage: 3.5-5V
  • Current: 25MA@5V
  • Control range: 500m+
  • Dimension: 12*17mm
  • Weight: 0.9g (include antenne)
  • Length of antenne: 33mm

 Package Contents:
  • 1x Micro FRSKY Receiver
