Happymodel ES900 Dual Diversity SBUS Radio Receiver 915Mhz

Happymodel ES900 Dual Diversity SBUS Radio Receiver 915Mhz

Added to Cart

Product Type: Radio Receiver
Brand: Happymodel
Frequency: 915MHz
Output: SBUS
Protocol: CRSF

The ES900 DUAL RX ELRS diversity receiver is a 915MHz/868MHz true diversity ExpressLRS receiver designed for long-range control links using the CRSF protocol.

Specifications:

  • Type: 915MHz/868MHz true diversity receiver

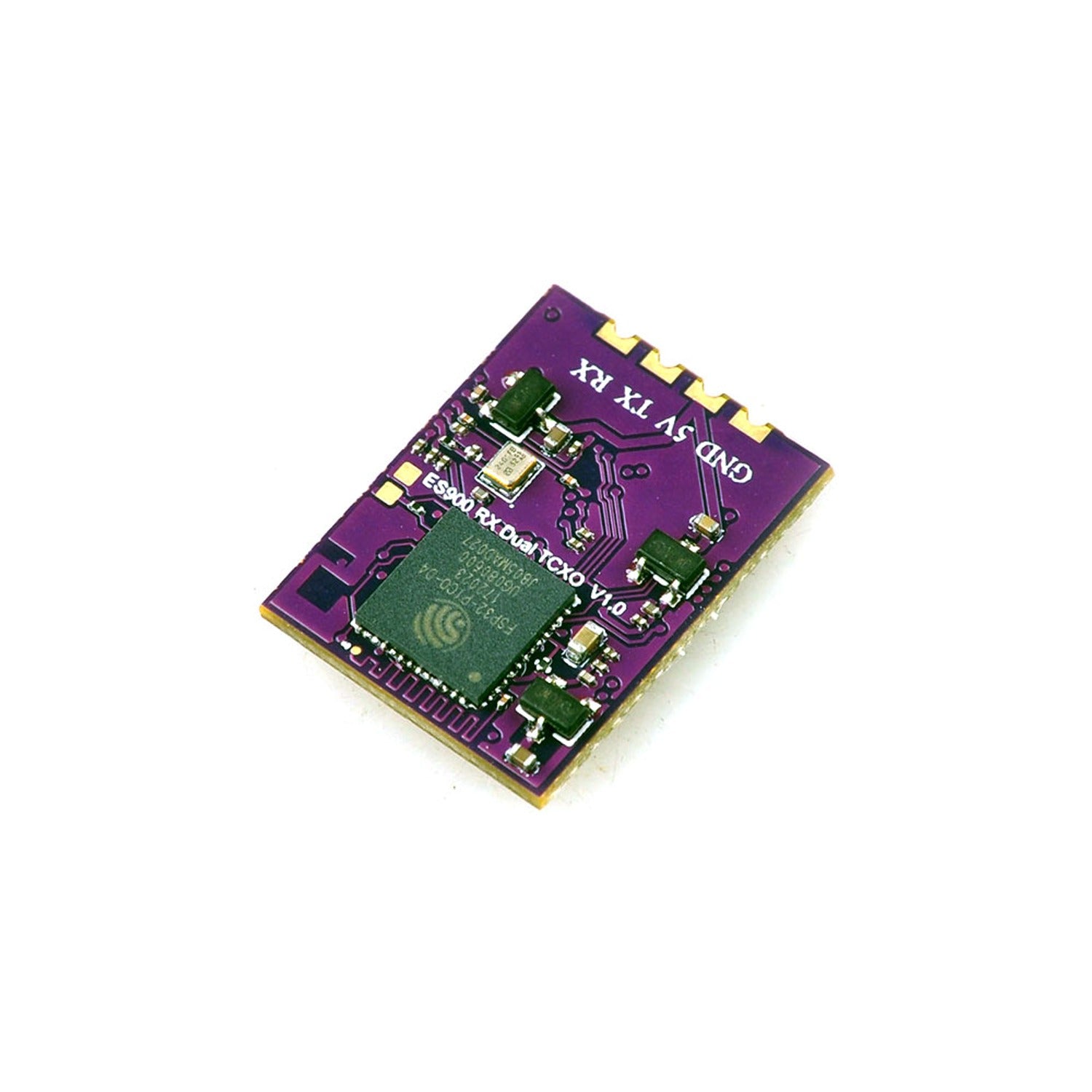

  • MCU: ESP32 PICO D4

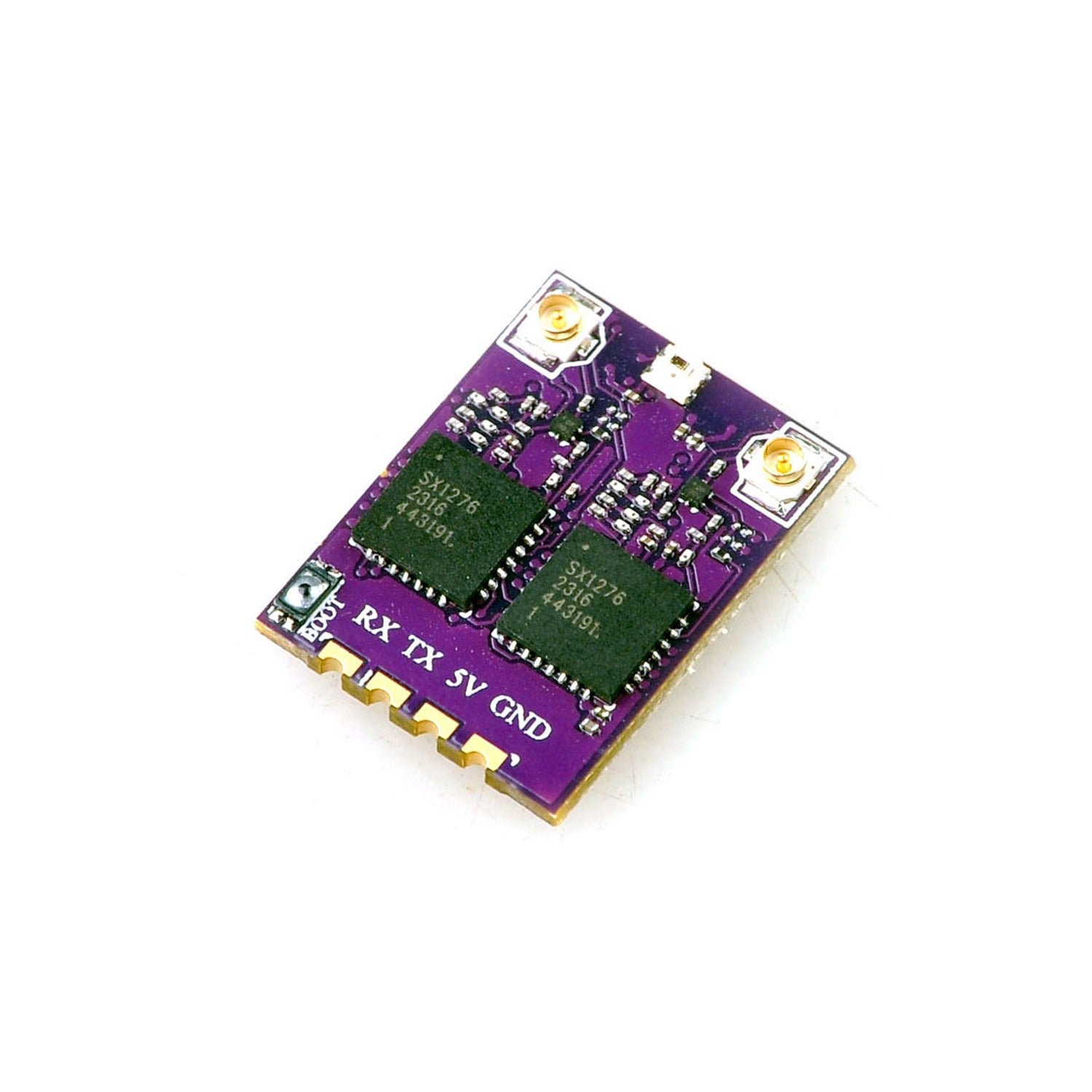

  • RF chipset: Dual SX1276
  • Antenna connector: IPEX MHF 1/U.FL
  • RF Frequency: 915MHz or 868MHz
  • Telemetry power: 17dbm
  • Receiver protocol: CRSF
  • Input voltage: +5V DC @ “5v” pad
  • PCB size: 21.5mm x 16mm
  • Weight: 1.5gram exclude antenna
  • Oscillator: Built-in a TCXO (temperature compensated crystal oscillator)
  • Firmware target: HappyModel ES900 Dual RX


Package Contents:

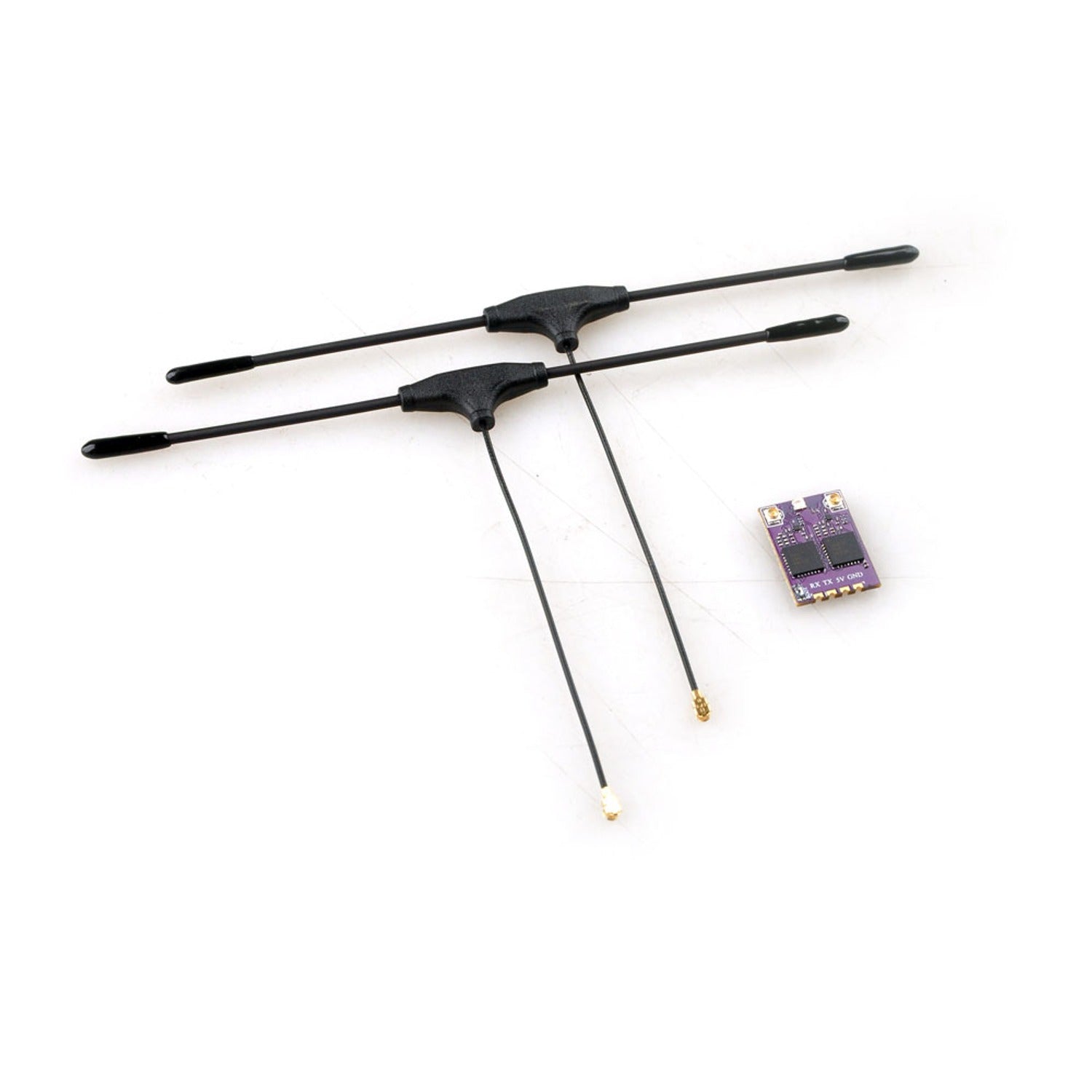

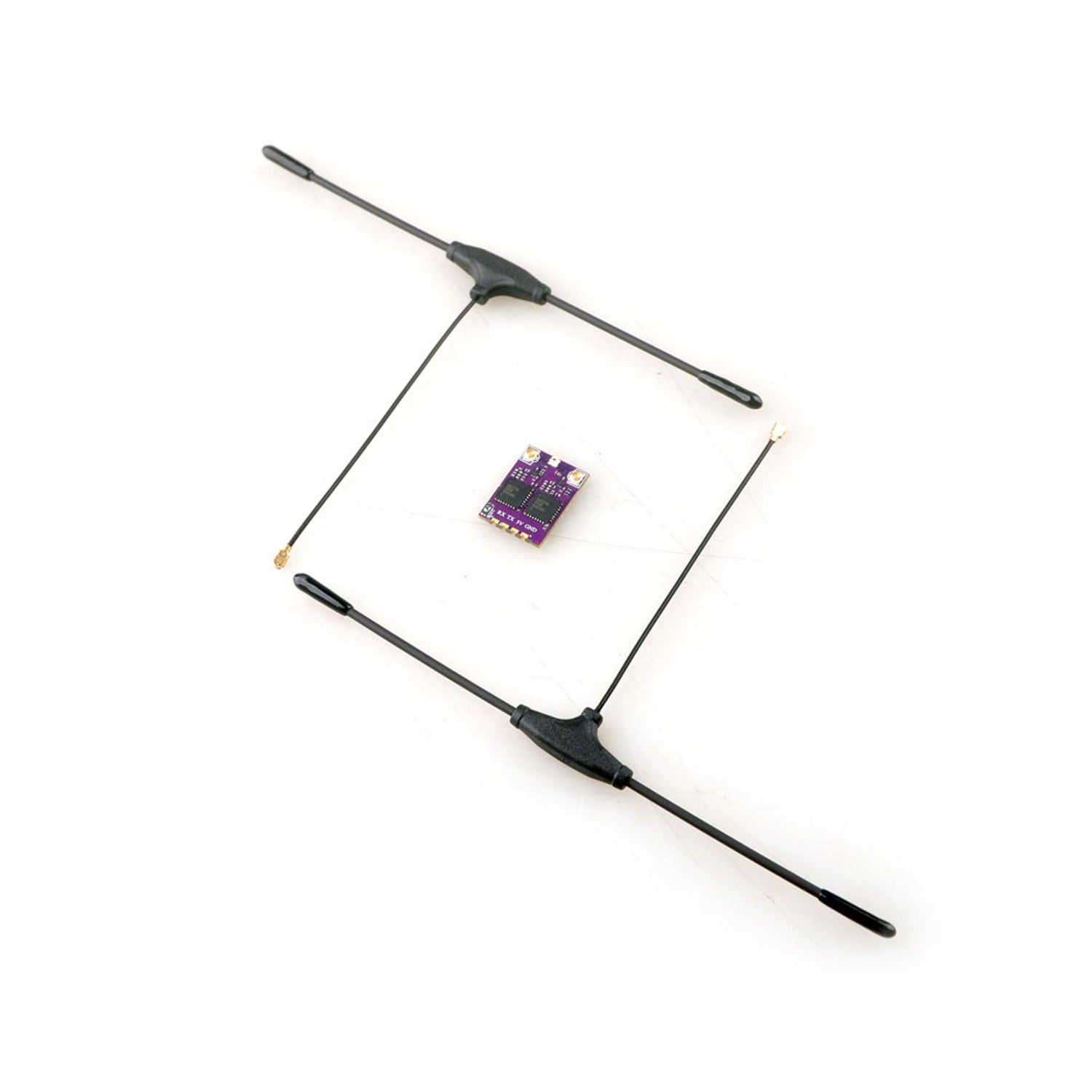

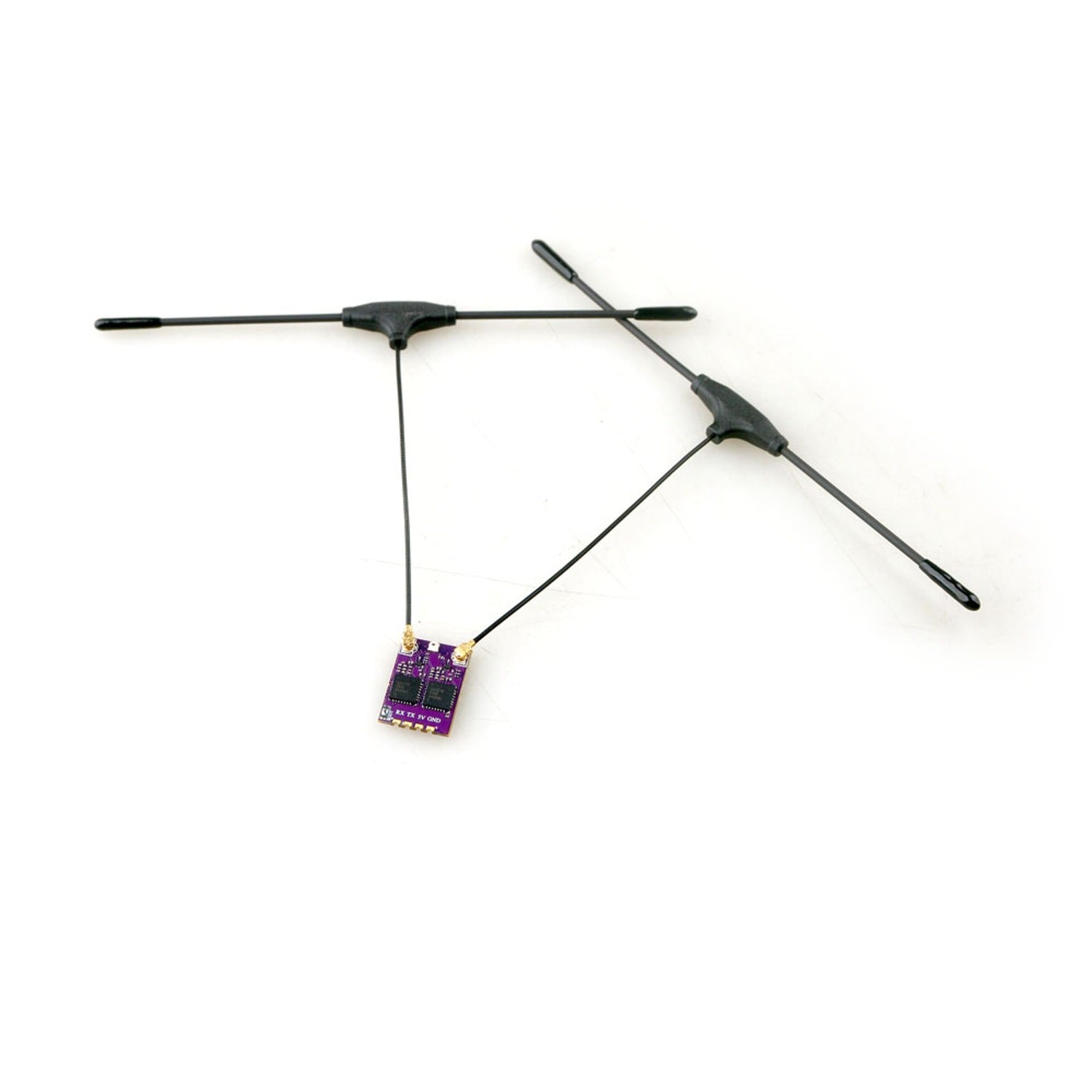

  • 1x ES900 DUAL RX ELRS diversity receiver 915MHz 868MHz long range receiver



>
