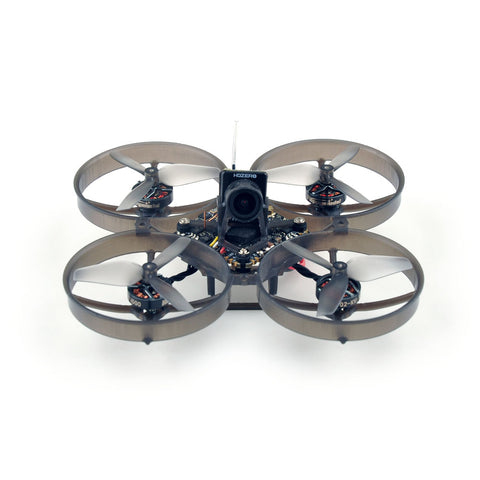

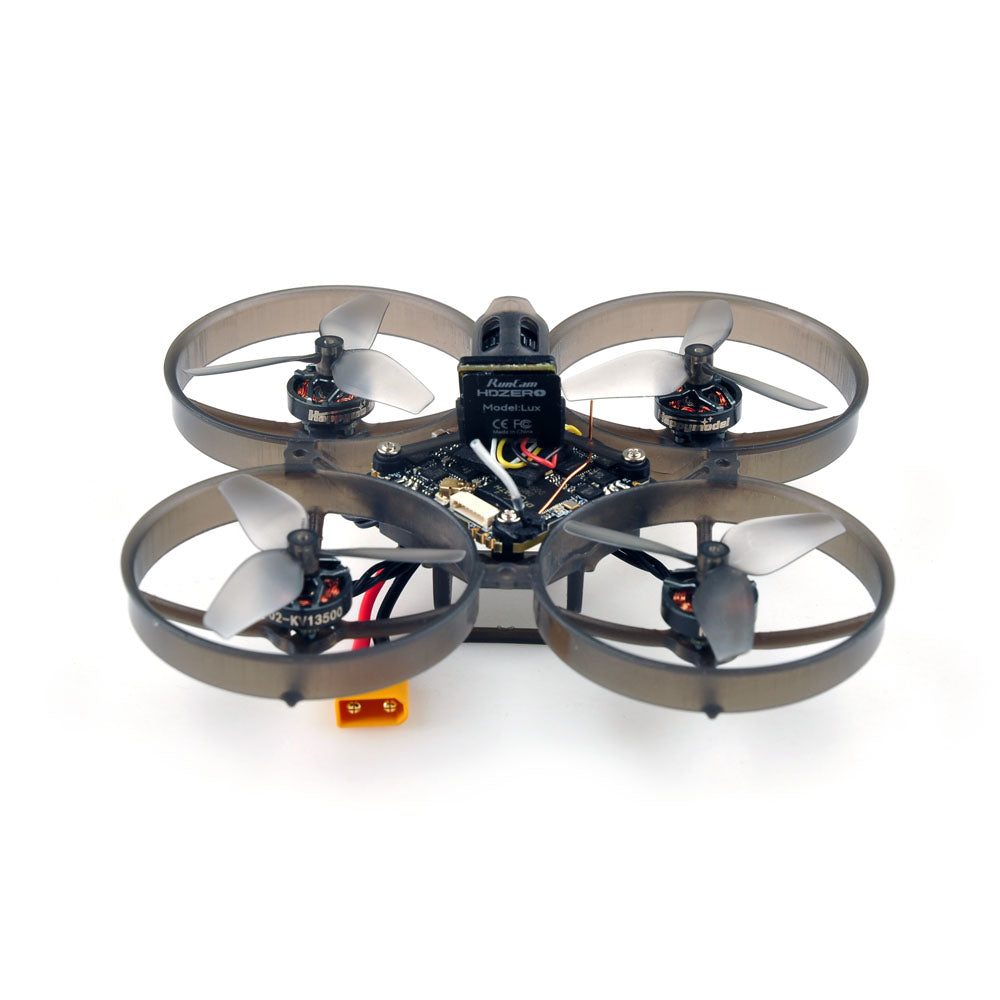

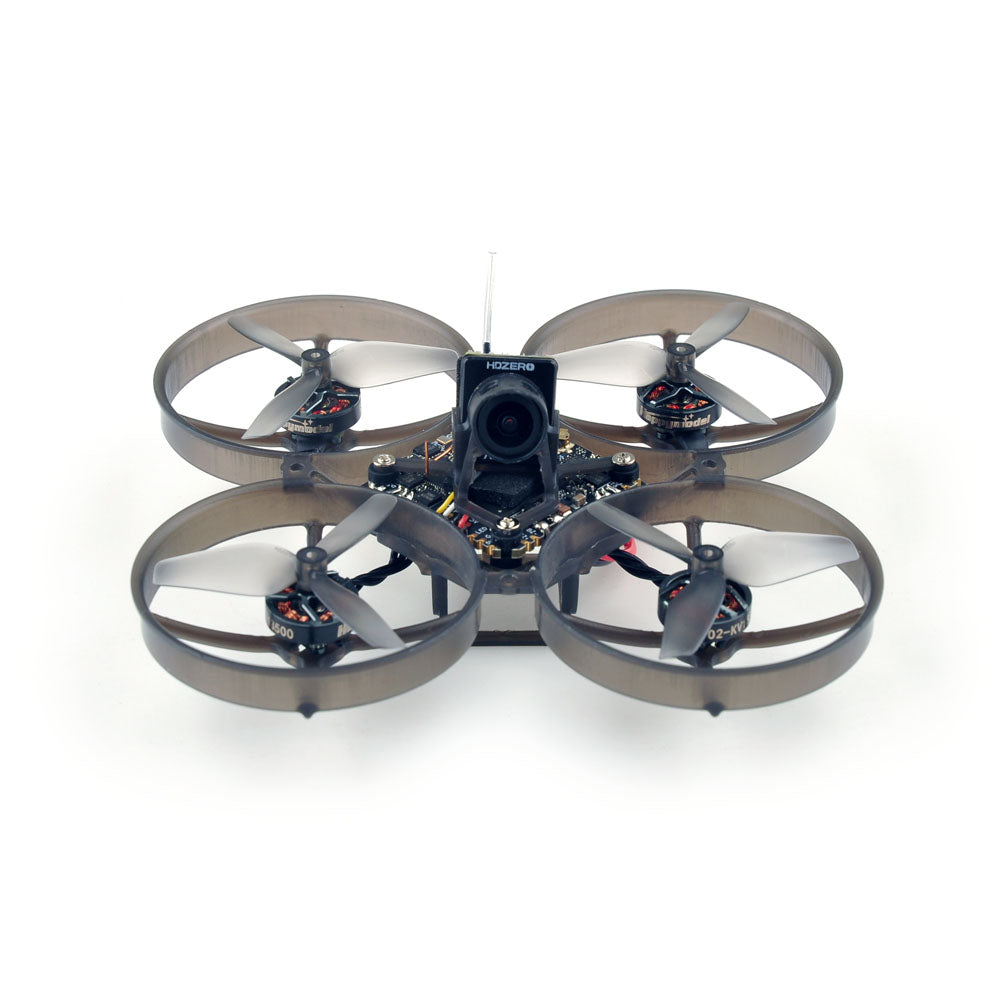

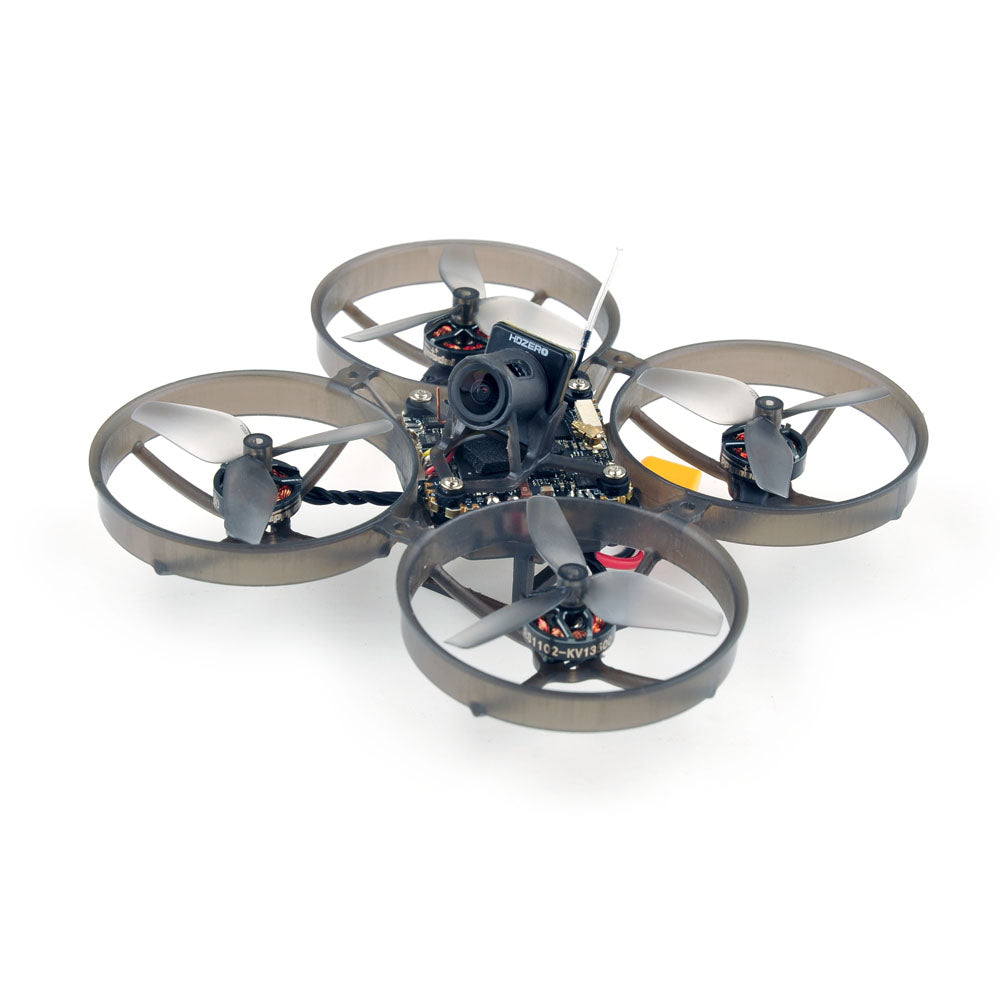

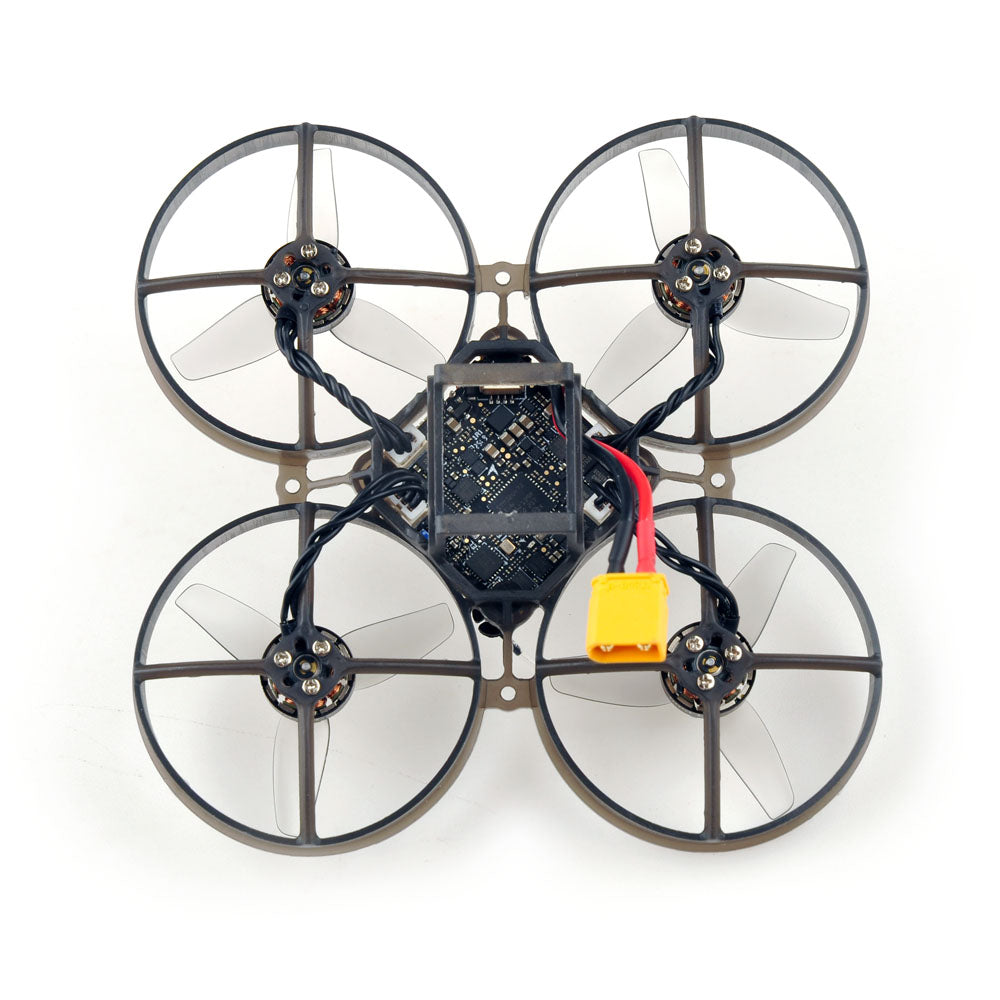

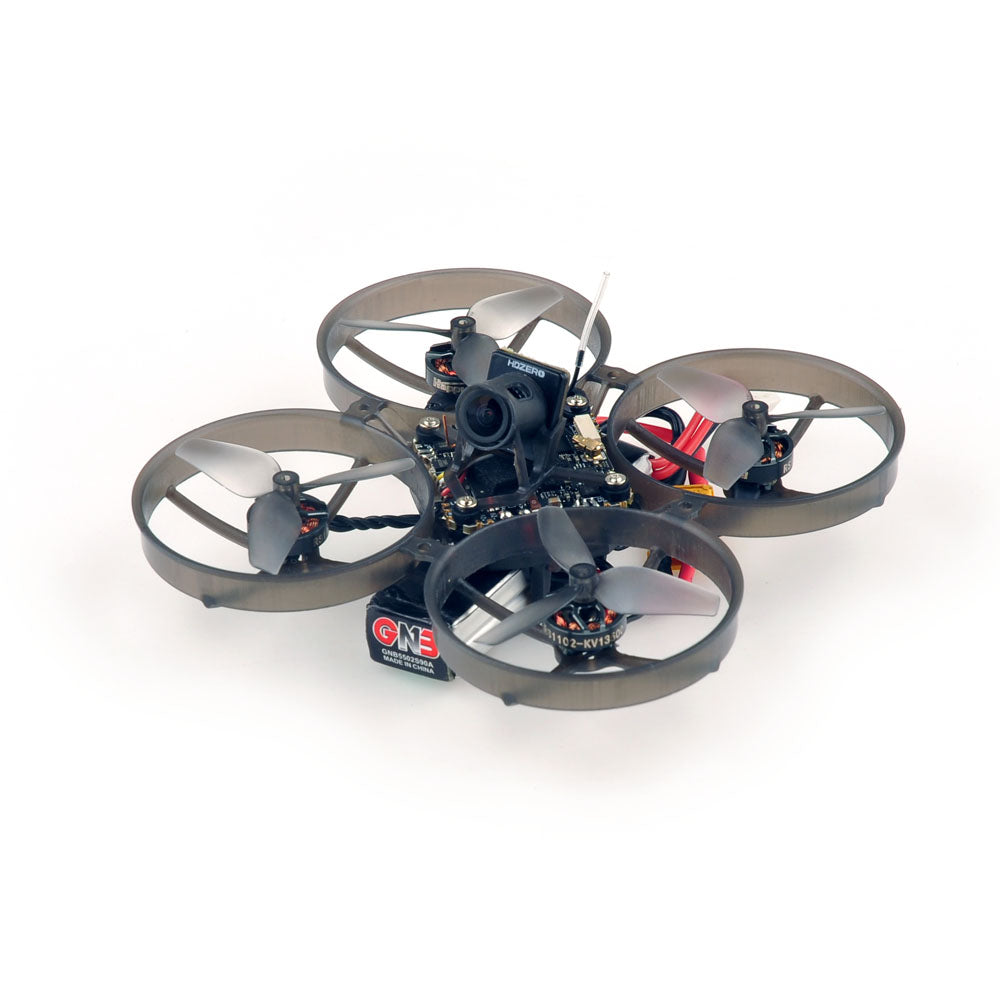

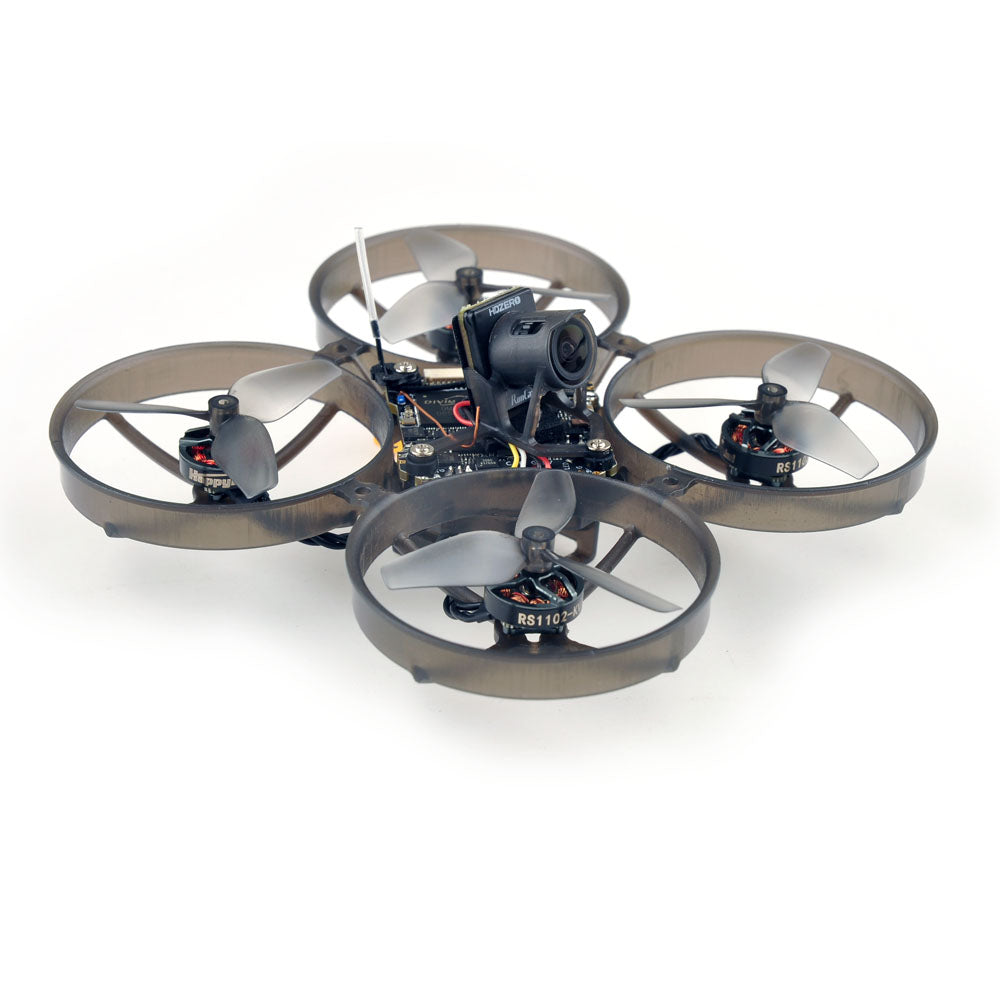

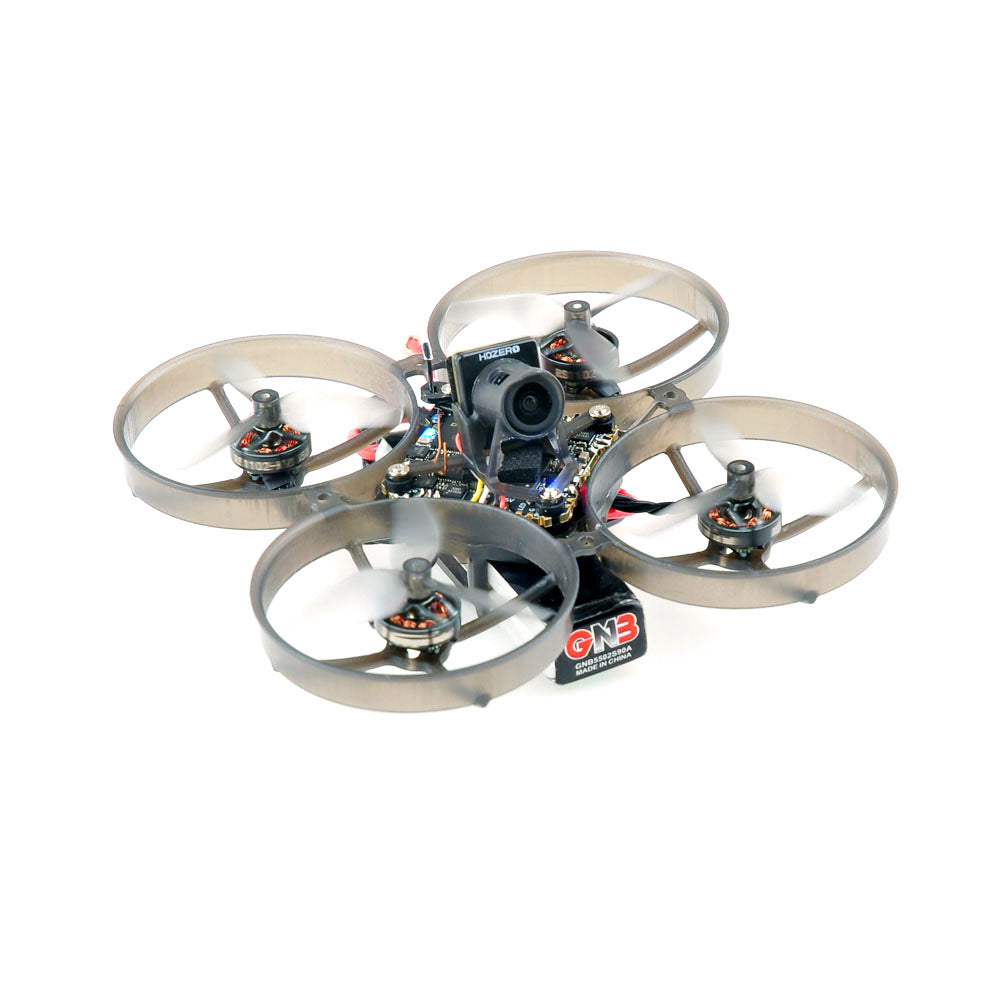

Happymodel M8 Freestyle HDZERO 80mm Digital HD Micro FPV Drone ELRS Receiver BNF

The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.

Drone Features:

• Equipment with the New HDZERO AIO15 5-IN-1 flight controller
• 2S battery support Powerful and Smooth freestyle flying experience
• UART ExpressLRS receiver support stable control link
• Lighter but powerful for backyard FPV
• HDZERO lighter and good quality Camera

Drone Specifications:

• 80mm wheelbase
• 45mm propellers

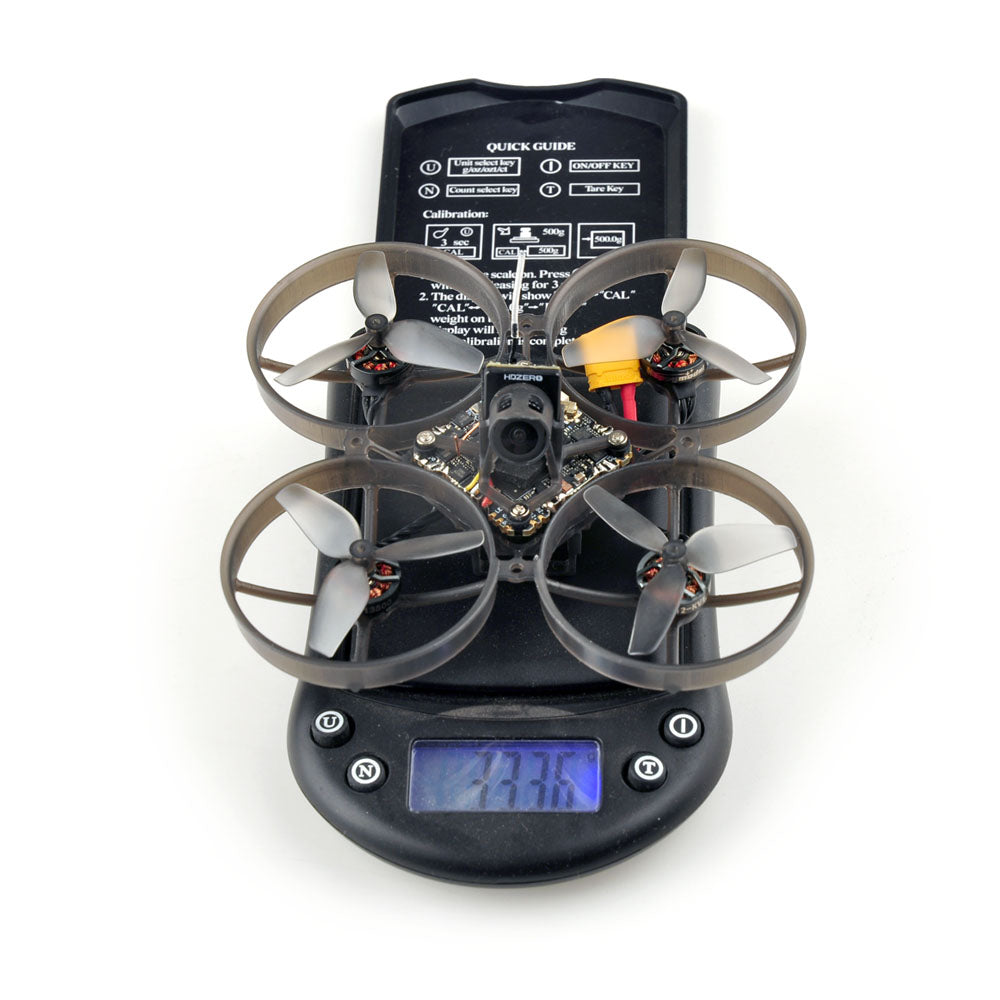

• Weight only 33.5gram
• RS1102 KV13500 high speed motors
• Recommend 2S 550mah battery(Exclude)
• 2.4G ExpressLRS ready
• Flight time: around 5 minutes
• Factory SKU: 5A10099

Drone Features:

• Equipment with the New HDZERO AIO15 5-IN-1 flight controller
• 2S battery support Powerful and Smooth freestyle flying experience
• UART ExpressLRS receiver support stable control link
• Lighter but powerful for backyard FPV
• HDZERO lighter and good quality Camera

Drone Specifications:

• 80mm wheelbase
• 45mm propellers
• Weight only 33.5gram
• RS1102 KV13500 high speed motors
• Recommend 2S 550mah battery(Exclude)
• 2.4G ExpressLRS ready
• Flight time: around 5 minutes
• Factory SKU: 5A10099

Motor Specifications:

• Mode: RS1102 KV13500
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:2mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.*Len):Φ13.5mm*14mm
• Weight(g):2.8g
• No.of Cells(Lipo):1-2S

Propellers Specifications:

• Weight:0.33g
• Material: Poly Carbonate
• Pitch:0.9
• Props Dia:45mm
• Hub Thickness:5mm
• Shaft:1.5mm

Flight Controller Specifications:

• MCU: STM32G473 (170MHz, 512K Flash)
• Gyro: ICM42688
• On board voltage and amperage meters
• Built-in 15A(each) Blue Jay 4-in-1 ESC
• Built-in 5.8G HDZero VTX
• RF output: 25mw/200mW
• Supported channels: R1-R8, F2/F4, L1-L8
• UFL connector (ultra-lite linear antenna included)
• Built-in Serial ExpressLRS 2.4GHz receiver
• Built-in 5V 3A BEC
• Flight controller firmware target: HDZERO_AIO15
• Power supply: 2S battery (6.4v~8.7v)
• Fully compatible with the popular whoop frames
• Board size:31.3×31.3mm with a 25.5×25.5 mounting hole size
• Weight:7.2g (with motor plugs)

ESC Specifications:

• Power supply: 2S LiPo/LiPo HV
• Current: 15A continuous,18A peak (3 seconds)
• Support BLHeli_S Bluejay firmware
• Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
• Default protocol: DSHOT300

ELRS 2.4GHz Receiver Specifications:

• Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
• RF Frequency: 2.4GHz
• Antenna: Pre-soldered enameled copper wire 31mm length
• Telemetry output Power: <12dBm

LUX Camera Specifications:

• HDZero Lux Camera
• Sensor size: 1/2 inch
• Resolution: 720p60 4:3 and 16:9
• FOV: D:155° H:126° V:94°(4:3)
• FOV: D:145° H:126° V:70°(16:9)
• WDR

Package Contents:

• 1x M8 Freestyle HDZERO 80mm Digital HD Micro FPV Whoop Drone
• 1x Screw Driver
• 1x Manual Link
