Happymodel Moblite7 Walksnail V3 1S Whoop Drone BNF
Happymodel Moblite7 Walksnail V3 1S Whoop Drone BNF

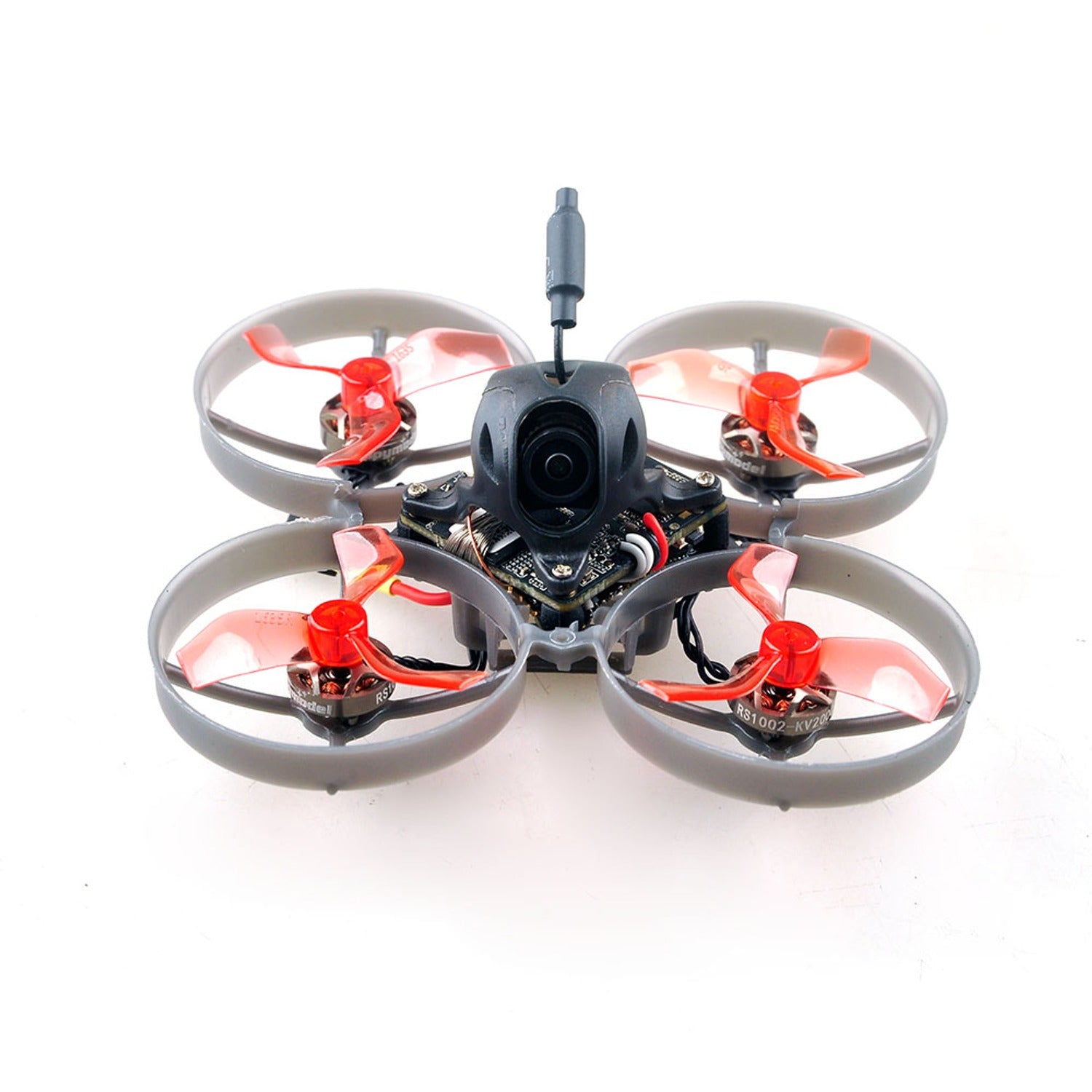

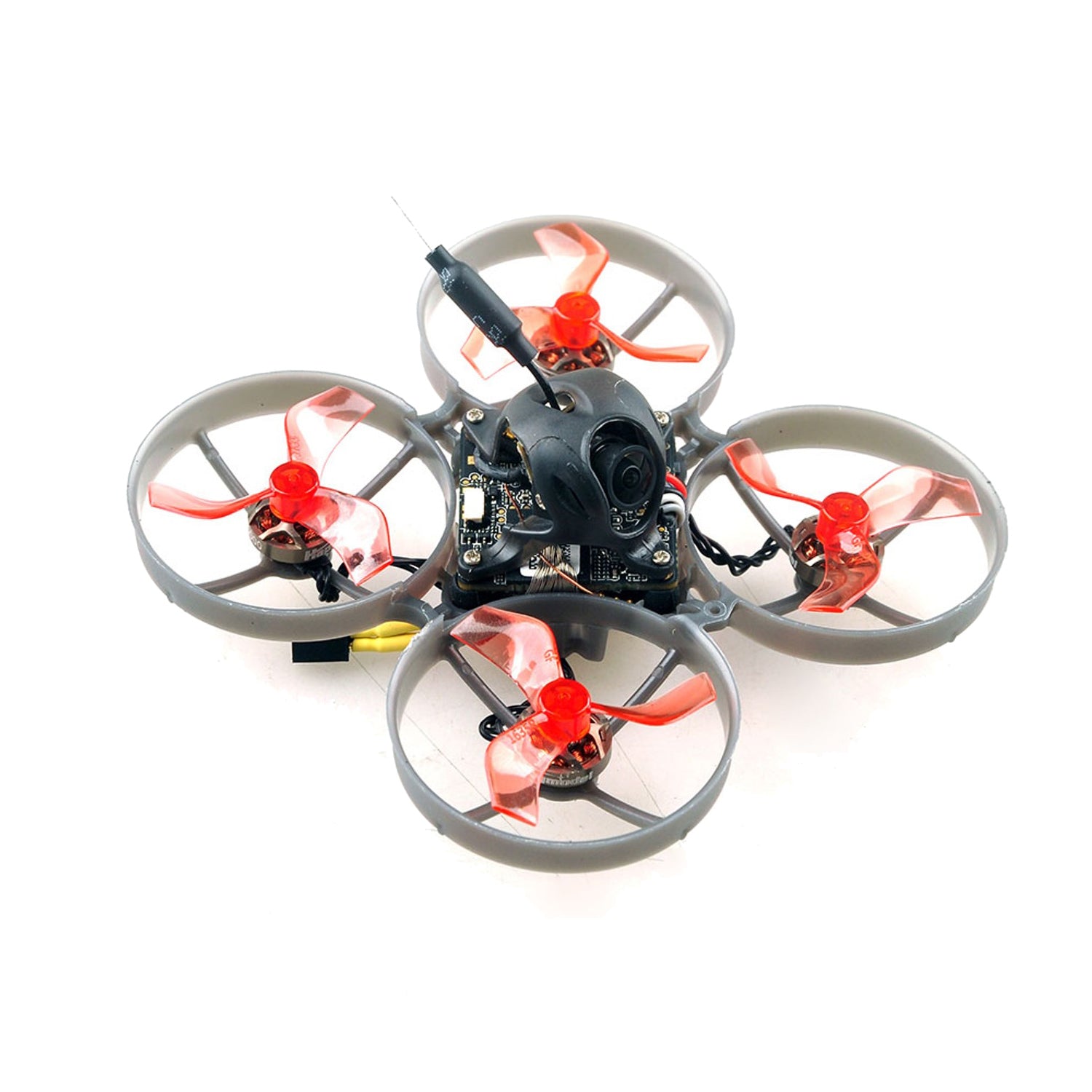

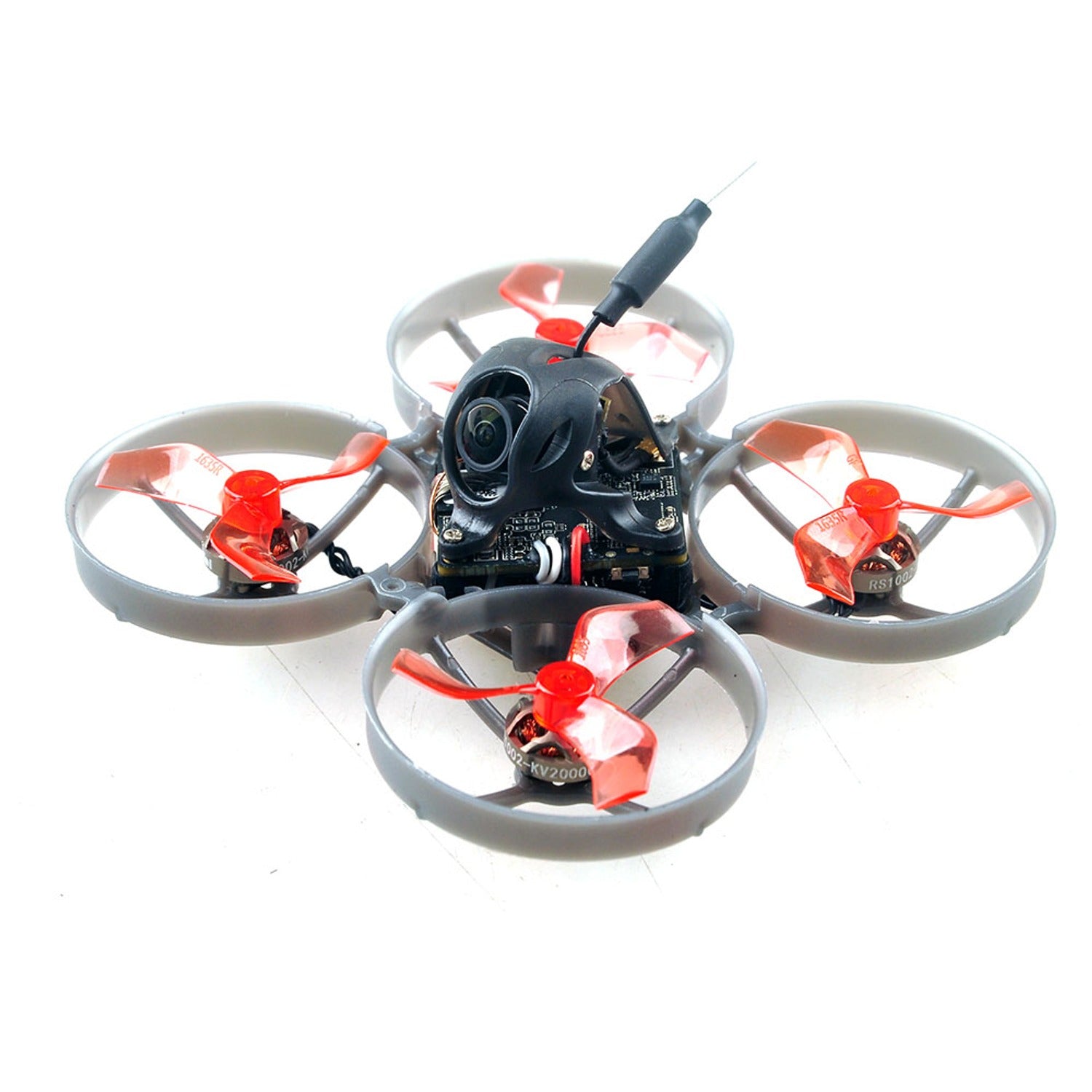

The Happymodel Moblite7 Walksnail V3 is a 75mm 1S digital HD brushless whoop built around the SuperX HD ELRS AIO flight controller and Walksnail Avatar video system. It supports 1S LiPo or LiHv batteries and uses a GNB A30 battery plug.
Specifications:
- Frame wheelbase: 75mm
- Weight: 34.5 gram without battery
- Size: 98mm*98mm*48mm
- UART ELRS v3.0 ready: Yes
- Battery compatibility: 1S Lipo battery or Lihv battery

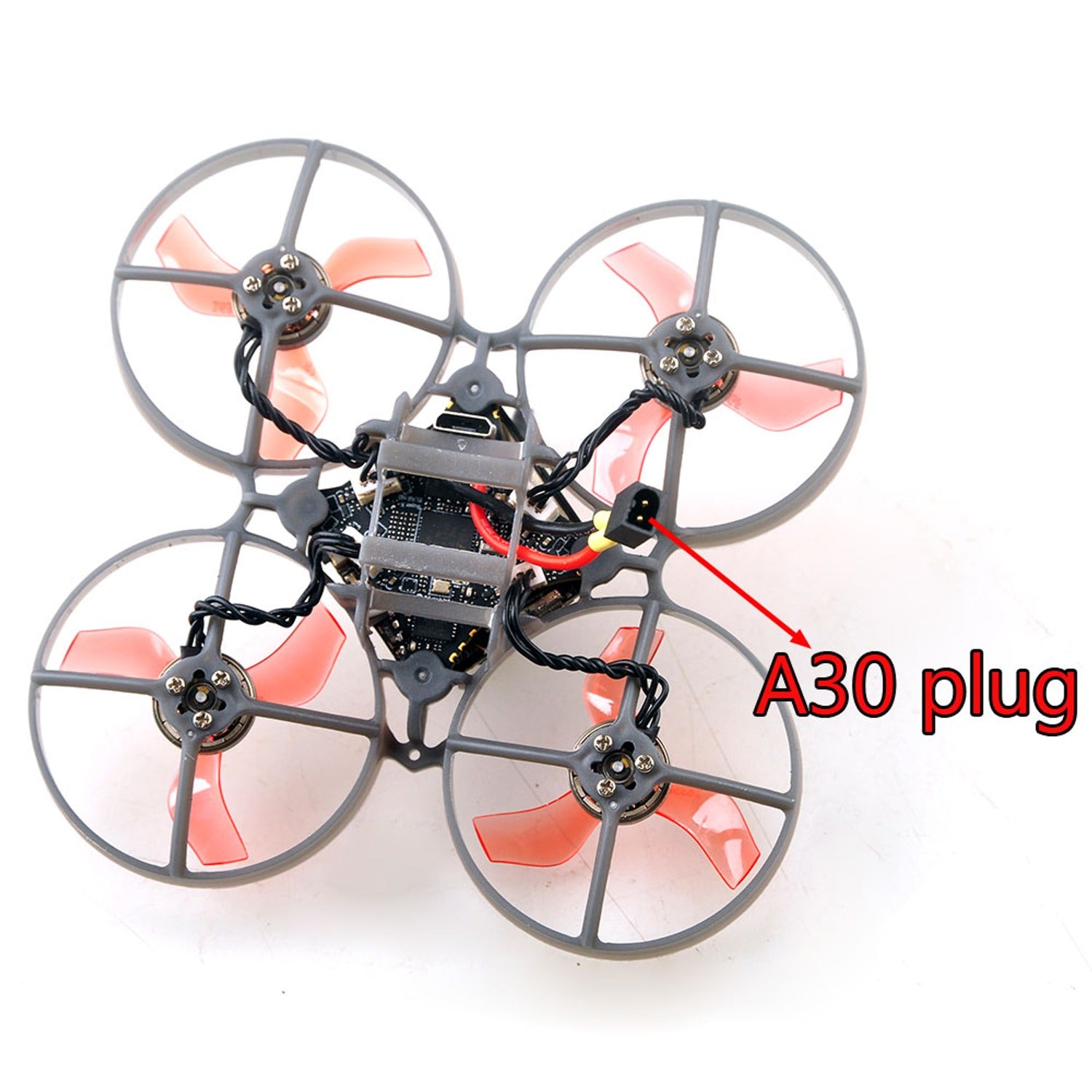

- Battery Plug: GNB A30
- Onboard blackbox ready: Yes
- Flight controller: SuperX HD ELRS
- Betaflight firmware ready: Betaflight 4.4.2
- Firmware target: CRAZYBEEF4DX
- MCU: STM32F411CEU6 (100MHz, 512K FLASH)
- Sensor: BMI270 or ICM42688P (SPI connection)
- Power supply input: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
- ESC: Built-in 12A(each) Blheli_S 4in1 ESC
- ESC protocol: Dshot300
- Receiver: Built-in UART elrs receiver, elrs v3.0 ready, support WIFI and pass-through firmware update
- Bluejay ESC Firmware ready: Yes
- BEC: Built-in 5V 1A BEC
- Voltage detection: Built-in
- OSD chip: No betaflight analog osd chip
- Onboard 4in1 ESC power supply: 1-2S LiPo/LiPo HV
- ESC current: 12A continuous peak 15A (3 seconds)
- ESC configurator support: Support ESC-Configurator and BLHELI_S Suite configurator
- ESC factory firmware: Z-H-30 - Bluejay, 0.19, 48kHz
- ESC default protocol: DSHOT300
- Receiver type: Onboard UART ExpressLRS 2.4GHz Receiver
- RF Frequency: 2.4GHz
- Receiver antenna: enameled copper wire 31mm length
- Telemetry output Power: <12dBm
- Receiver protocol: CRSF
- Receiver default firmware version: ExpressLRS V3.0.1
- Receiver hardware note: The same hardware with Happymodel EP1 receiver
- Receiver firmware update methods: ExpressLRS configurator or WIFI or Betaflight pass-through
- Motor model: 1002 20000KV
- Motor configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Shaft Diameter: Φ1.5mm
- Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
- Motor weight: 2.5g
- Motor cells: 1S only
- Propeller: Gemfan 1610-2 Bi-blades
- Propeller weight: 0.24g
- Propeller material: PC
- Propeller pitch: 1 inch
- Props Dia: 40mm
- Center Hole Dia: 1.5mm
- VTX model: Avatar mini 1s module
- VTX communication frequency: 5.725-5.850 GHz
- VTX transmitter power (EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm
- VTX I/O interface: JST1.O*6(Power in)JST1.O*4(USB)
- VTX mounting holes: 25.5*25.5 mm
- VTX dimensions: 33*33*6.5 mm
- VTX storage: 8G
- VTX recording: 1080p/720p
- VTX weight: 6.8 g
- VTX operating temperature: -20-40℃
- VTX channels: 8
- VTX wide power input: 3.1V-5V
- VTX supported FC system: Betaflight
- VTX OSD: Canvas mode
- VTX bitrate: 25mbps / 50mbps
- VTX latency: Average delay 22ms
- VTX antenna connector: IPEX
- Camera model: Avatar nano
- Camera image sensor: 1/2.7”Inch
- Camera resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps
- Camera ratio: 16/9 4/3
- Camera lens: 2.1mm
- Camera FOV: 170°
- Camera aperture: F2.0
- Camera shutter: Rolling shutter
- Camera minimum illumination: 0.001Lux
- Camera weight: 3.5g
- Camera dimensions: 14*14*17mm
- Camera coaxial cable: 45mm

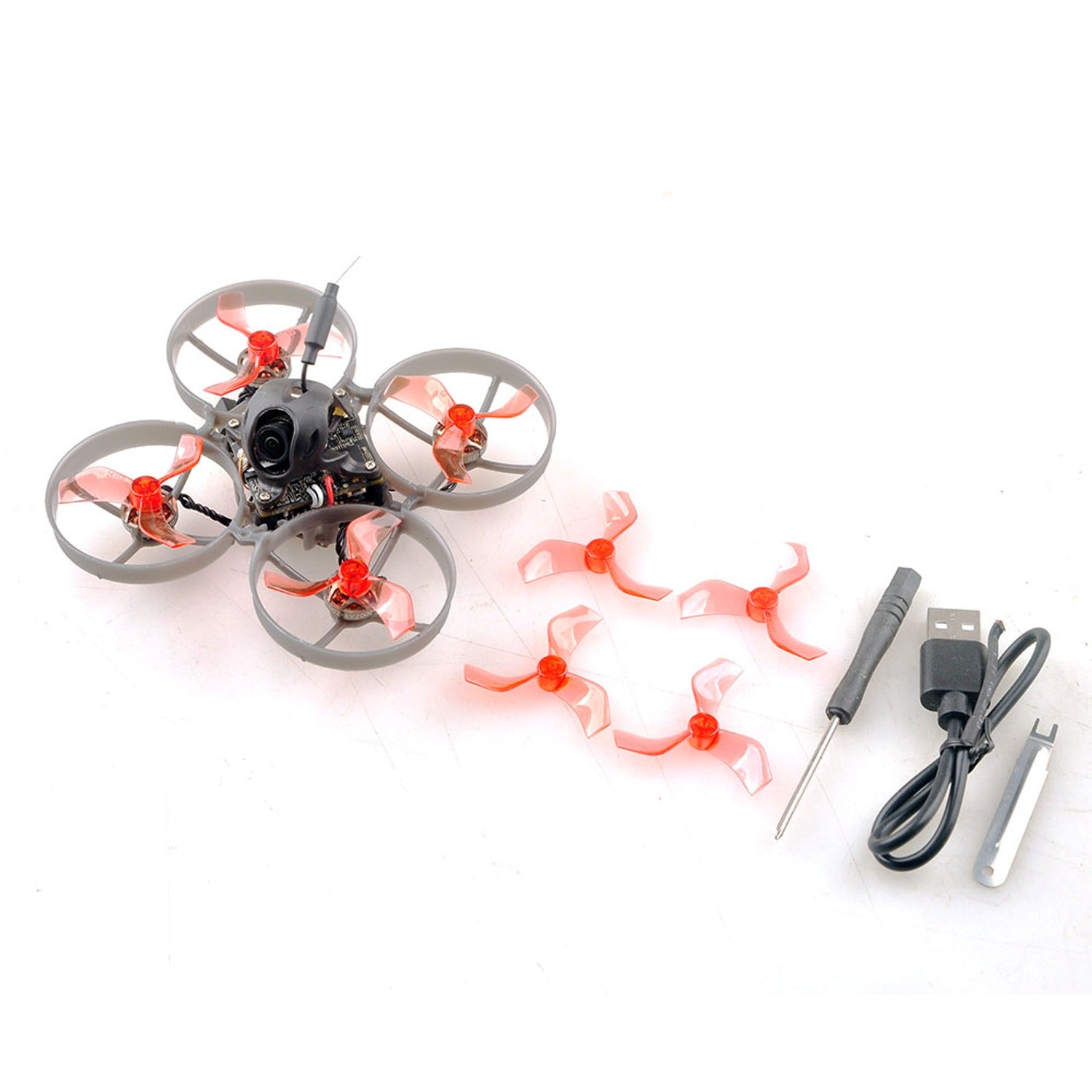

Package Contents:
- 1x Mobula7 v4 75mm frame +Canopy
- 1x SuperX HD ELRS AIO flight controller
- 4x Happymodel 1002 KV20000 Unibell brushless motor
- 1x Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
- 1x Walksnail Avatar nano HD camera
- 1x Walksnail Avatar mini 1s tx module
- 1x Spare Canopy
- 1x Propeller disassemble tool
- 1x Screw driver
