Happymodel Mobula6 V3 1S 65mm Ultralight Micro FPV Drone (BNF)
Happymodel Mobula6 V3 1S 65mm Ultralight Micro FPV Drone (BNF)

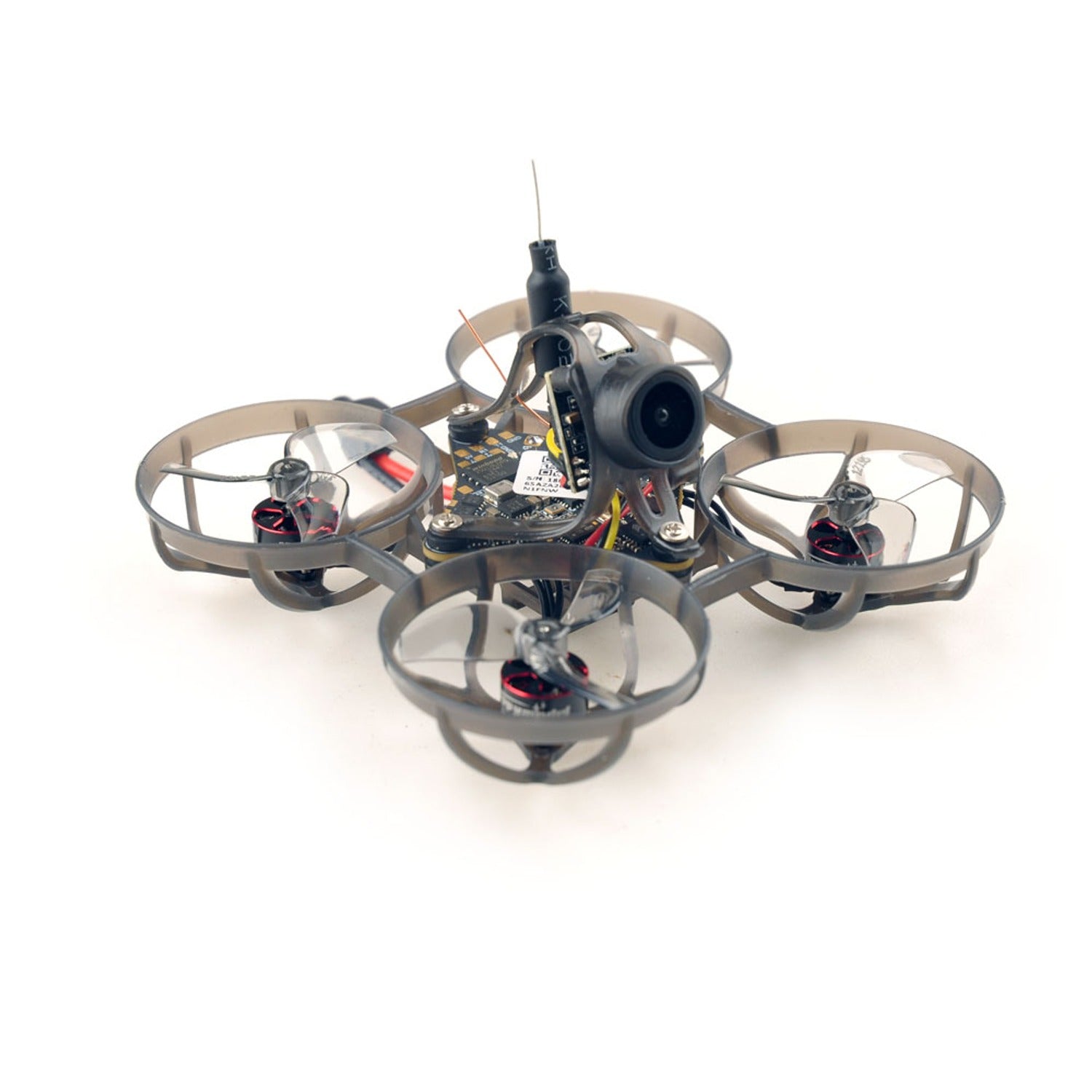

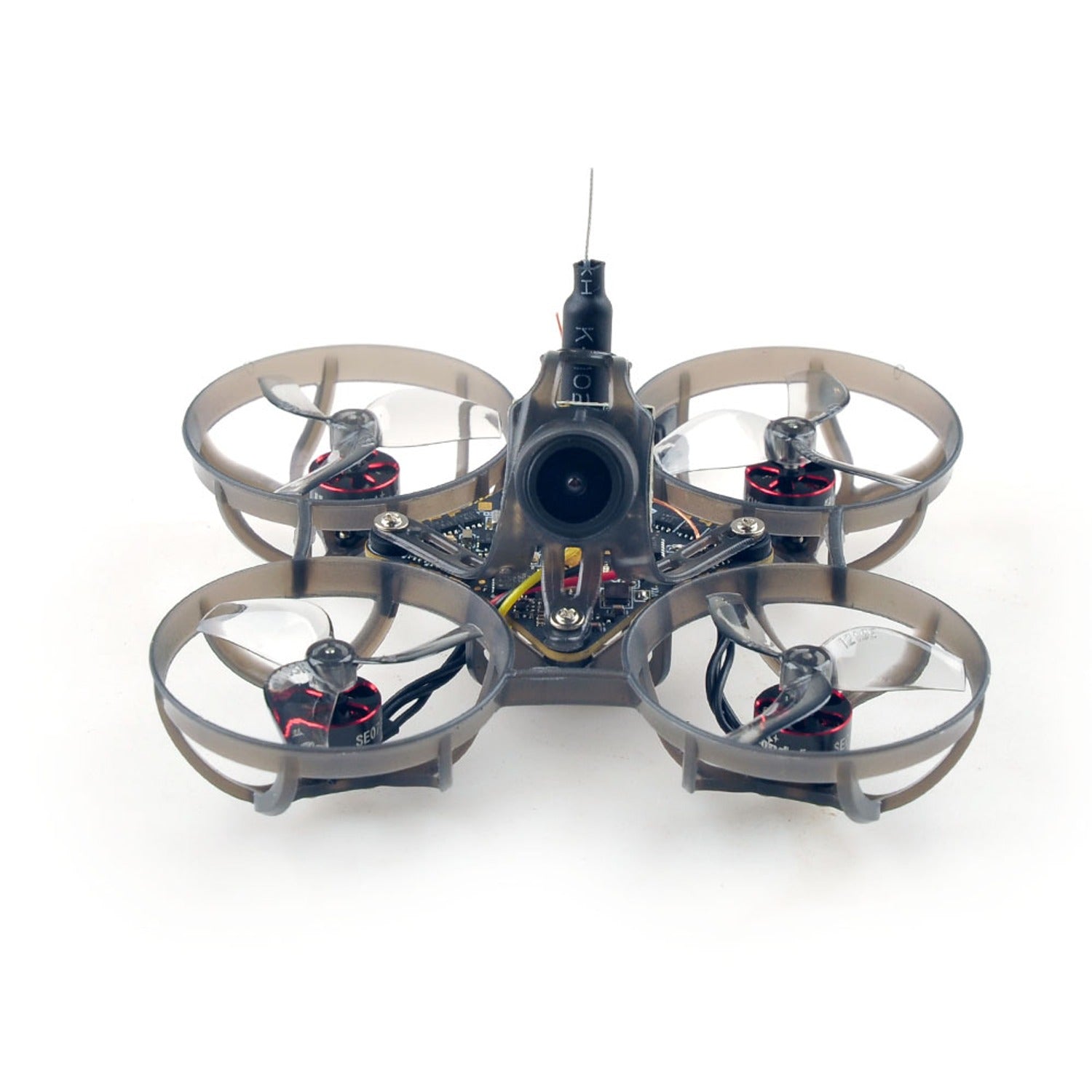

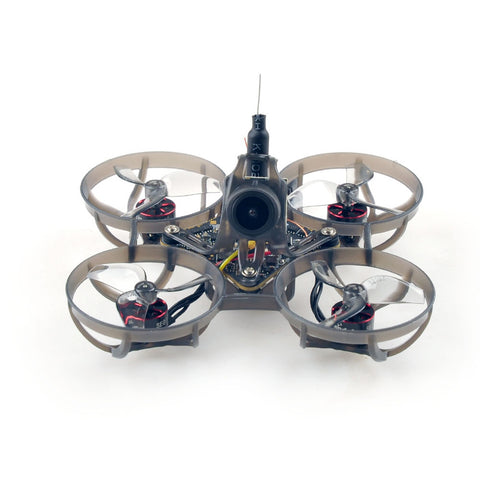

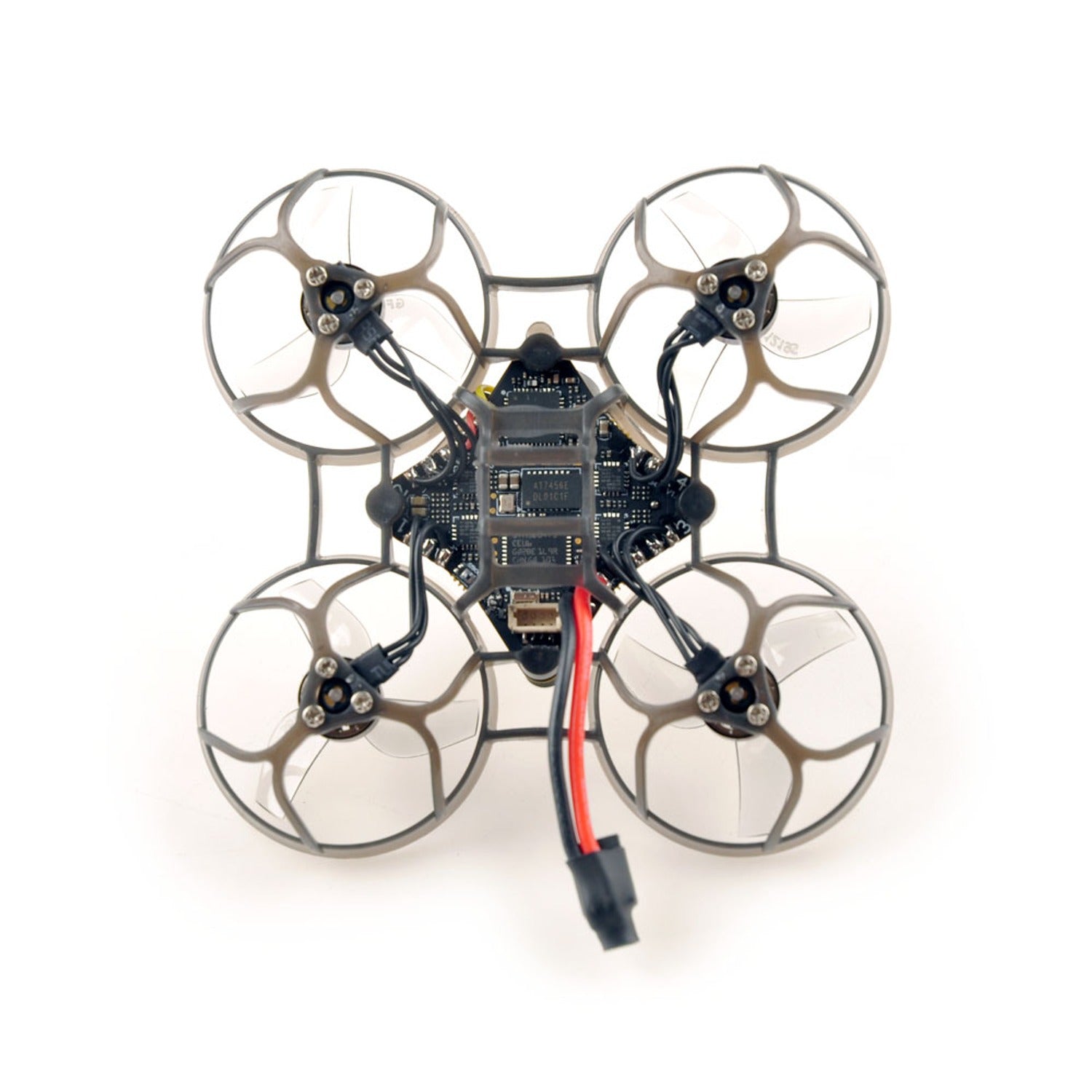

The Happymodel Mobula6 V3 1S 65mm ultra light micro FPV Whoop is a 1S 65mm brushless whoop featuring a CrazybeeG473 AIO flight controller, built-in Serial ELRS receiver, Nano5 1200TVL camera, and onboard 5.8G VTX.
This model uses SE0702 KV28000 motors and supports openVTX output power from 25mw to 400mw.
Specifications:
- Brand Name: Happymodel
- Item Name: Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop
- Wheelbase: 65mm
- Size: 81mm*81mm*37mm
- Weight: 17.6g
- Receiver option: 2.4GHz ExpressLRS Serial receiver

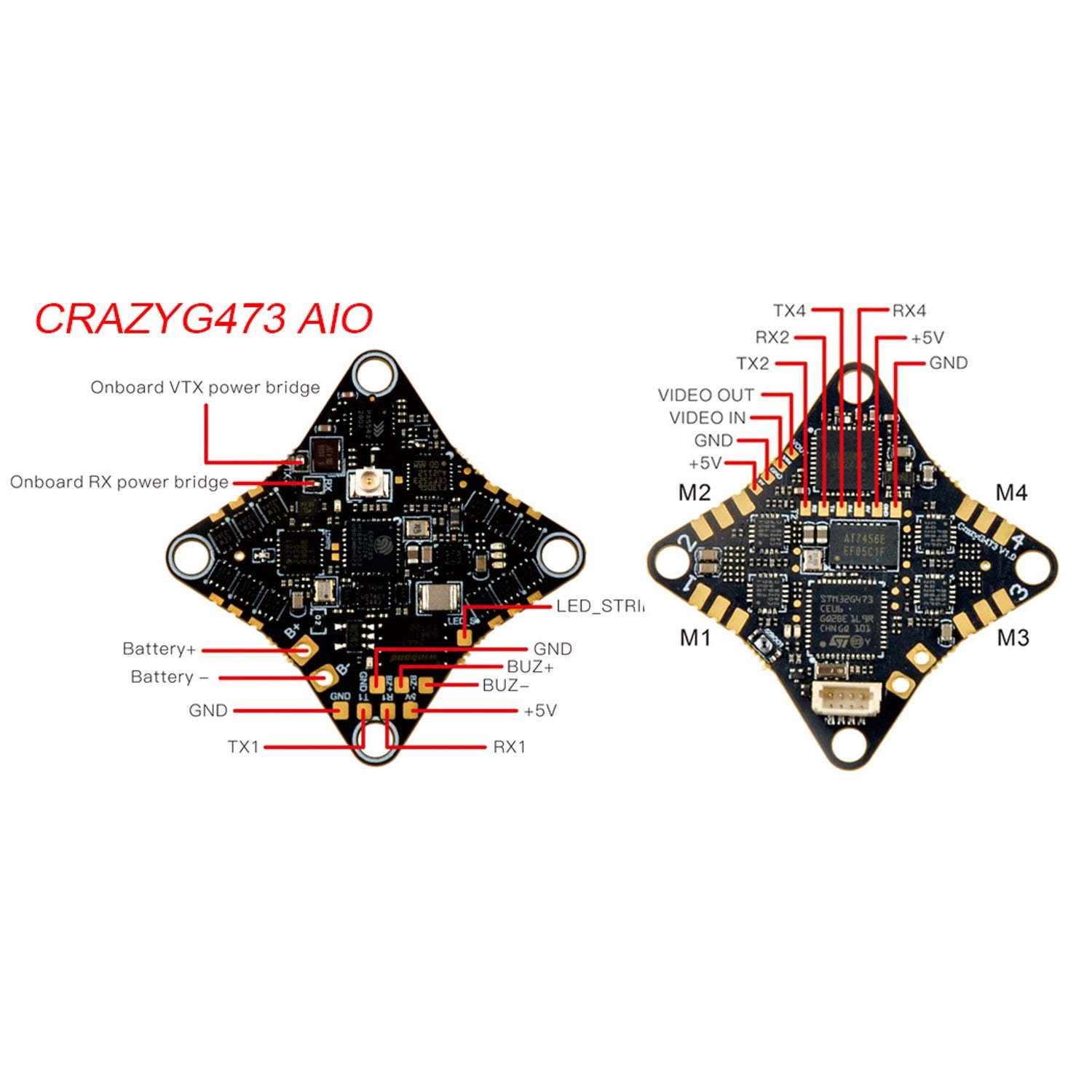

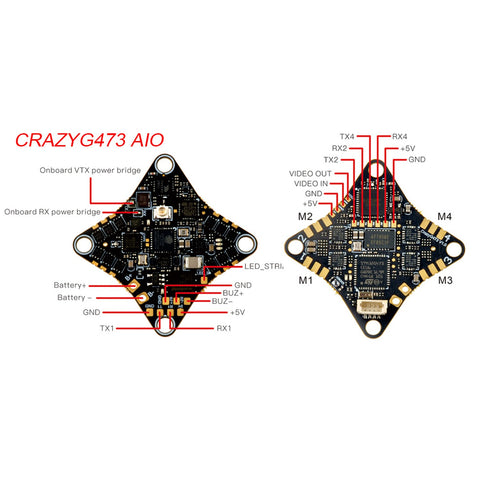

- Flight controller: CrazybeeG473

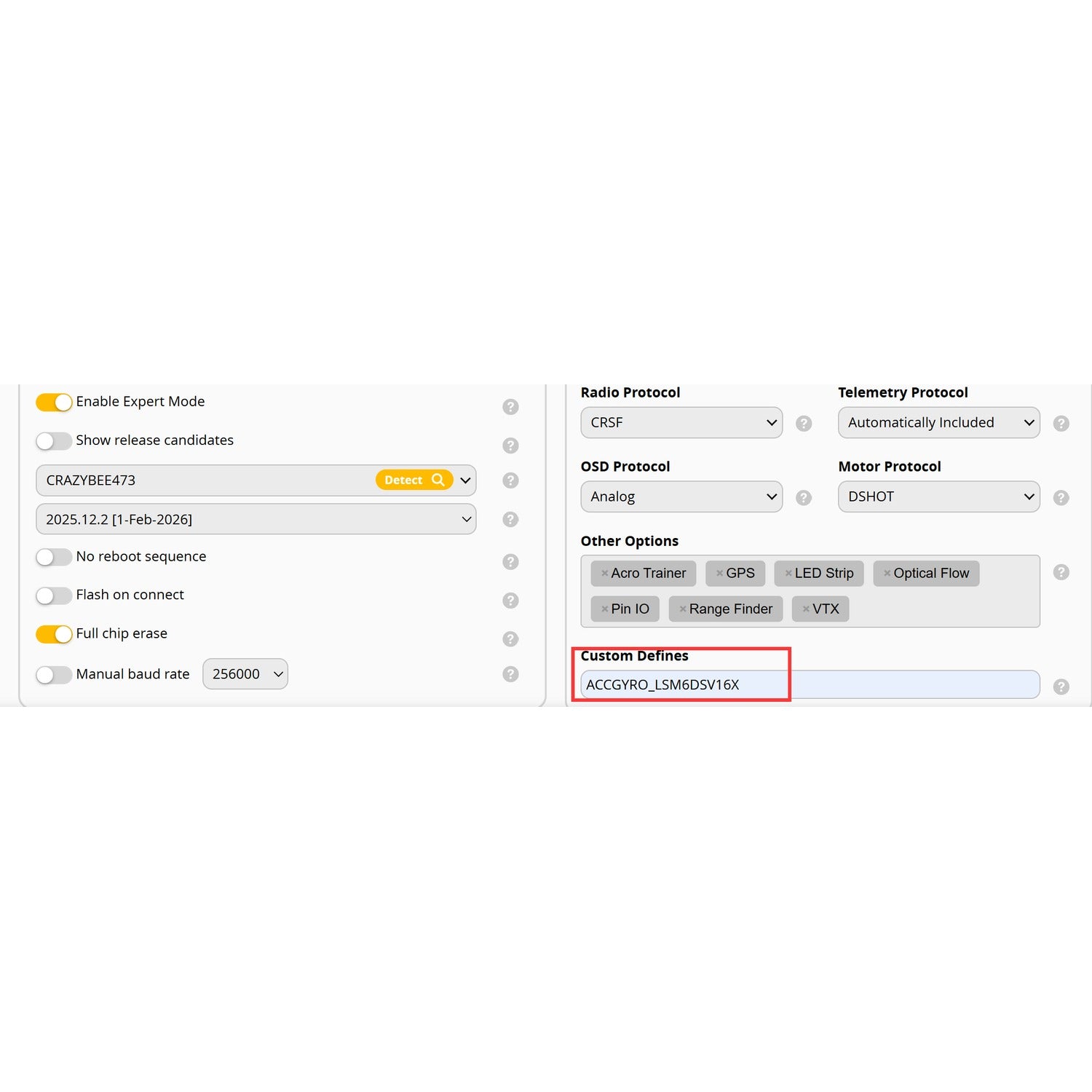

- Firmware target: Betaflight 4.6 CrazybeeG473
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Sensor: Voltage & Current
- BEC: 5V, Max. 2A
- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- Onboard 4in1 ESC current: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable: Yes
- Factory firmware: Bluejay v0.21
- ESC firmware target: A_X_5_96KHz
- Default protocol: DSHOT300 DSHOT600
- Recommend ESC Startup power value to min1100/max1200: Yes
- RX: Serial ELRS 2.4GHz
- RX antenna: Enameled copper wire 31mm length
- Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX
- Onboard Serial ExpressLRS receiver packet rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V3.0
- RF Frequency: 2.4GHz
- Antenna: Enameled copper wire antenna
- Telemetry output Power: <12dBm
- Receiver protocol: Serial_based CRSF
- Compatible with ExpressLRS V3.x.x TX Module: Yes
- Could flash single ELRS receiver firmware by Wifi: Yes
- ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
- OPENVTX: 5.8GHz 48 channels, Max. 400mW
- Onboard VTX power: 25mw~400mw
- VTX output power: PIT/10/25/100/400
- VTX frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.1
- Modulation type: FM
- Operating temperature: -10℃~+80℃
- Antenna port: IPEX1/U.FL
- USB port: SH1.0-4Pin
- Battery connector: A30
- Battery plug: A30(compatible with BT2.0)
- Power supply: 1S LiPo/LiPo HV
- Mounting hole size: 25.5mm x 25.5mm
- Flight controller weight: 3.83g without pigtail and vtx antenna
- Brushless Motor: 0702 KV28000 no plug
- Motor Mode: SE0702 KV28000 no plug version
- Motor Configu-ration:9N12P
- Stator Diamter:7mm
- Stator Length:2mm
- Shaft Diameter:Φ1mm
- Motor Dimension(Dia.*Len):Φ9.5mm*14mm
- Motor Weight(g):1.46g
- No.of Cells(Lipo):1S only
- Propeller: Gemfan 1208-3 tri-blade
- Propellers Materials: PC
- Propellers Inch: 31mm
- Propellers Pitch: 0.8 in
- Propellers Weight: 0.21g
- Mount hole diameter: 1mm
- Frame: Mobula6 2024 frame 2.76gram
- Camera model: Nano5 1200TVL camera NTSC 4:3
- Image Sensor: 1/3″ CMOS
- Horizontal Resolution: 1200 TVL
- Lens: 2.1mm (M10) 155° FOV
- TV System: NTSC
- Signal-to-Noise Ratio: >52dB
- Electronic Shutter: Auto
- Automatic Gain Control (AGC): Auto
- Minimum Illumination: 0.001Lux@1.2F
- Digital Wide Dynamic Range: Auto
- Power Supply: DC 3-5.5V
- Camera Current: 110mA@5V 120mA@3.3V
- House Material: ABS
- Camera Net Weight: 1.57g (1.0mm plug version)

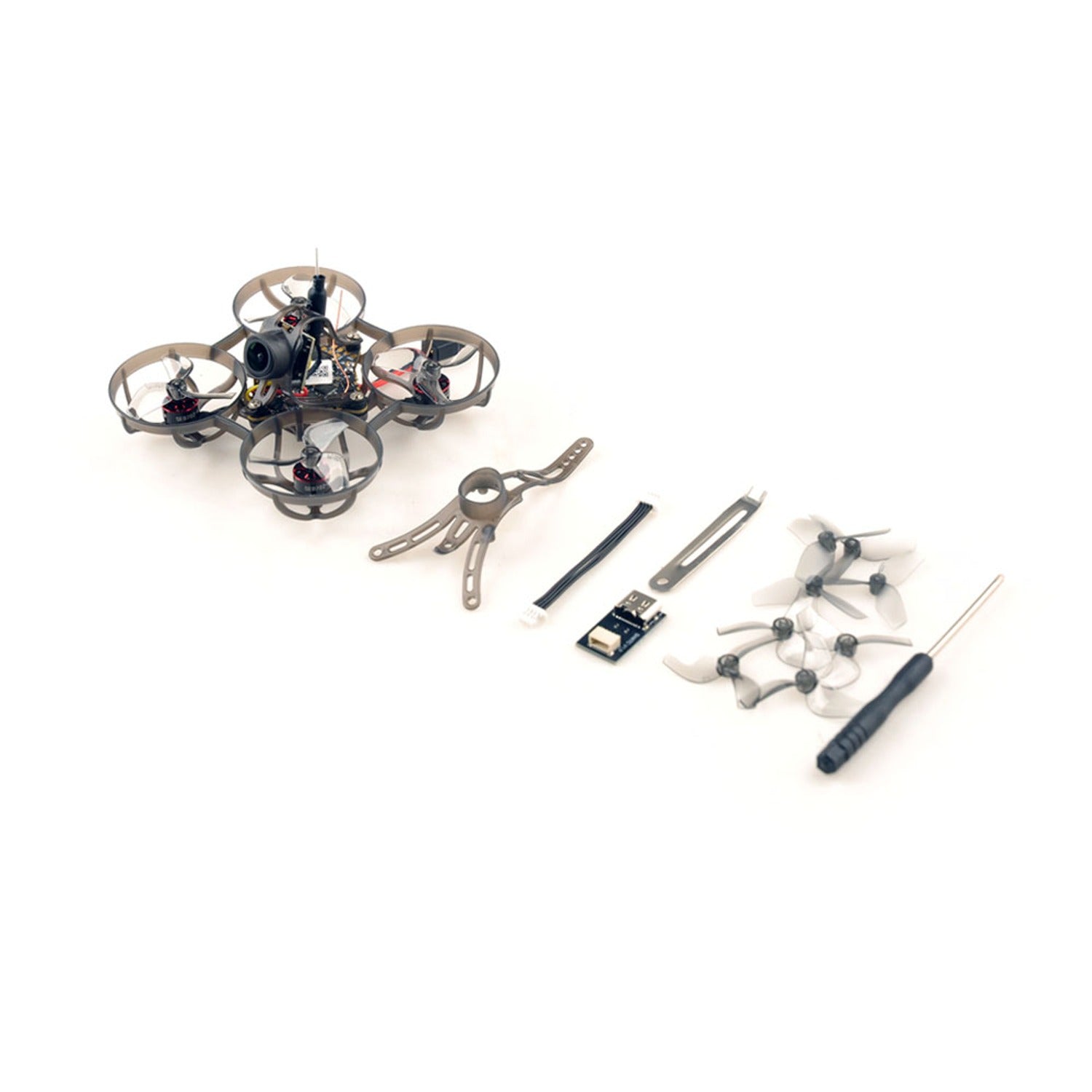

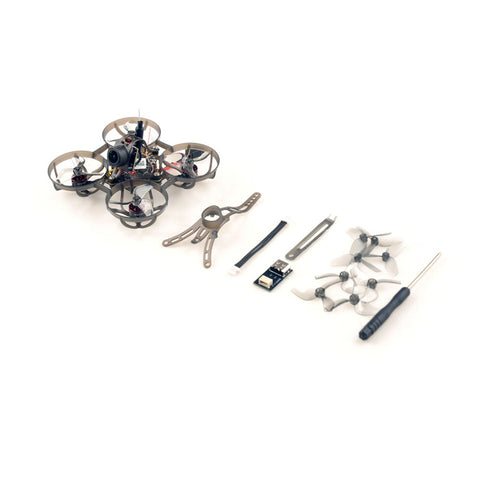

Package Contents:
- 1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
- 1x CrazybeeG473 AIO 5-IN-1 Flight controller
- 4x SE0702 KV28000 brushless motor
- 1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
- 1x HQPROP ultralight whoop prop 1.2×1.1×3(2cw+2ccw)
- 1x Nano5 1200TVL camera NTSC 4:3
- 1x Onboard 5.8G 25mw~400mw VTX
- 1x Spare canopy
- 1x Propeller disassemble tool
- 1x Screw driver
