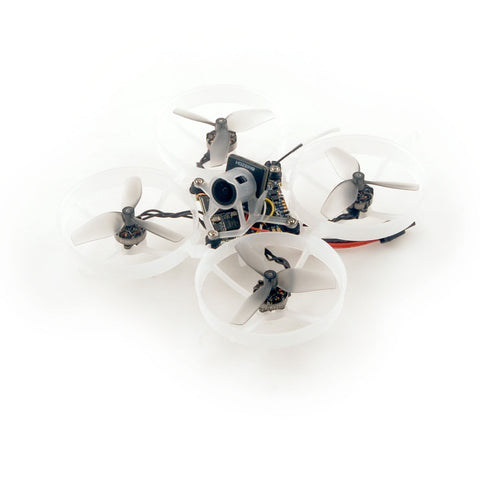

Happymodel Mobula7 Freestyle HD BNF Built-in HDZERO AIO5 Flight Controller

Notes: If the betaflight firmware is 4.5.1 and you got failsafe when Core temperature is overheat. Here is the Solution to fix the problem
Steps: Connect to betaflight configurator
Then copy the following command to CLI command:
cpu_overclock = 108MHZ
save

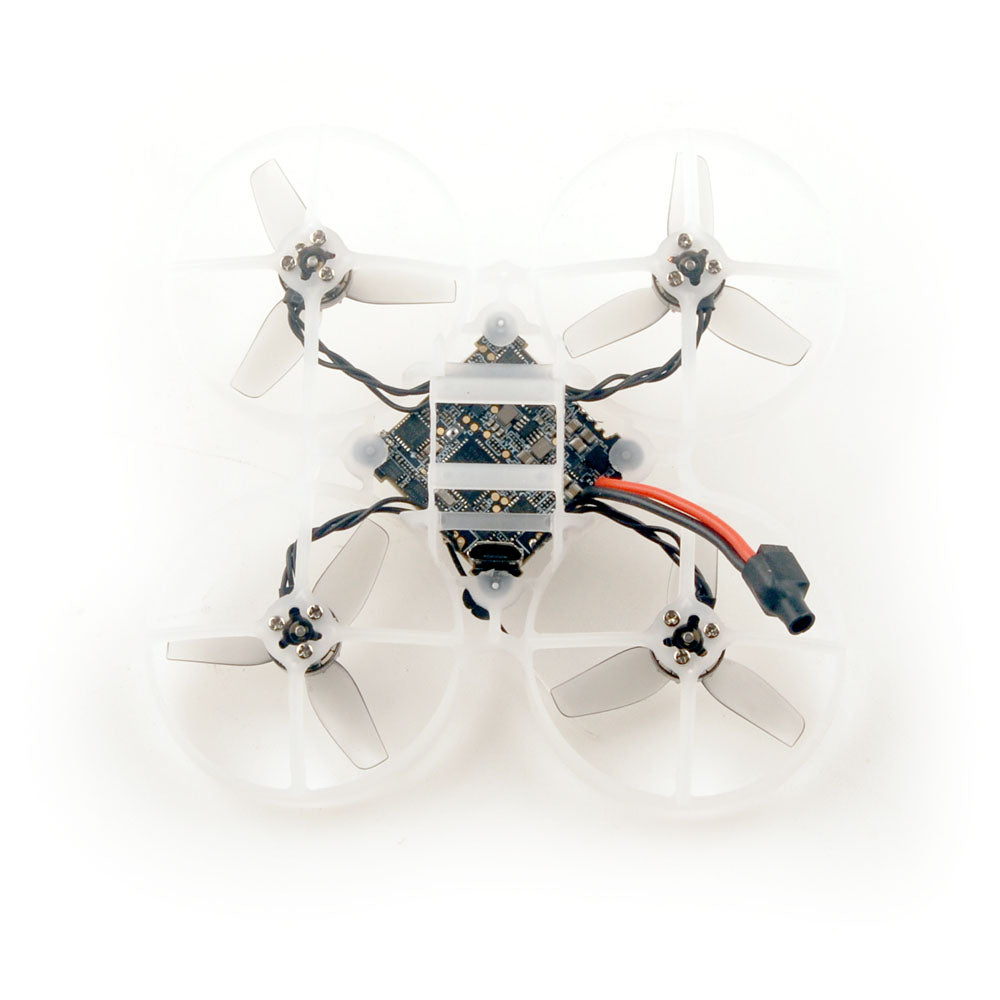

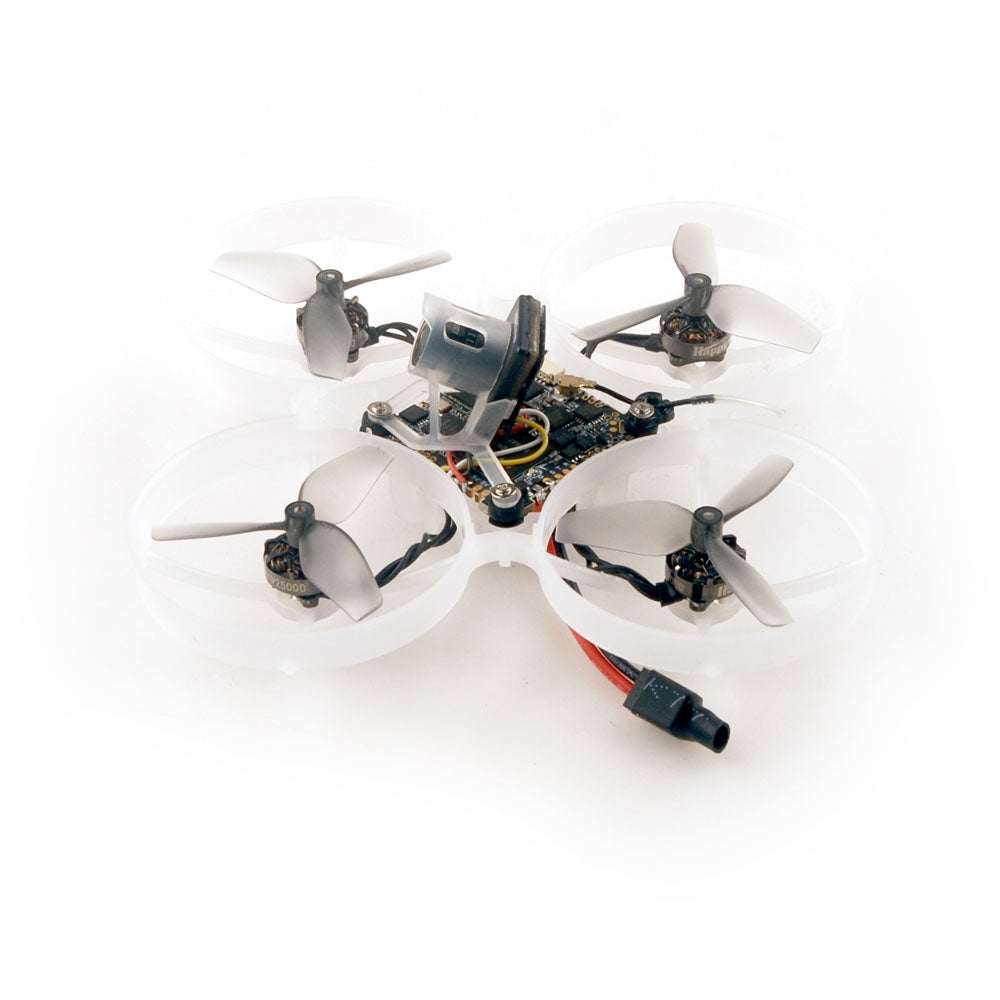

Happymodel Mobula7 Freestyle BNF is a 75mm ultra light BNF using the HDZero AIO5 designed for freestyle whooping. It is only 24.5 grams. High Speed RS0802 KV25000 brushless motors with HQPROP 1.6inch Tri-blades ultra light propellers, got a better freestyle experience.

Drone Specifications:

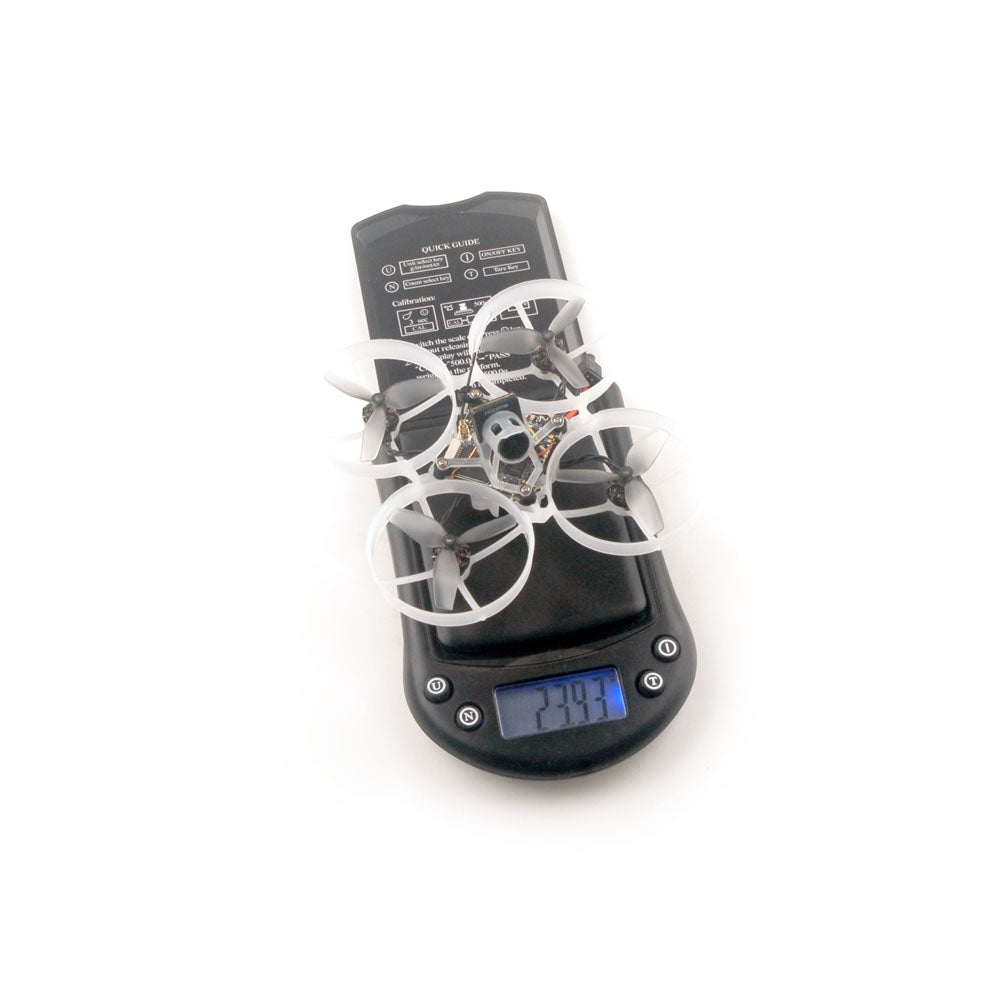

• Weight: 24.5g
• Recommended Battery: 1S 450mah/550mah/650mah
• Propeller Size: 40mm
• Flight time: around 4~5 minutes
• Factory SKU:5A10096

AIO flight controller Specifications:

• MCU: STM32F411 (100MHz, 512K Flash)
• Gyro: ICM42688P
• On board voltage and amperage meters
• Built-in 5A(each) BLHeli_S 4-in-1 ESC
• Bluejay ESC firmware pre-installed
• Built-in 5.8G HDZero VTX
• Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
• Built-in 5V 1A BEC
• Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
• Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory

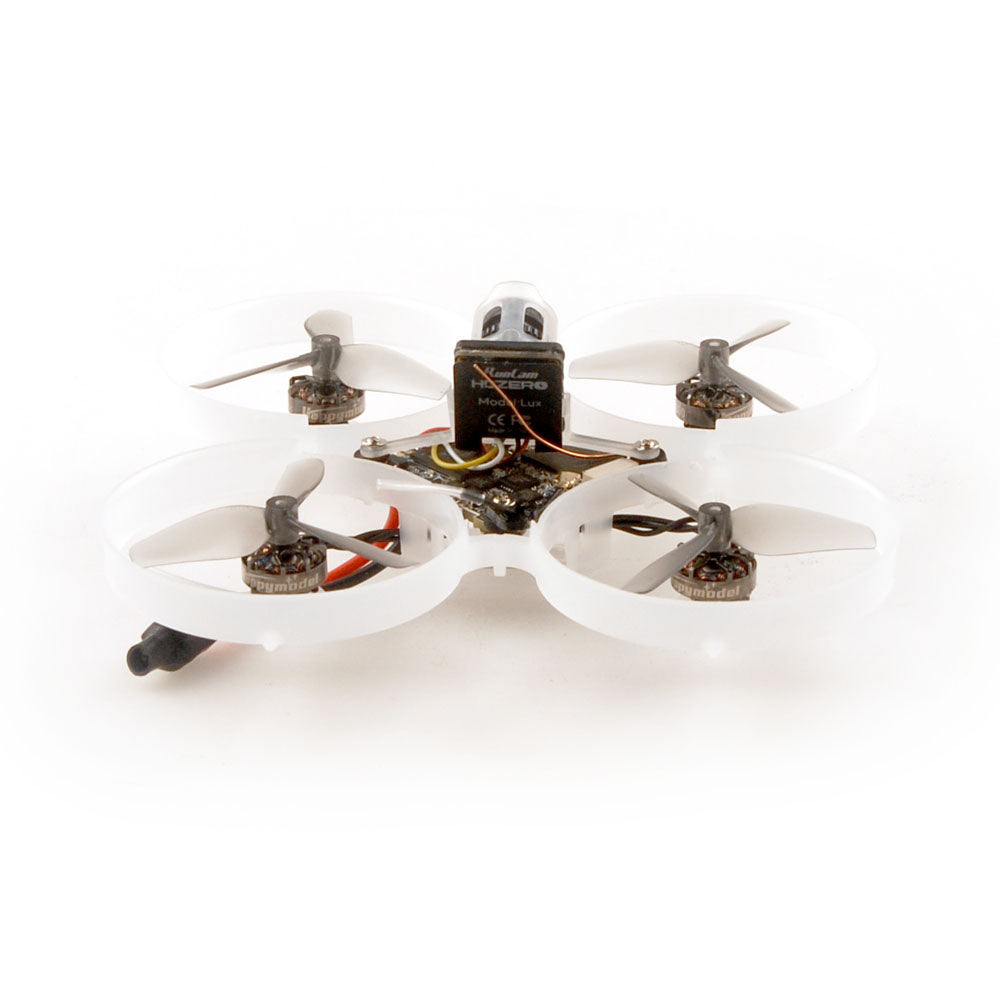

• HDZero Lux Camera
• Sensor size: 1/2 inch
• Resolution: 720p60 4:3 and 16:9
• FOV: D:155° H:126° V:94°(4:3)
• FOV: D:145° H:126° V:70°(16:9)
• WDR

Motors Specifications:

• Model:RS0802
• Kv:25000
• Stator diameter: 8mm
• Stator length:2mm
• Shaft diameter: Φ1.5mm
• Weight:2.0g

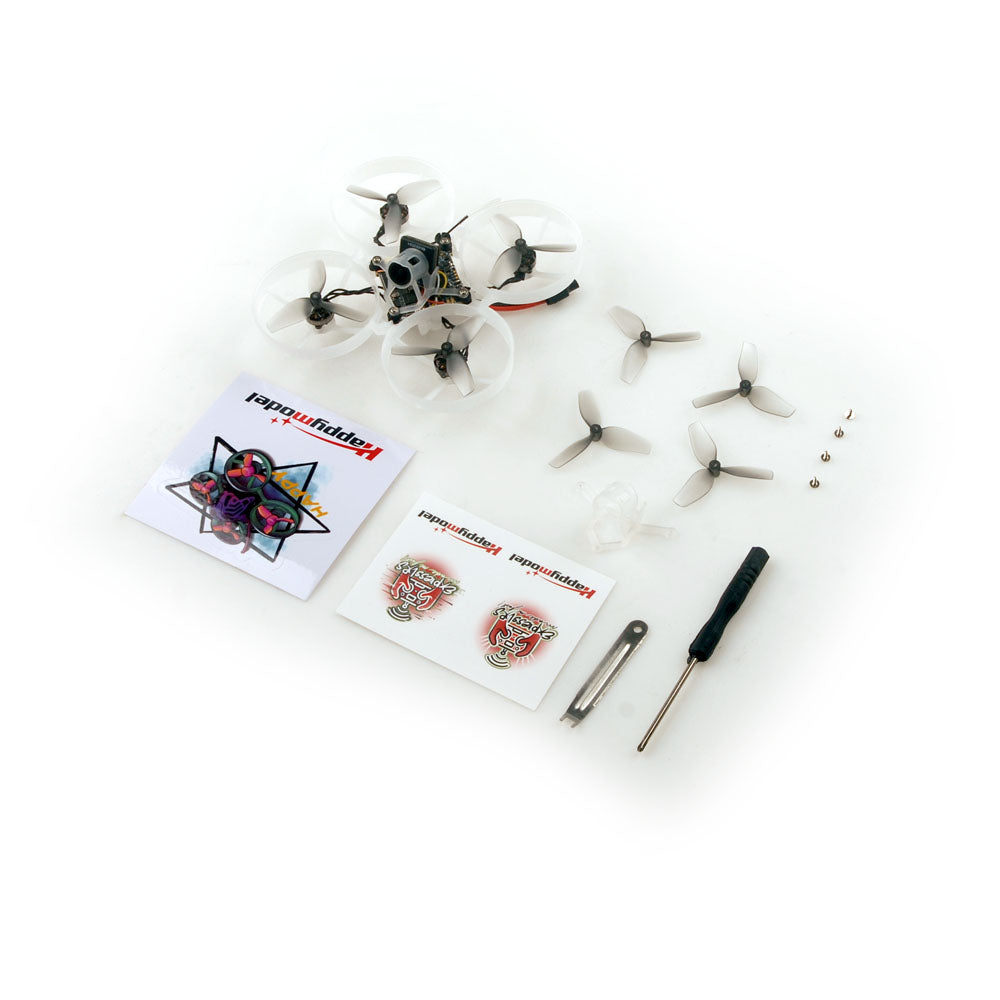

Package Contents:

• 1x Happymodel Mobula7 Freestyle BNF 1S
• 1x Spare canopy
• 1x Spare propeller(set)
• 1x Screw driver
• 1x propeller disassemble tool
