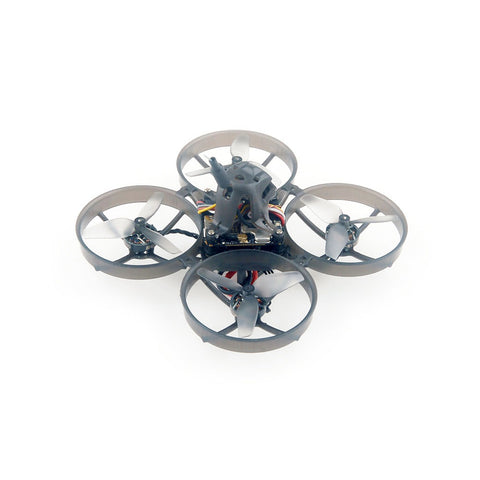

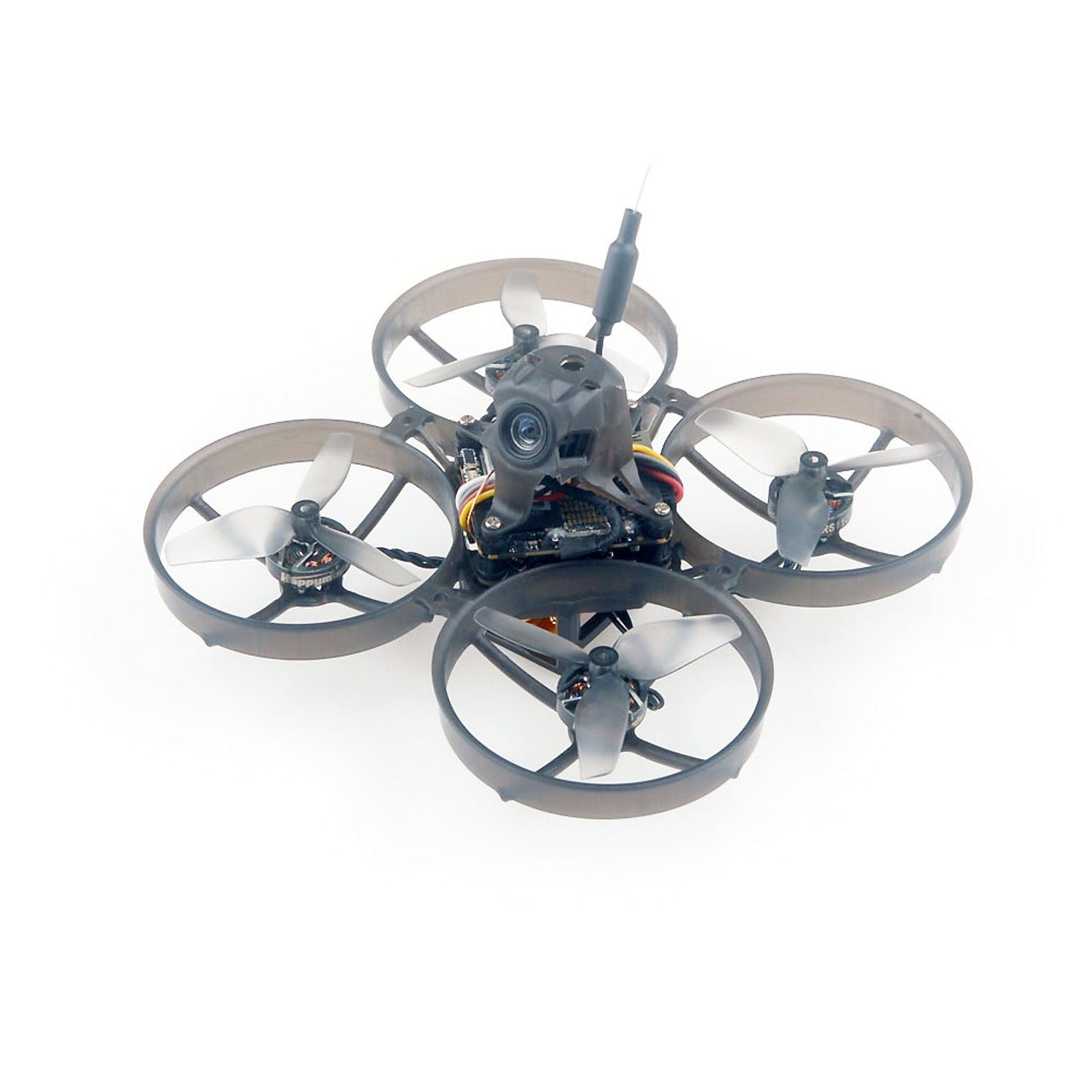

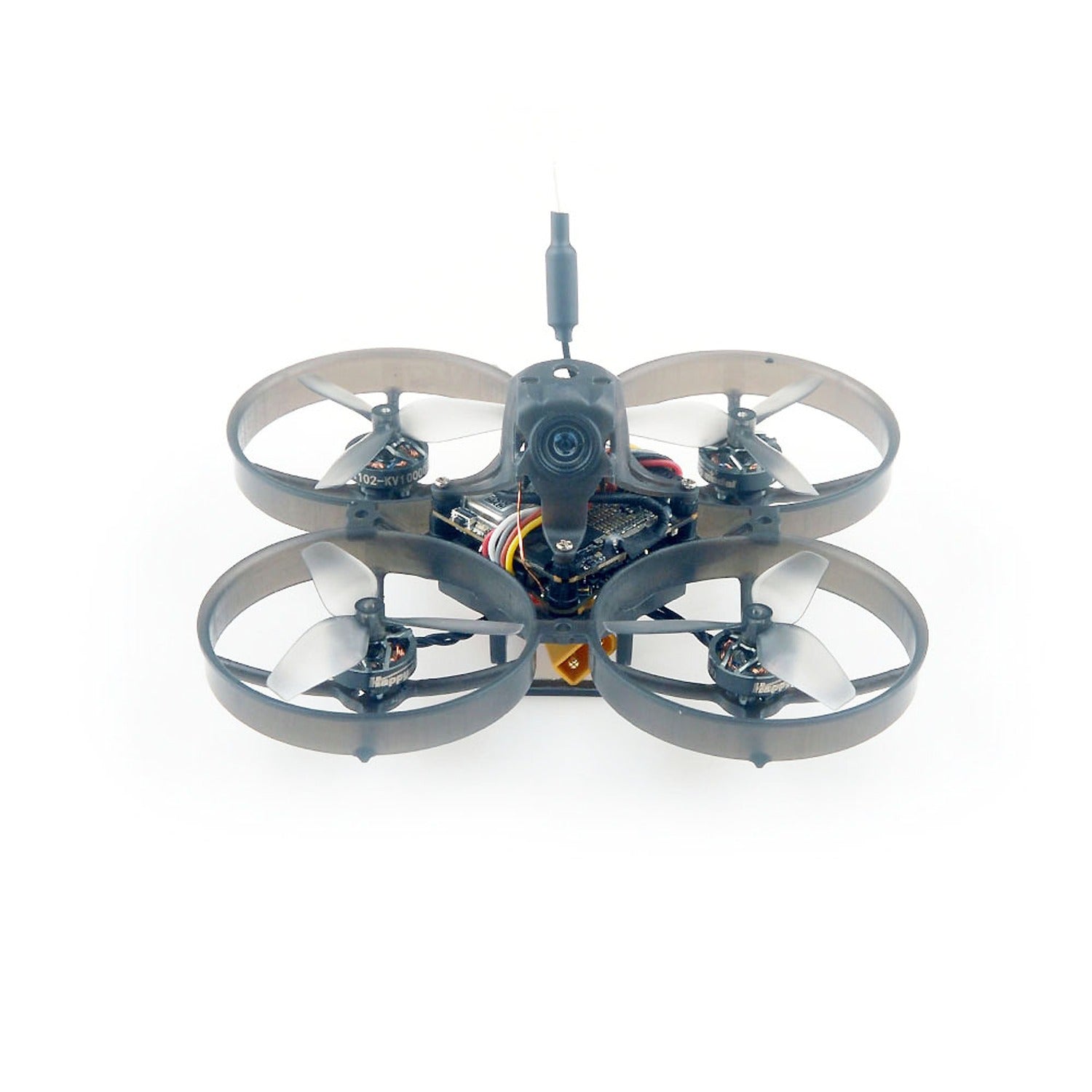

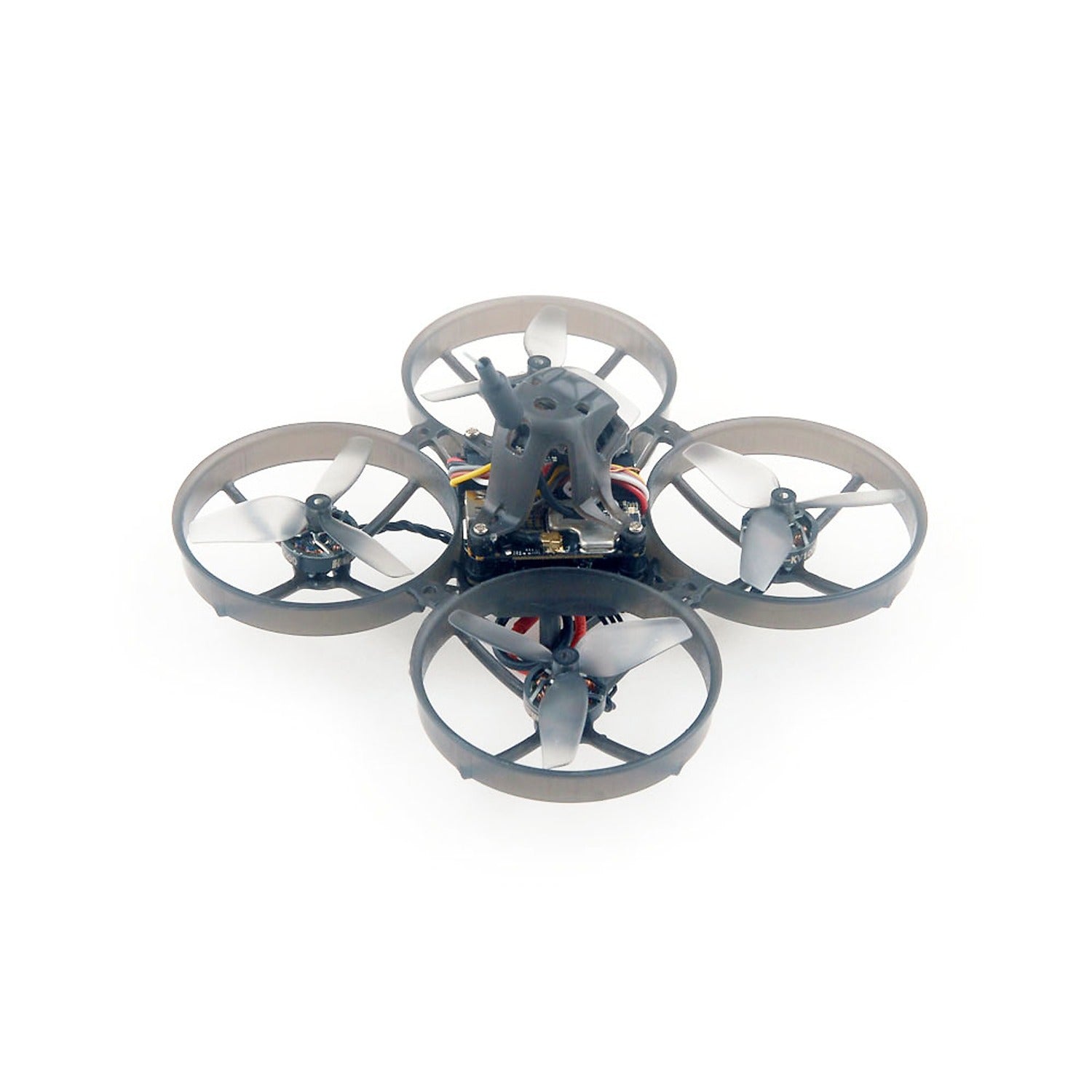

Happymodel Mobula7 O4 80mm HD FPV Whoop Drone (BNF)
Happymodel Mobula7 O4 80mm HD FPV Whoop Drone (BNF)
Happymodel Mobula7 O4 2S 80mm Digital HD Micro FPV whoop is a compact micro FPV platform designed for indoor and backyard flying. It supports 2S batteries and includes a UART ExpressLRS receiver and DJI O4 Air unit for digital live view.
Specifications:
- Flight time: around 5 minutes
- Frame: Happymodel M80 Frame
- Motor Model: RS1102 KV10000
- Motor Configuration: 9N12P
- Motor Stator Diamter: 11mm
- Motor Stator Length: 2mm
- Motor Shaft Diameter: Φ1.5mm
- Motor Dimension(Dia.*Len): Φ13.5mm*14mm
- Motor Weight(g): 2.8g
- Motor No.of Cells(Lipo): 1-2S
- Propellers: HQPROP 45MMX3 tri-blade propellers(4cw+4ccw)
- Propellers Weight: 0.33g
- Propellers Material: Poly Carbonate
- Propellers Pitch: 0.9
- Propellers Props Dia: 45mm
- Propellers Hub Thickness: 5mm
- Propellers Shaft: 1.5mm
- Flight controller: CrazyF405HD ELRS
- Flight controller MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)

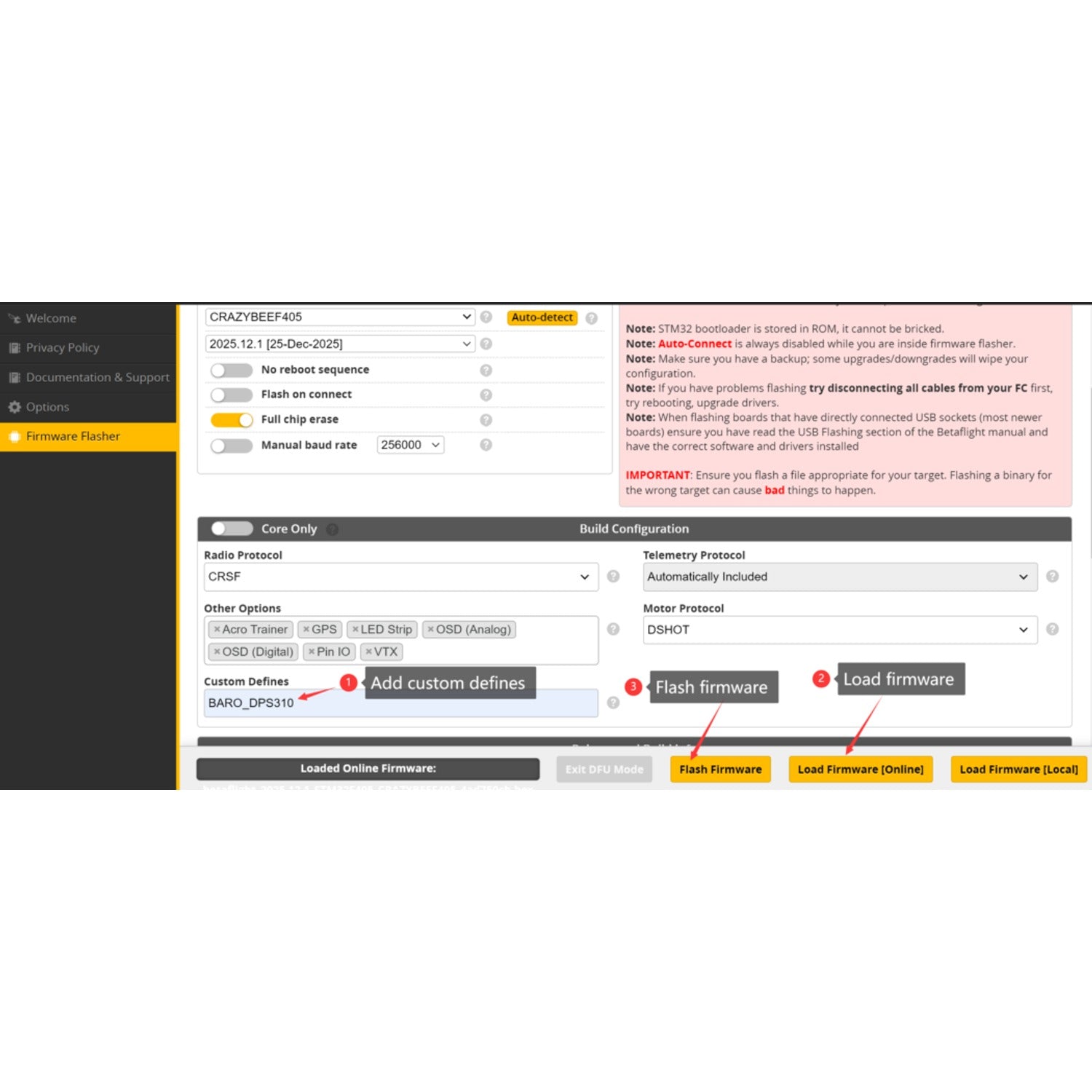

- Flight controller Firmware target: CRAZYBEEF405
- Flight controller GYRO Sensor: BMI270 (SPI connection)
- Flight controller Mount hole size: 25.5mm*25.5mm
- Flight controller Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Flight controller Built-in ESC: 12A(each) Blheli_S 4in1 ESC
- Flight controller Built-in Serial ExpressLRS: 2.4G
- Flight controller Built-in Barometer: BMP280
- Flight controller Built-in blackbox: 8MBp
- Flight controller Built-in voltage meter scale: 110
- Flight controller Built-in current meter scale: 470
- Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
- Onboard 4in1 ESC Current: 12A continuous peak 15A (3 seconds)
- Onboard 4in1 ESC Support firmware: BLHeli_S Bluejay firmware
- Onboard 4in1 ESC Factory firmware: Bluejay ESC V0.19
- Onboard 4in1 ESC Firmware target: Z-H-30
- Onboard 4in1 ESC Default protocol: DSHOT300
- Onboard UART ExpressLRS Receiver RF Frequency: 2.4GHz
- Onboard UART ExpressLRS Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- Onboard UART ExpressLRS Receiver Antenna: enameled copper wire 31mm length
- Onboard UART ExpressLRS Receiver Telemetry output Power: <12dBm
- Onboard UART ExpressLRS Receiver Default firmware version: ExpressLRS V3.0.1
- Onboard UART ExpressLRS Receiver Firmware target: HappyModel EP 2400 RX
- DJI O4 Air Unit Weight (Air Unit, camera module included): Approx. 8.2 g
- DJI O4 Air Unit Transmission Module: 30×30×6 mm (L×W×H)
- DJI O4 Air Unit Camera Module: 13.44×12.36×16.50 mm (L×W×H)
- DJI O4 Air Unit Camera Cable Length: 50mm
- DJI O4 Air Unit Coaxial Cable: 50 mm
- DJI O4 Air Unit 3-in-1 Cable: 50 mm
- DJI O4 Air Unit Operating Frequency: 5.170-5.250 GHz
- DJI O4 Air Unit Operating Frequency: 5.725-5.850 GHz
- DJI O4 Air Unit Transmitter Power (EIRP) 5.1 GHz: <23 dBm (CE)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <30 dBm (FCC)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <14 dBm (CE)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <30 dBm (SRRC)
- DJI O4 Air Unit Live View Quality: 1080p at 30/50/60/100fps

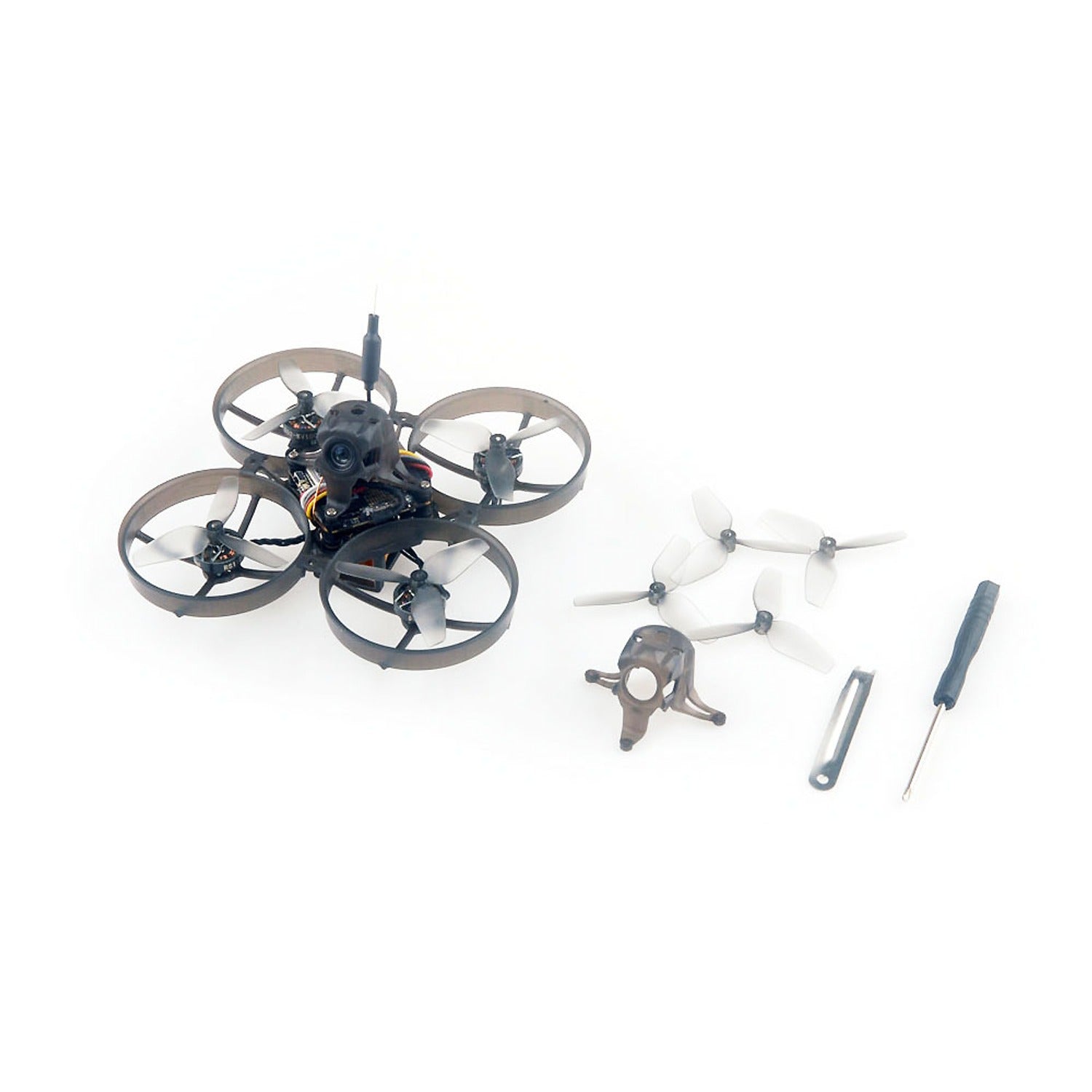

Package Contents:
- 1x Happymodel M80 Frame
- 1x CrazyF405HD ELRS flight controller (firmware target: CRAZYBEEF405)
- 4x RS1102 KV10000 brushless motor
- 1x HQPROP 45MMX3 tri-blade propellers(4cw+4ccw) set
- 1x DJI O4 Air unit
- 1x Canopy
- 1x Screw driver
