Happymodel Mobula8 HD O4 85mm FPV Whoop Drone (BNF)
Happymodel Mobula8 HD O4 85mm FPV Whoop Drone (BNF)

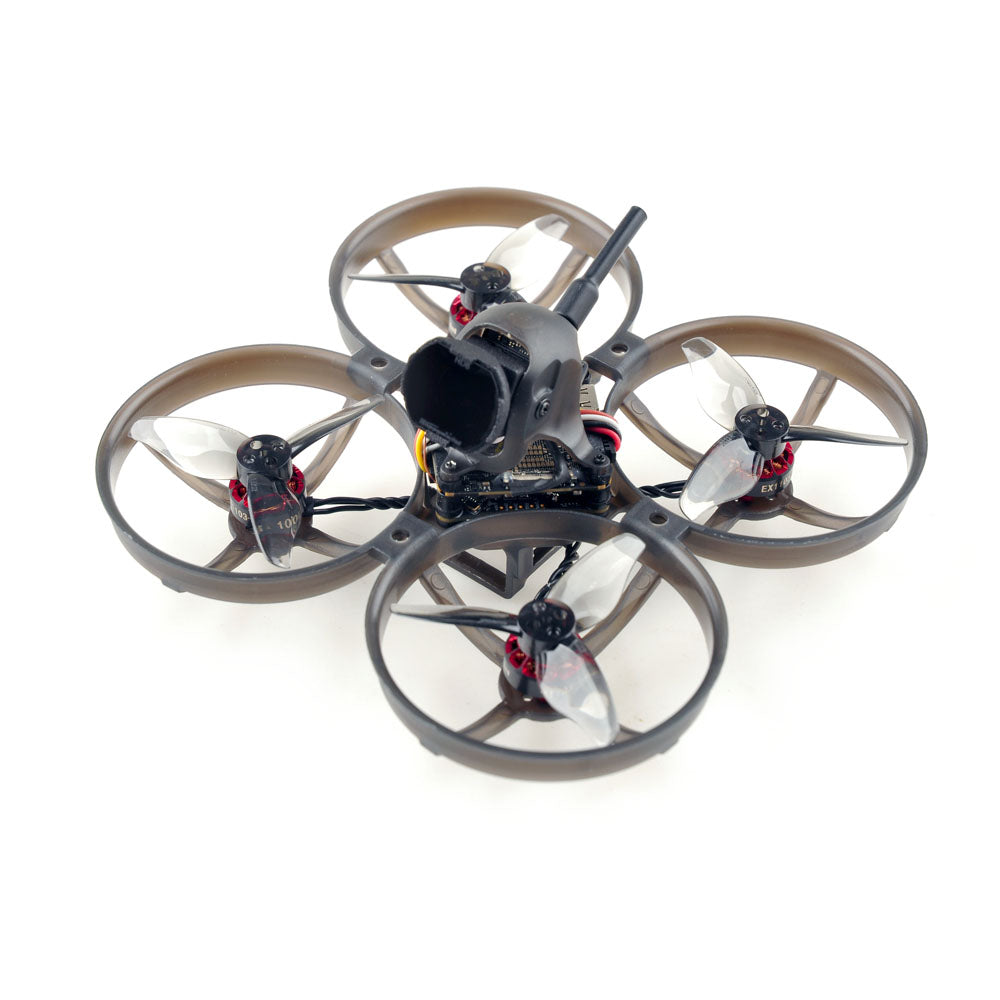

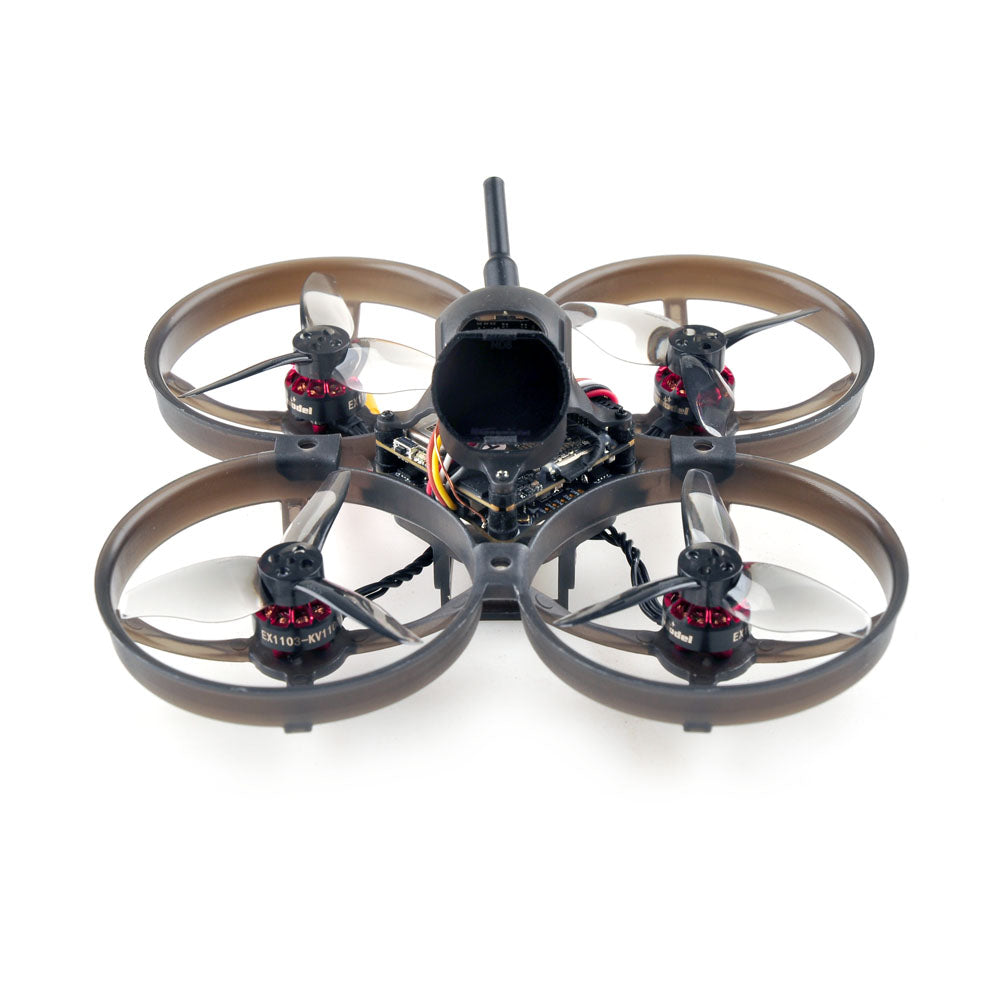

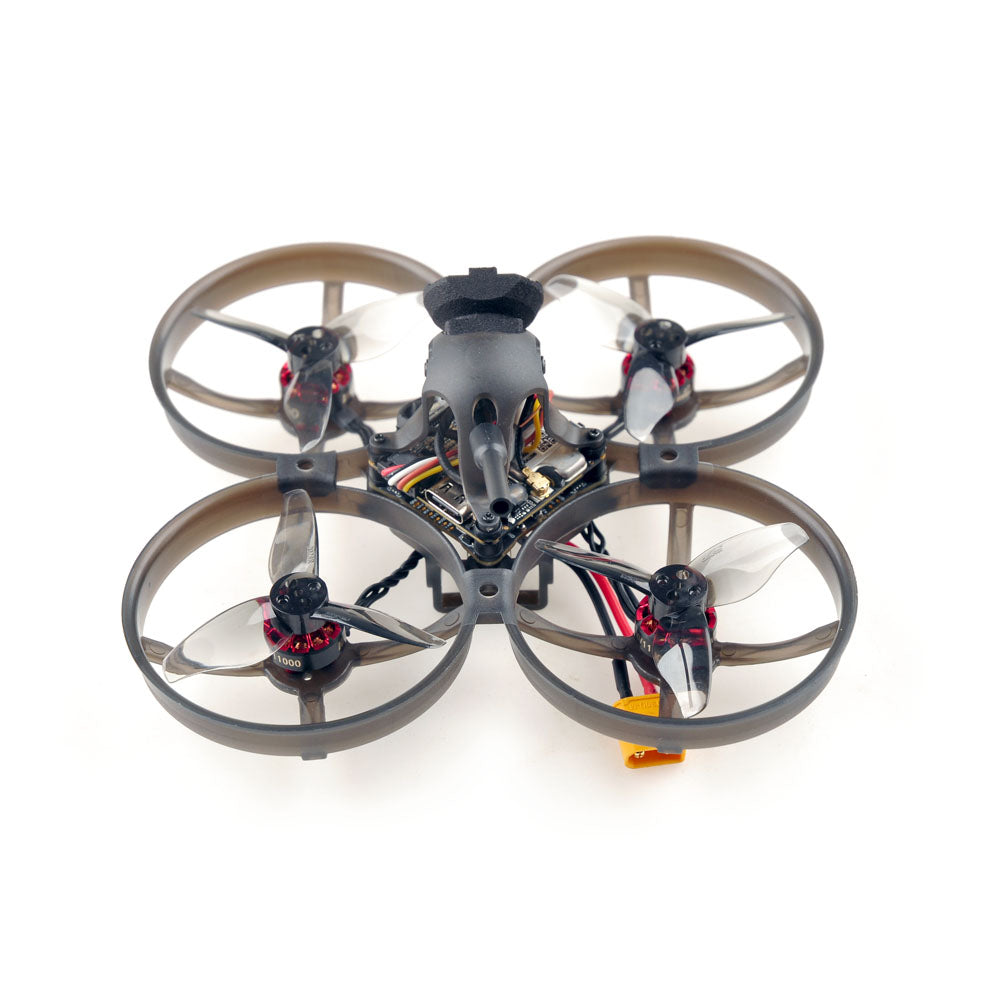

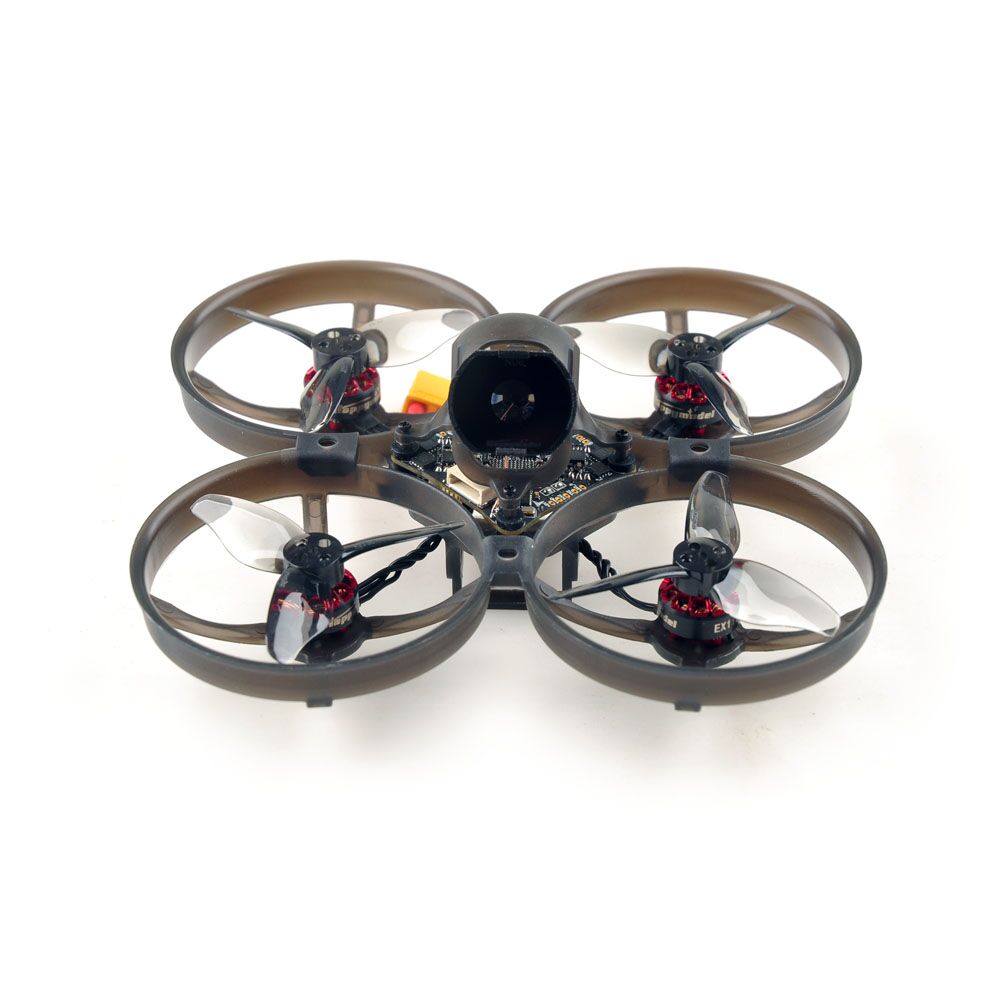

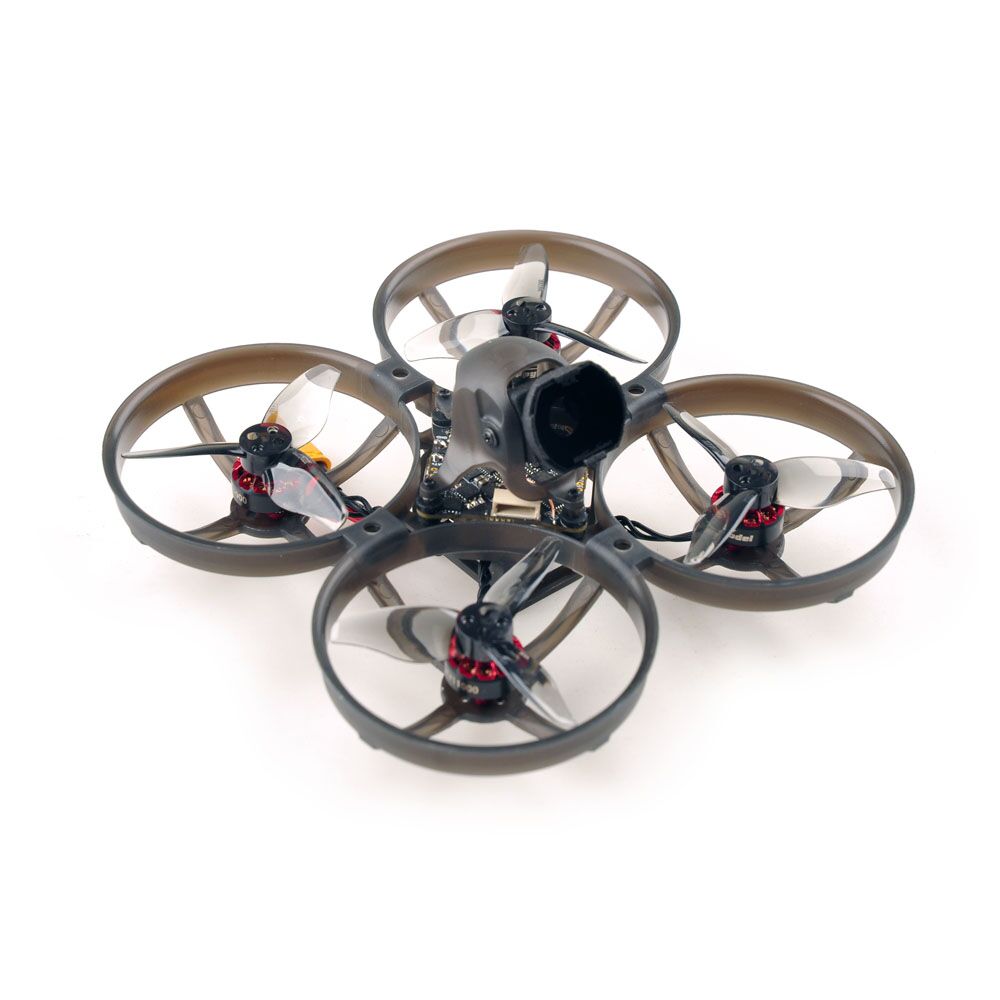

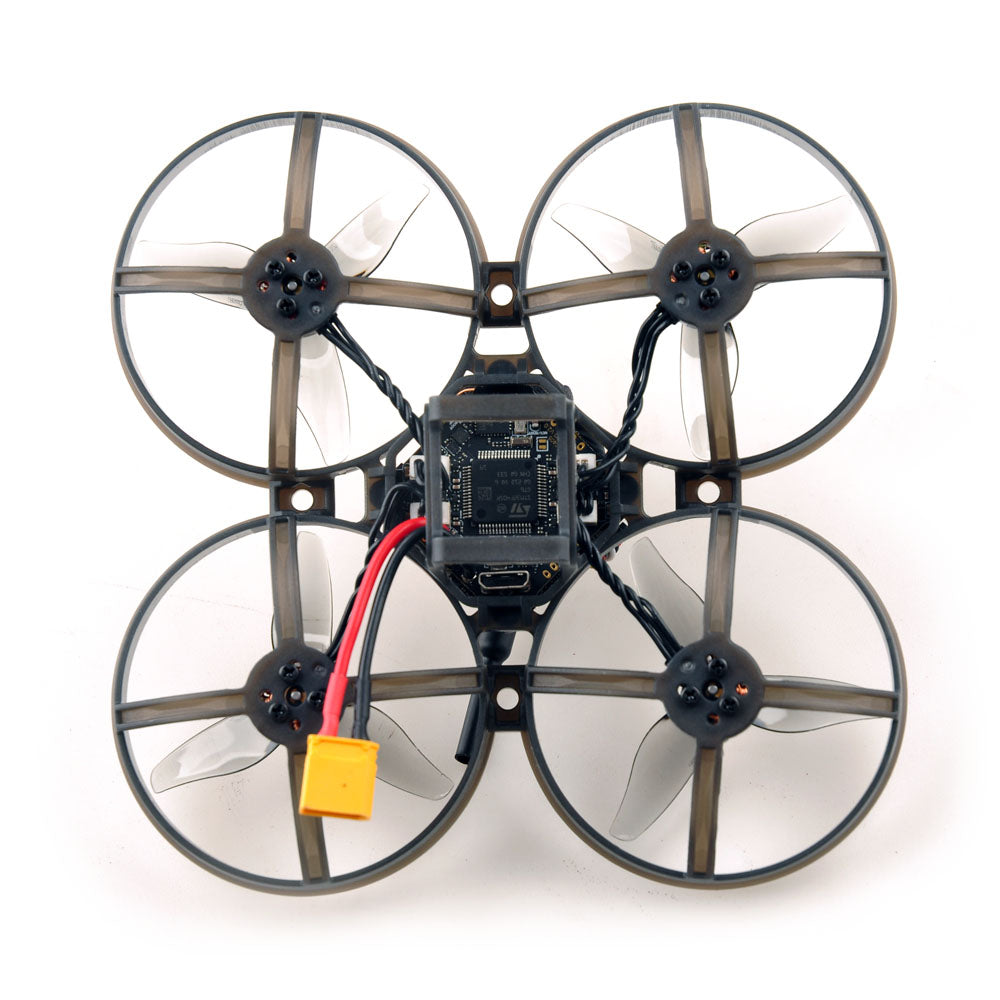

HappyModel Mobula8 O4 ELRS 85mm 2S Digital FPV Whoop is a compact 2S micro whoop built around the DJI O4 Air Unit and a CrazyF405HD flight controller with ExpressLRS. It comes configured with EX1103 11000KV motors and 52.17mm propellers.
Specifications:
- Wheelbase: 85mm
- Battery support: 2S
- Motor Model: EX1103
- Motor KV: 11000KV
- Motor Configuration: 9N12P
- Motor Stator Diameter: 11mm
- Motor Stator Length: 3mm
- Motor Shaft Diameter: Φ1.5mm
- Motor Dimension (Dia.*Len): Φ13.5mm*15.5mm
- Motor Weight(g): 3.8g
- Motor No.of Cells(Lipo): 1-2S
- Propellers Weight: 0.88g
- Propellers Material: PC
- Propellers Pitch: 2.3inch
- Props Dia: 52.17mm
- Propellers Center Thickness: 5mm
- Propellers Center Hole Dia: 1.5mm
- Flight controller MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
- Flight controller GYRO Sensor: BMI270 (SPI connection)
- Flight controller Mount hole size: 25.5mm*25.5mm
- Flight controller Power supply: 1-2S battery input (DC 2.9V-8.7V)
- ESC: Built-in 12A(each) Blheli_S 4in1 ESC
- Barometer: Built-in BMP280 Barometer
- Blackbox: Built-in 8MBp blackbox
- Voltage meter: Built-in voltage meter sensor , voltage meter scale 110
- Current meter: Built-in current meter sensor , current meter scale 470
- Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
- ESC Current: 12A continuous peak 15A (3 seconds)
- ESC firmware support: Support BLHeli_S Bluejay firmware
- ESC Factory firmware: Bluejay ESC V0.19
- ESC Firmware target: Z-H-30
- ESC Default protocol: DSHOT300

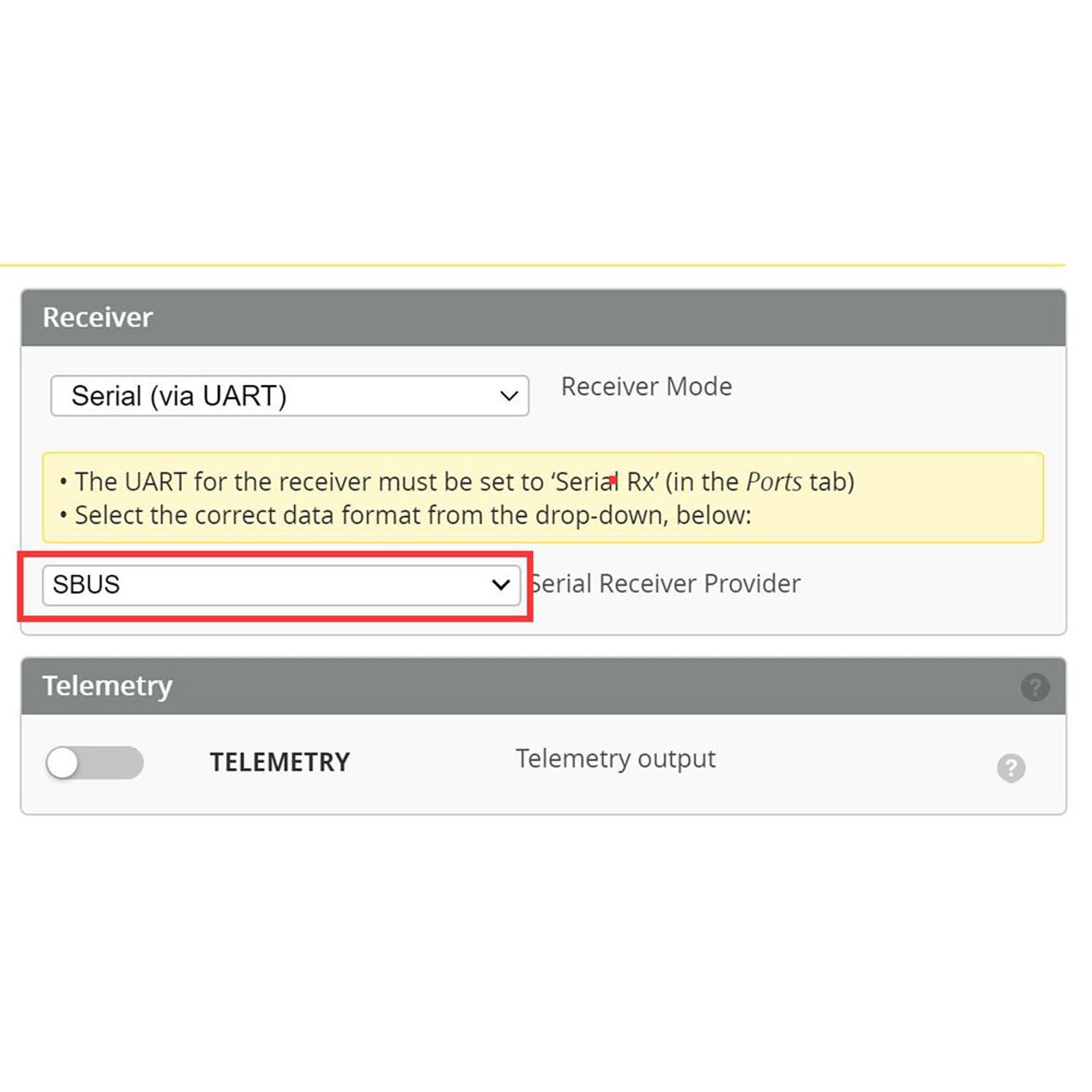

- Receiver: Onboard UART ExpressLRS 2.4GHz Receiver
- Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- RF Frequency: 2.4GHz
- Receiver Antenna: enameled copper wire 31mm length
- Telemetry: Telemetry output
- Receiver output Power: <12dBm
- Receiver Default firmware version: ExpressLRS V3.0.1
- Receiver Firmware target: HappyModel EP 2400 RX

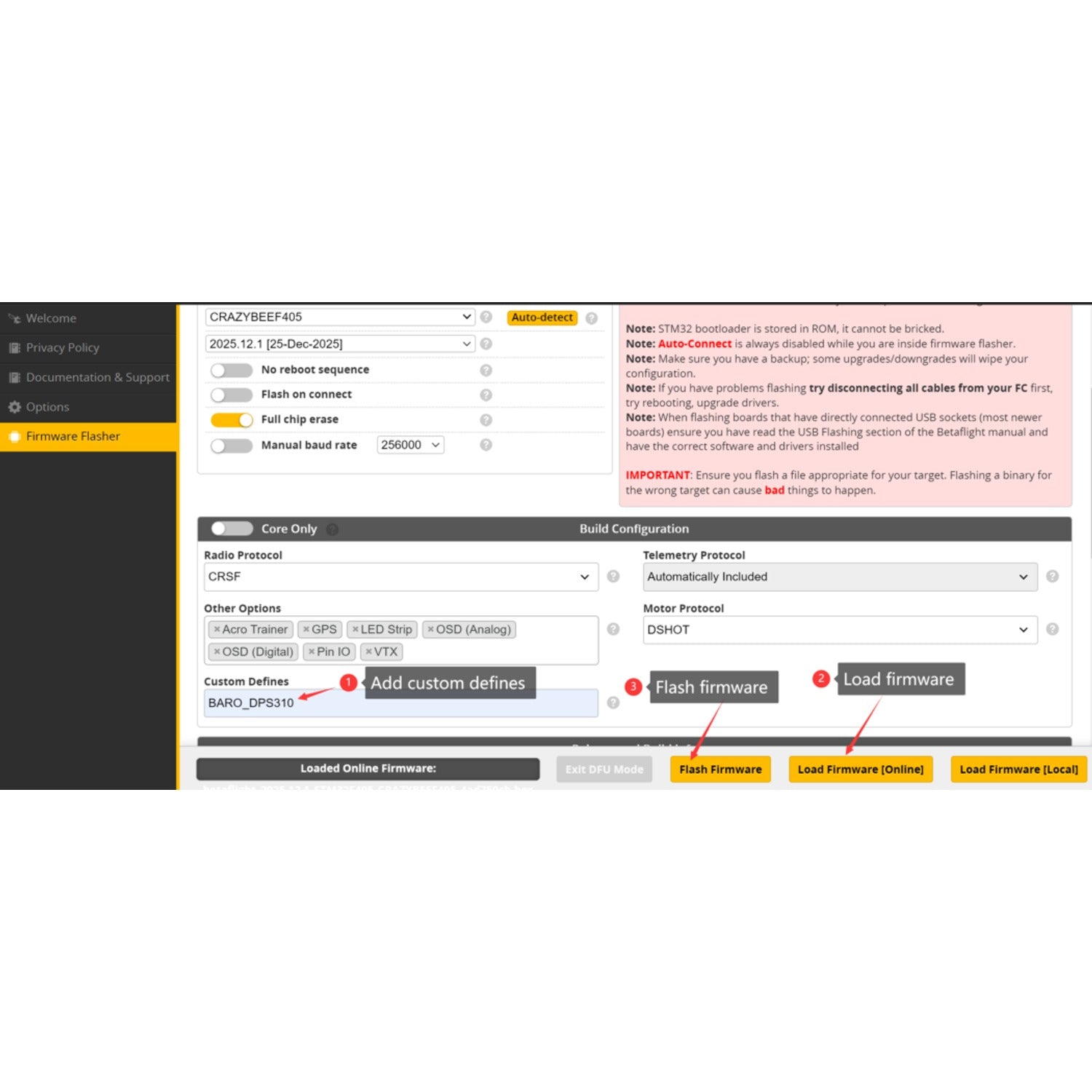

- Firmware update method: Could update firmware via ExpressLRS configurator
- DJI O4 Air Unit Weight: Air Unit (camera module included): Approx. 8.2 g
- DJI O4 Air Unit Transmission Module: 30×30×6 mm (L×W×H)
- DJI O4 Air Unit Camera Module: 13.44×12.36×16.50 mm (L×W×H)
- DJI O4 Air Unit Camera Cable Length: 50mm
- DJI O4 Air Unit Coaxial Cable: 50 mm
- DJI O4 Air Unit 3-in-1 Cable: 50 mm
- DJI O4 Air Unit Operating Frequency: 5.170-5.250 GHz
- DJI O4 Air Unit Operating Frequency: 5.725-5.850 GHz
- DJI O4 Air Unit Transmitter Power (EIRP) 5.1 GHz: <23 dBm (CE)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <30 dBm (FCC)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <14 dBm (CE)
- DJI O4 Air Unit Transmitter Power (EIRP) 5.8 GHz: <30 dBm (SRRC)
- DJI O4 Air Unit Live View Quality: 1080p at 30/50/60/100fps
- FOV Extender for O4 Camera Weight: only 3.2gram
- FOV Extender: Built-in widening lens
- FOV angle: up to 150 degree
- Camera holder: 3d printed
- Filters included: UV filter, ND8 filter, ND16 filter

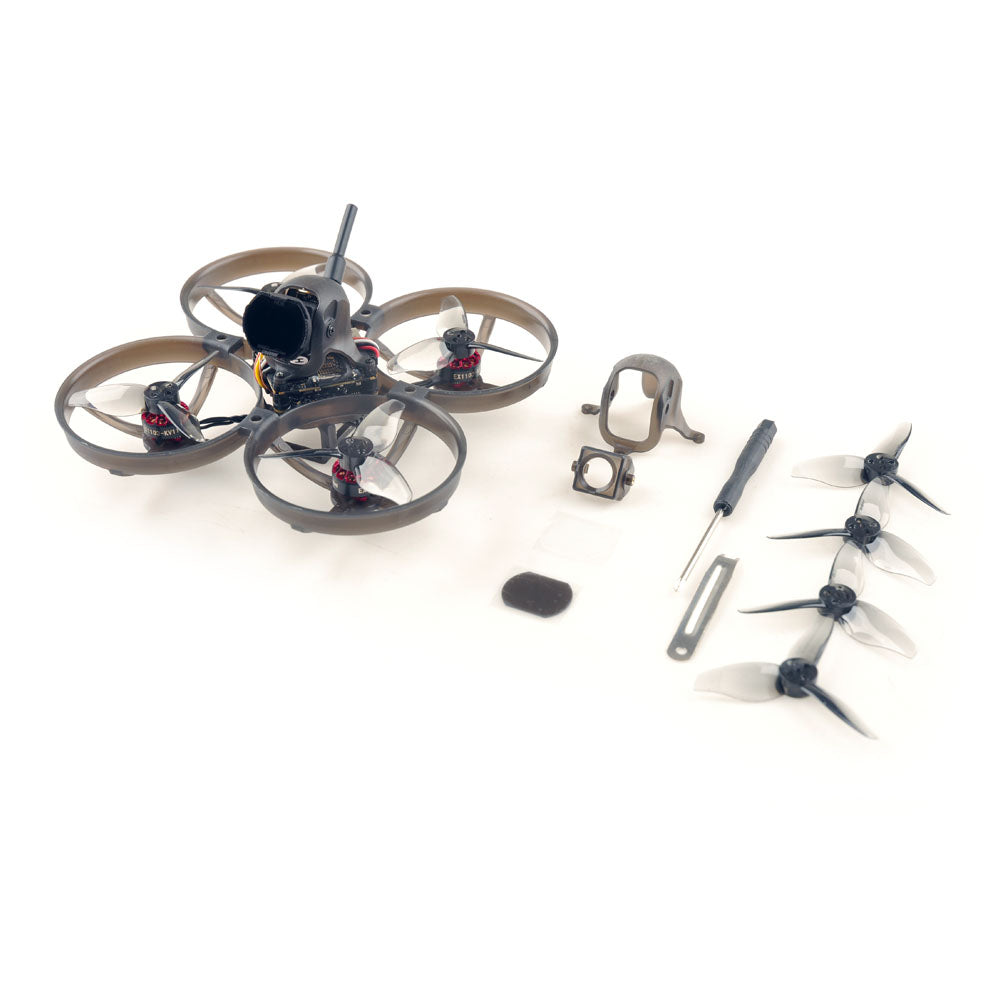

Package Contents:
- 1x HappyModel Mobula8 O4 ELRS 85mm 2S Digital FPV Whoop
- 1x UV filter
- 1x ND8 filter
- 1x ND16 filter
