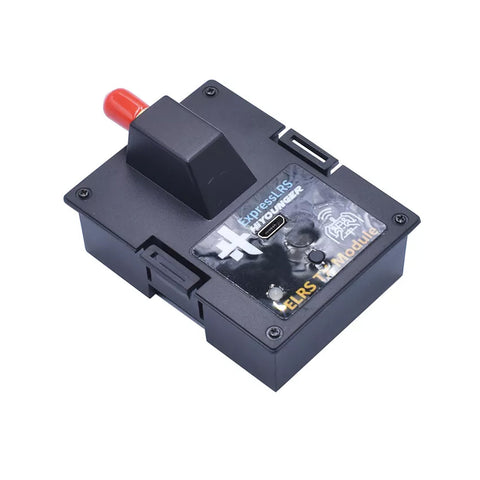

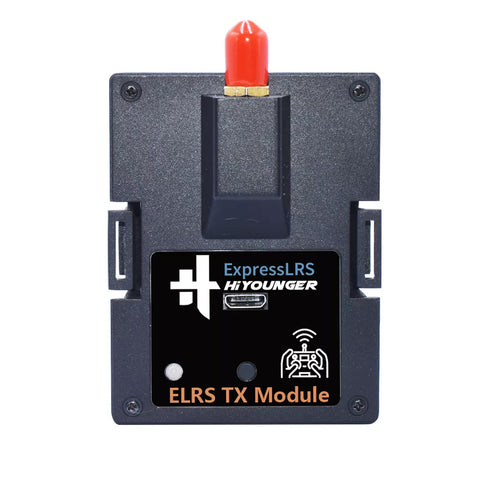

  • ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Comp
  • ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible
  • ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible
  • ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible
ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible

ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible

ELRS TX2G4 Transmitter Module Tx ExpressLRS Ultra Fast Refresh JR Compatible

Sold Out

Product Type: Transmitter Module
Brand: HiYOUNGER
Protocol: ExpressLRS

Features:
  • This ExpressLRS TX2G4 TX module is currently the module with the lowest delay and the highest refresh rate on the market. It has an ultra-high refresh rate of 500Hz and is specially designed for FPV racing.
  • ExpressLRS firmware is pre-installed. You will only need a remote controller that supports OpenTX, and use the LUA script and the Button to configure the parameters.
  • To upgrade the module, you can connect it to Wifi, and then visit 10.0.0.1 through the browser to update the firmware.
  • Comes with a T antenna for enhanced signal distribution and strength.

Specifications:
  • Specifications:
  • Brand Name: HiYOUNGER
  • Item Name: TX2G4 TX Module
  • Frequency Range: 2400 MHz
  • Receiving refresh rate: 25Hz/100Hz/500Hz
  • RF Output Power: 100Mw/250mW/500mW
  • Support voltage: 5-12V
  • Antenna gain: 2dBi
  • Size: 65x48x22mm
  • Compatibility: JR standard 5pin socket
  • Weight: 35g (without antenna)

Package Contents:
  • 1x TX2G4 JR Compatible TX Module
  • 1x TX Antenna
