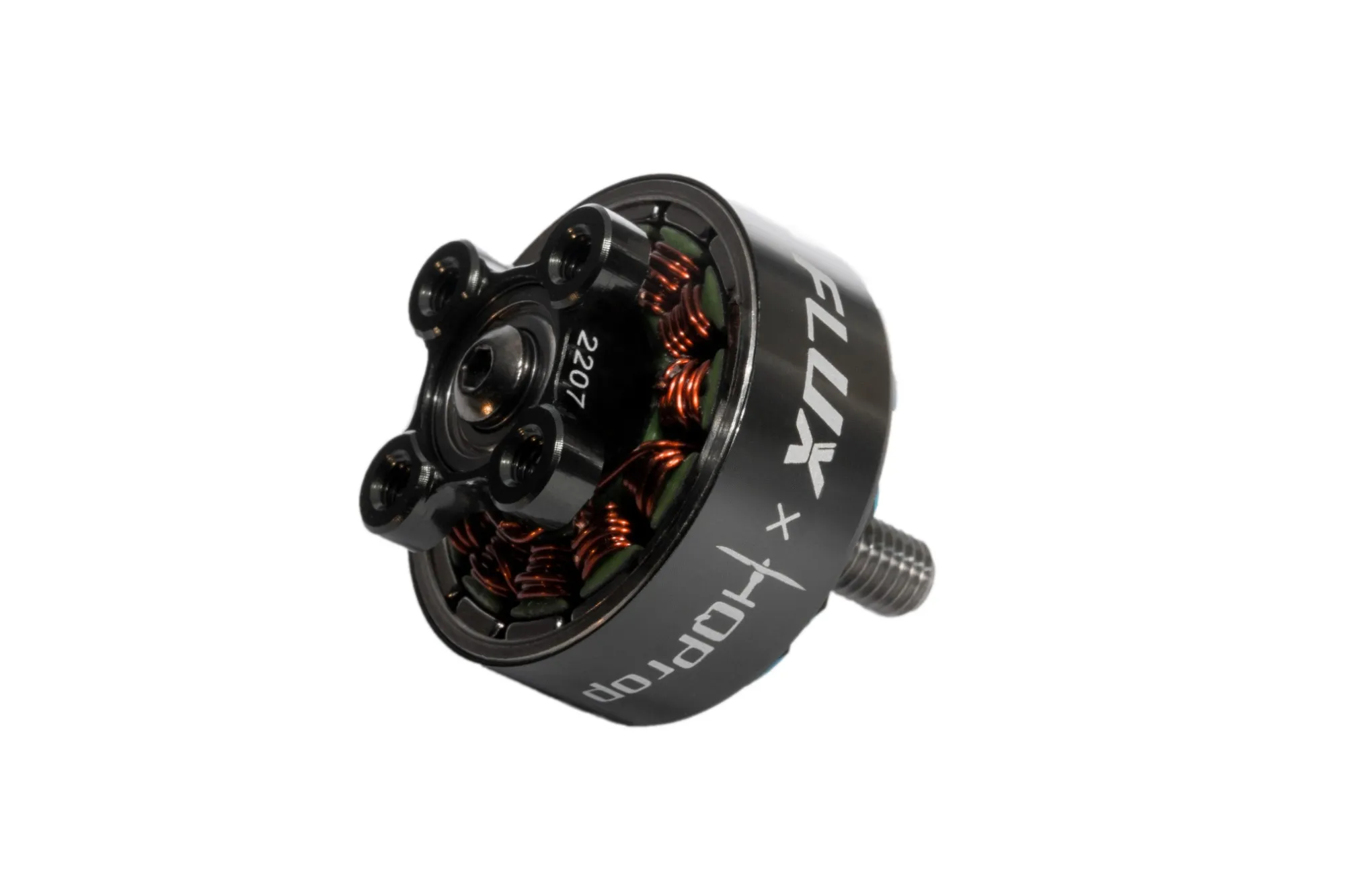

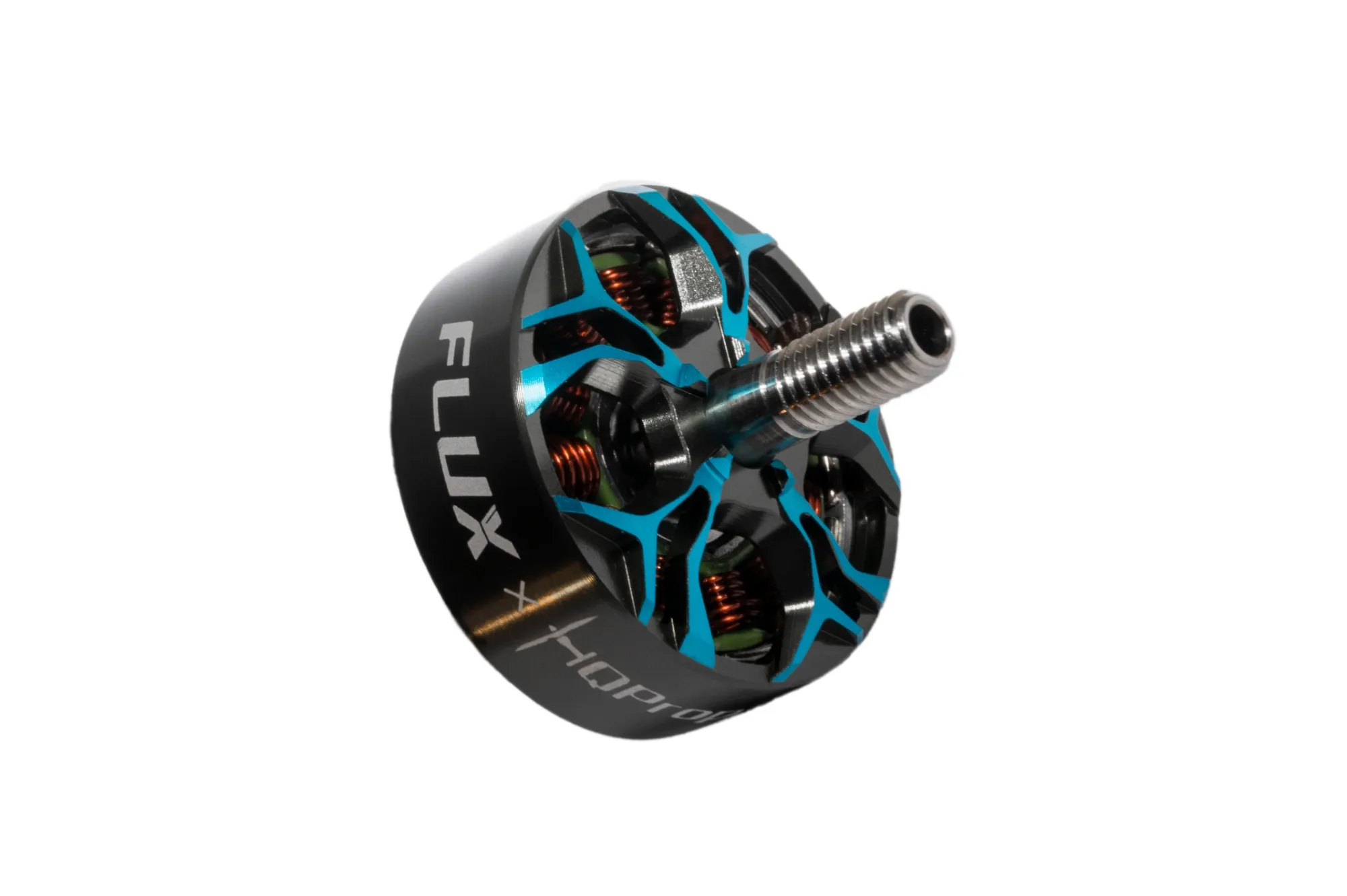

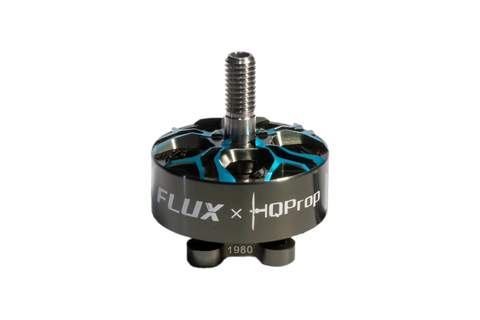

HQProp Flux 2207 Brushless Motor 2-4S (1980KV / 2050KV)

The HQProp Flux 2207 series motors deliver high thrust and responsive power for 5″-class FPV freestyle, racing, and high-performance multirotor drones. Precision-machined components and quality bearings ensure smooth operation and reliable performance in demanding flight conditions.

Available in multiple KV options, the Flux 2207 motors are optimized for both agility and efficiency, making them a versatile choice for a wide range of 5″ builds.

Key Features:

• Designed for 5″ FPV drones and similar multirotor platforms
• Precision machined housing for improved heat dissipation
• High-quality bearings for smooth, low-vibration operation
• Strong magnets and reinforced stator for durability
• Compatible with a wide range of 5″ propellers and ESCs

Specifications (Both KV Options):

• Motor Series: HQProp Flux 2207
• Stator Size: 2207 (22mm diameter × 7mm height)
• Configuration: 4-pole brushless
• Recommended Battery: 4S–6S LiPo
• Mounting Pattern: 16 × 16mm (M3 screws)
• Shaft Diameter: 5mm
• Total Weight: ~31g (varies slightly by variant)

1980KV Variant:

• KV Rating: 1980KV
• Best Use: Balanced power and efficiency for freeride and cruising
• Recommended Props: 5″ props (e.g., 5149–5045 tri-blades)

2050KV Variant:

• KV Rating: 2050KV
• Best Use: Higher RPM for punchy acceleration and tighter racing courses
• Recommended Props: 5″ props (e.g., 5149–5045 tri-blades)

Suitable For:

• 5″ freestyle FPV drones
• FPV racing quads
• High-performance multirotor projects

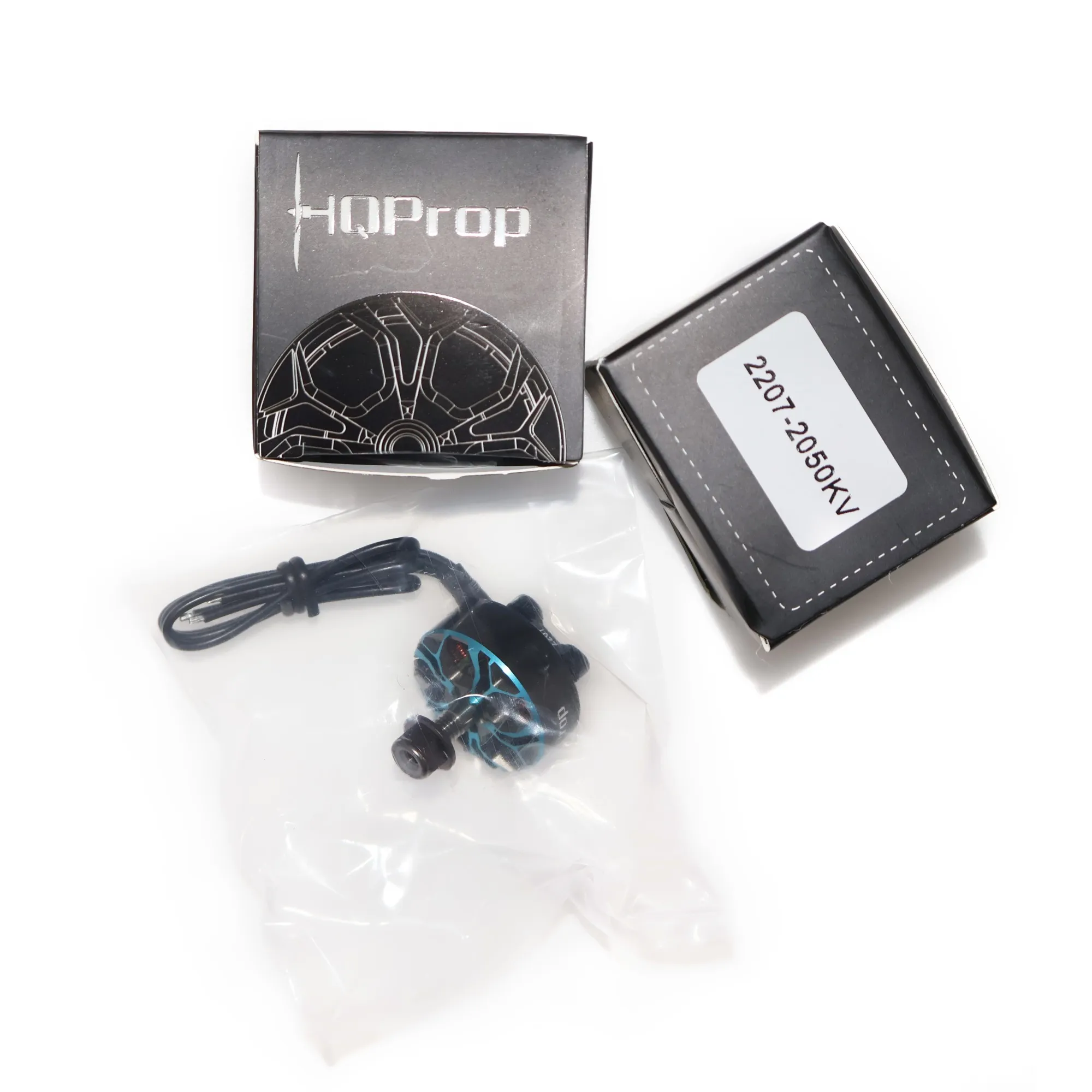

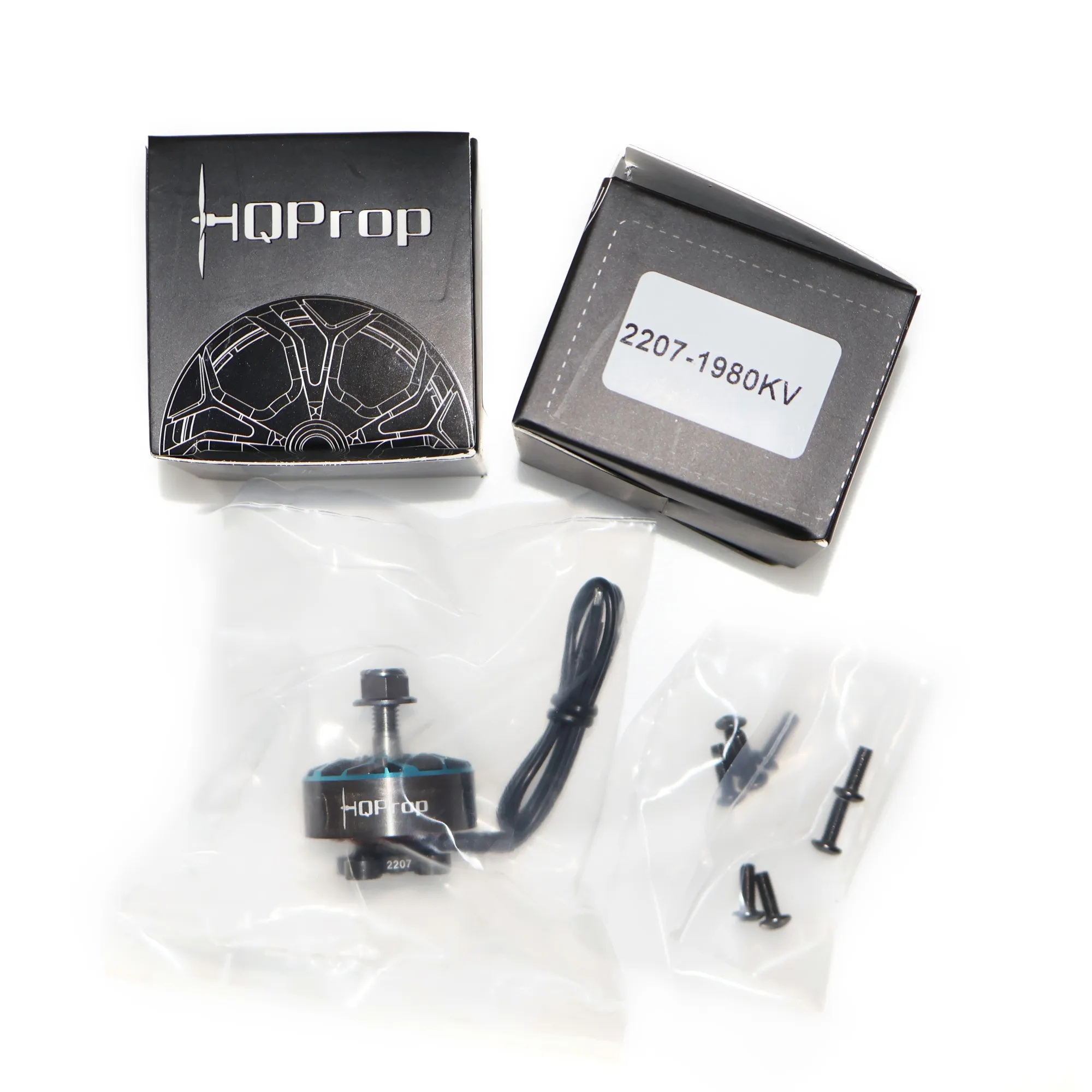

Package Contents:

• 1× HQProp Flux 2207 Brushless Motor (select 1980KV or 2050KV)
