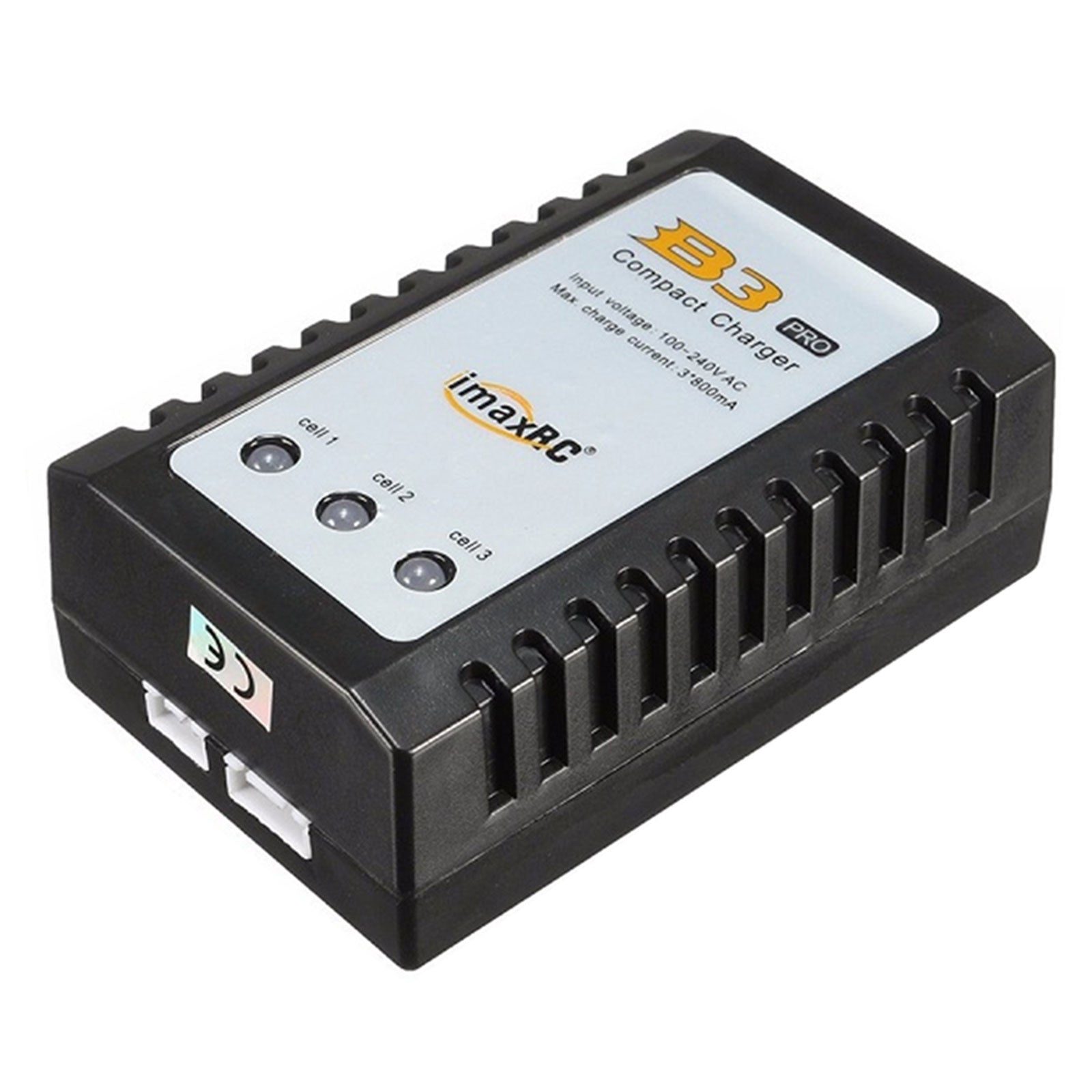

  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
  • ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v
ImaxRC B3 Pro 3s 2s Compact Lipo Charger with US Plug Adapter 100-240v

Added to Cart
Product Type: Battery Charger
Brand: imaxRC
Power Connector: US Plug
The B3 Compact charger is a very simple to use charger for 2S and 3S battery packs. No need for additional power supplies or 12v batteries as this little unit has its own built in power supply that can be powered with 100-240v

The B3 is very easy to use, simply plug it into the mains power and the 3 LEDs will light green and then flash to red to indicate the charger is ready. Connect the balance lead of your battery to the balance port of the charger, after 2 secs the charger detects the voltage of the battery and starts charging. When the charger starts charging the LEDs will glow constant red, if the battery is a 2 cell then the cell LED indicators 1 and 2 will glow constantly, if it is a 3 cell then the  cell 3 LED indicator will also glow. When a cell is completely charged the corresponding LED will turn green, when all cells turn green the battery is fully charged, disconnect the battery before switching off the charger.


Features:
  • Built in power supply
  • 100~240V Compatible
  • Automatic charge start

Specifications:
  • AC Input: 100~240V, 50~60Hz
  • Battery Type: LiPoly
  • Cell Count: 2~3 Cells
  • Charge Current: 1.2A Max
  • Cell Cut Off Voltage: 4.2V ± 0.02V
  • Circuit Power: 11W ± 10%
  • Dimensions: 88x57x35mm
  • Weight: 103g
  • Plug: US 2 Pin Plug

Package Contents:
  • 1x Imax B3 Charger
  • 1x US 120V Cable
