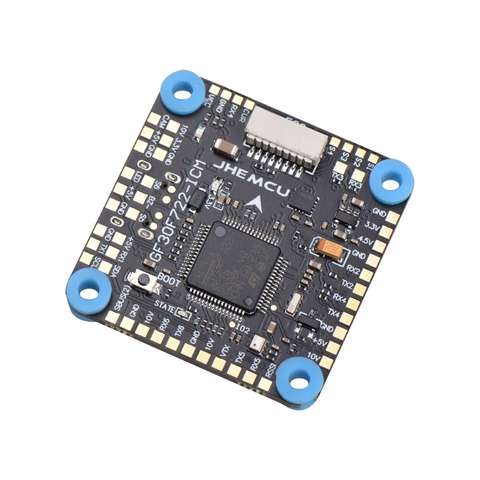

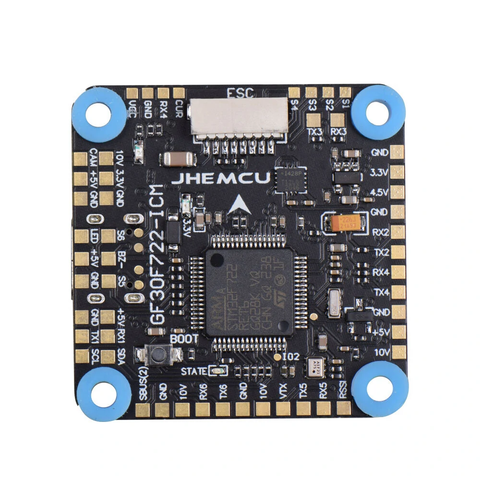

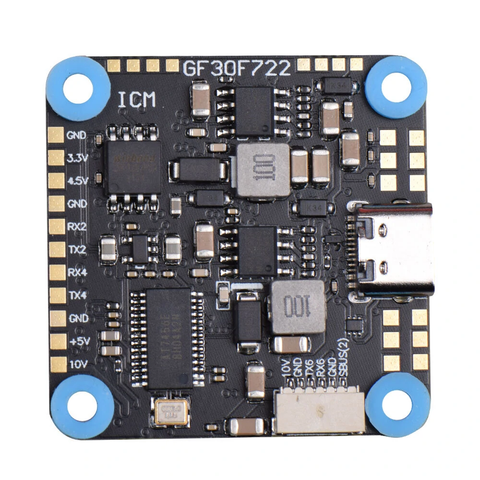

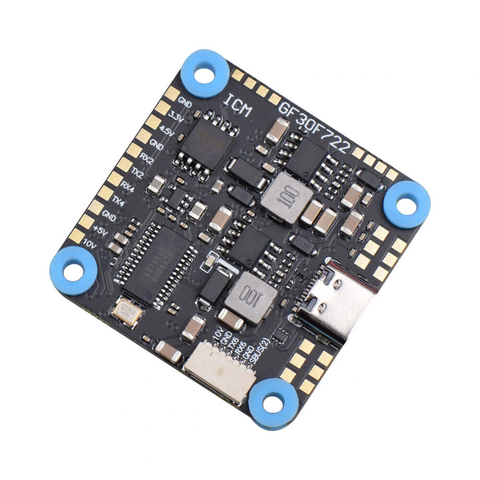

JHEMCU Flight Controller GF30F722-ICM F722 Baro OSD 5V 10V Dual BEC 3-8S
JHEMCU Flight Controller GF30F722-ICM F722 Baro OSD 5V 10V Dual BEC 3-8S
Product Type: Flight Controller
Brand: JHEMCU
BEC: Yes
Configuration: Standalone
CPU: F7
Mounting: 30.5x30.5
OSD: Yes
Brand: JHEMCU
BEC: Yes
Configuration: Standalone
CPU: F7
Mounting: 30.5x30.5
OSD: Yes
Features:
- Brand: JHEMCU
- Model: GF30F722-ICM F722
- MCU: STM32F722RET6
- IMU: ICM-42688-P/Gyro/Accel
- OSD: AT7456E
- Baro: Yes
- Blackbox: 16MB
- Input Voltage: 3-8S Lipo (11.4-36V)
- 5V-BEC: 5V/2.5A+±0.1V
- 10V-BEC: 10V/2A
- Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
- HD: Yes
- UART: URRT1/2/3/4/5/6
- IIC: 12C1
- Led_Strip: Yes
- Buzzer: 5V
- ESC Signal: PWM,Oneshot123,Oneshot42,Multishot Dshot150,Dshot300,Dshot600
- USB: Type-C
- Current Port: Yes
- Voltage Sensor: Yes
- Voltage Sensor: Yes
- DFU Button: Yes
- Firmware: Betaflight_4.3.1 JHEF7DUAL.HEX
- Size: 36*36mm
- Mounting Hole: 30.5*30.5*4mm
- Weight: 8.8g
Package Contents:
- 1x GF30F722-ICM F722 Flight Controller
