Product Type: Flight Controller
Brand: JHEMCU
Amps: 40A
BEC: Yes
Configuration: All-In-One
CPU: F4
Mounting: 25.5x25.5
OSD: Yes
In this design, AIO integrates the flight control and four-and-one ESC, and uses high-density BGA as the main control chip to increase the integration level and make it perfect.ESC output current 40A continuous current, 4 independent current outputs

Features:
  • The USB port is installed on the side with a built-in USB ESD chip
  • All signal ports add protection buffer components
  • Imported originals, stable quality

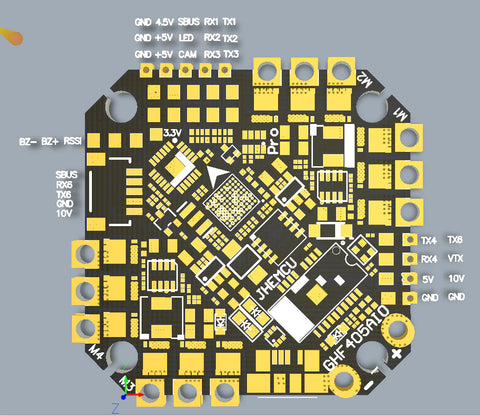

  • Reserved common functional interface pads, 5 UART ports (UART1, UART2, UART3, UART4, ART6).

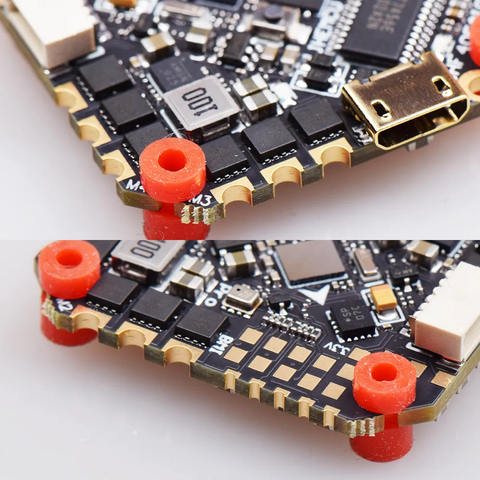

  • Half-hole motor pad, support high current output
  • Integrated Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery

 Specifications:
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Input voltage: 3S-6S Lipo
  • Continuous current: 40A (two models are optional)
  • Firmware: Bluejay G_H_30_48k.HEX
  • CPU: STM32F405
  • Gyro Sensor: ICM42688P
  • Size: 33* 33mm (25.5mm mounting hole)
  • Firmware version: Betaflight JHE405
  • Black box: support
  • Barometer: Support
  • OSD: Support
  • IIC: Support
  • UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
  • BEC: BEC 5V/2.5A and 10V/2A
  • DJIVTX: Support, reserved special socket, equipped with plug wire.

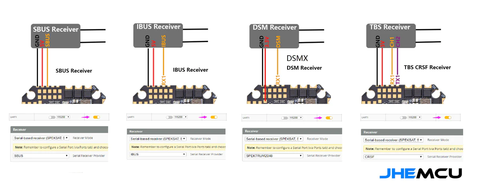

  • Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
  • Support WS2812 programmable LED
  • Support buzzer
  • Built-in voltage and current sensors
  • Weight: 7.1 grams

 Package Contents:
  • 1 x JHEMCU GHF405 Bluejay 40A 3-6S AIO Whoop Flight Controller
