JHEMCU GHF420AIO BGA F4 OSD Flight Controller w/ 5V 10V BEC Output & Built-in 40A BL_S 4In1 ESC

JHEMCU GHF420AIO BGA F4 OSD Flight Controller w/ 5V 10V BEC Output & Built-in 40A BL_S 4In1 ESC

Sold Out

Product Type: Flight Controller
Brand: JHEMCU
Amps: 40A
BEC: Yes
Configuration: All-In-One
CPU: F4
Mounting: 20x20
OSD: Yes

Specifications:
  • MCU: STM32F405 / 168MHz
  • IMU: ICM42688 / Gyro /Accel
  • OSD: AT7456E
  • Input Voltage: 2-6S
  • BEC: 5V 2.5A , 10V 2A
  • Baro: Yes
  • Blackbox: 8M
  • USART: UART1,UART2,UART3,UART4,UART6
  • Receiver: SBUS,IBUS,DSM2,DSMX,TBS (CRSF),ELRS(CRSF)
  • LED Strip: YES
  • Buzzer: Support 5V
  • Current Sensor: YES
  • Voltage Sensor: Yes
  • DFU Button: Yes
  • Firmware: betaflight_4.3.1 JHEF405.HEX
  • Current: 40A
  • MCU: EFM8BB21F16G
  • Type: Bluejay/BLheli_S
  • Firmware: G_H_30_REV16_7.HEX
  • Support 48K / 96K firmware

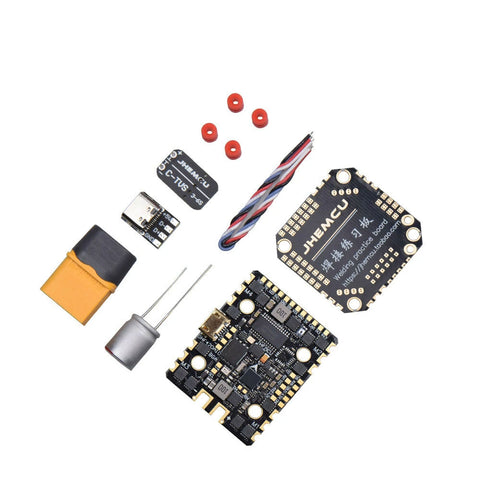

 Package Contents:
  • 1x Jhemcu GHF420AIO BGA F4 FC Built-in 40A ESC Board
  • 1x Cable
  • 4x Anti-vibration Standoff
  • 1x Capacitor
  • 1x Connector
  • 1x Welding Practice Board



>
