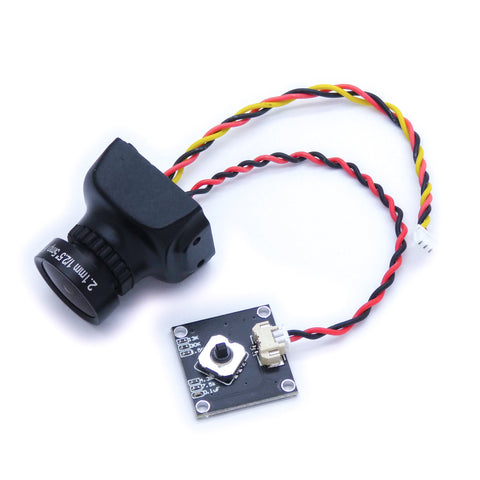

Mini A23 1500TVL CCD FPV Camera with OSD Adjustment Mini A23 1500TVL CCD FPV Camera with OSD Adjustment
Mini A23 1500TVL CCD FPV Camera with OSD Adjustment

Added to Cart
Maximum Available

Product Type: Unknown Type
Brand: SpeedyFPV
Resolution: 1500TVL
Sensor: CCD

Specifications:
  • Model: MINI A23 FPV cameras
  • Lmage Sensor: 1/3'Mg SUPER HAD II CCD
  • Horizotal Resoulution: D1 960H
  • Lens: 2.1mm
  • Signal System: PAL/NTSC (OSD Internal adjustable)
  • S/N Ratio: >60Db(AGC OFF)
  • Electronic Shutter Speed: PAL: 1/50-100.000, NTSC:1/60-100,000
  • Auto Gain Control(AGC): LOW/MIDDLE/HIGH
  • Back light compensation(BLC): YES
  • Min lllumination: 0.001Lux/1.2F
  • WDR D-WDR DNR 3DNR Day/Night
  • Auto/Color/B*W
  • Power: DC 5V-30V
  • Net weight: 15g
  • Dimensions: 22mm*25mm*28mm

OSD Adjustment Specifications:
  • Exposure: Brightness/exposure mode/gain
  • White balance: Automatic tracking white balance
  • Day and night mode: Internal automatic/color mode/black and white mode
  • Video Settings: Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamic
  • Language: Chinese/English/German/Italian/Russian
  • Restore the factory Settings: OK
  • Save and exit: OK

Package Contents:
  • 1x A23 Camera
