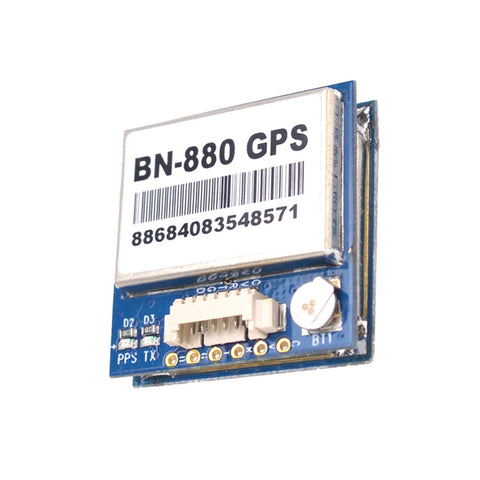

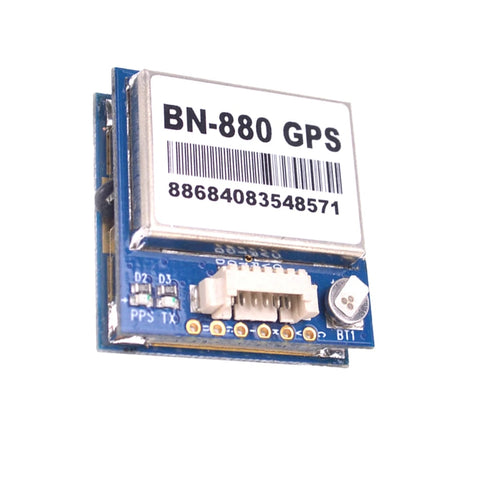

BN880 Dual GPS Compass Module GLONASS Antenna Module for Drones RC Aircraft
BN880 Dual GPS Compass Module GLONASS Antenna Module for Drones RC Aircraft
Enhanced Compatibility and Stability: The BN-880 GPS Module supports multiple satellite systems including GPS, GLONASS, and BeiDou, ensuring compatibility with a wide range of devices and systems. With 72 searching channels and exceptional sensitivity levels, it delivers reliable performance even in challenging environments.
Efficient Power Supply and Consumption: Featuring a flexible power supply range of DC Voltage 2.8V~6.0V (Typical: 3.3V or 5.0V), this module offers efficient power consumption with a capture of only 50mA@5V. It ensures optimal performance while conserving energy, making it suitable for long-duration use.
Fast Positioning and Precise Tracking: Experience fast positioning with cold starts averaging 26 seconds, warm starts averaging 25 seconds, and hot starts averaging 3 seconds. With a level positioning precision of 2m at open wind, this module provides accurate tracking and reliable navigation assistance.
Dynamic Characteristics and Versatile Interface: With a maximum height of 18000m, maximum speed of 5153m/s, and maximum acceleration of 4G, this module offers dynamic performance suitable for various applications. It features a UART interface with TXDA and RXDA ports, supporting rates from 4800bps to 115200bps.
Compact Design and Easy Installation: Measuring just 28mm x 28mm x 10mm and weighing 10g, the BN-880 GPS Module features a compact and lightweight design for easy installation. Its 6-pin patch seat interface (SDA, GND, TX, RX, VCC, SCL) ensures convenient connectivity and compatibility with a wide range of devices.
Specifications:
Efficient Power Supply and Consumption: Featuring a flexible power supply range of DC Voltage 2.8V~6.0V (Typical: 3.3V or 5.0V), this module offers efficient power consumption with a capture of only 50mA@5V. It ensures optimal performance while conserving energy, making it suitable for long-duration use.
Fast Positioning and Precise Tracking: Experience fast positioning with cold starts averaging 26 seconds, warm starts averaging 25 seconds, and hot starts averaging 3 seconds. With a level positioning precision of 2m at open wind, this module provides accurate tracking and reliable navigation assistance.
Dynamic Characteristics and Versatile Interface: With a maximum height of 18000m, maximum speed of 5153m/s, and maximum acceleration of 4G, this module offers dynamic performance suitable for various applications. It features a UART interface with TXDA and RXDA ports, supporting rates from 4800bps to 115200bps.
Compact Design and Easy Installation: Measuring just 28mm x 28mm x 10mm and weighing 10g, the BN-880 GPS Module features a compact and lightweight design for easy installation. Its 6-pin patch seat interface (SDA, GND, TX, RX, VCC, SCL) ensures convenient connectivity and compatibility with a wide range of devices.
Specifications:
- Model: BN-880
- Power Supply: DC Voltage 2.8V~6.0V (Typical: 3.3V or 5.0V)
- Consumption: Capture 50mA@5V
- Receiving Format: GPS, GLONASS, BeiDou
- Receiving Channel: 72 Searching Channels
- Receiving Sensitivity:
- Trace: -167dBm
- Capture: -148dBm
- Positioning Time:
- Cold Start: Avg. 26s
- Warm Start: Avg. 25s
- Hot Start: Avg. 3s
- Level Positioning Precision: 2m At Open Wind
- Output Frequency: 1Hz-10Hz (Default 1Hz)
- Speed Precision: 0.1 m/s (Without Aid)
- Acceleration Precision: 0.1 m/s (Without Aid)
- Dynamic Characteristics:
- Max Height: 18000m
- Max Speed: 5153m/s
- Max Acceleration: 4G
- UART Interface: UART Port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps (Default 38400dps)
- Working Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Size: 28mm x 28mm x 10mm
- Weight: 10g
- Module's Pins: SDA, GND, TX, RX, VCC, SCL

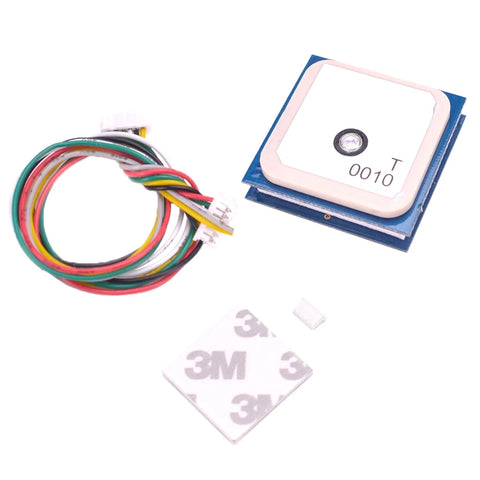

- 1x BN880 GPS Module
