2030 Rocket GECKO Sensored Brushless Motor/ESC Combo (3500KV/30A ESC)

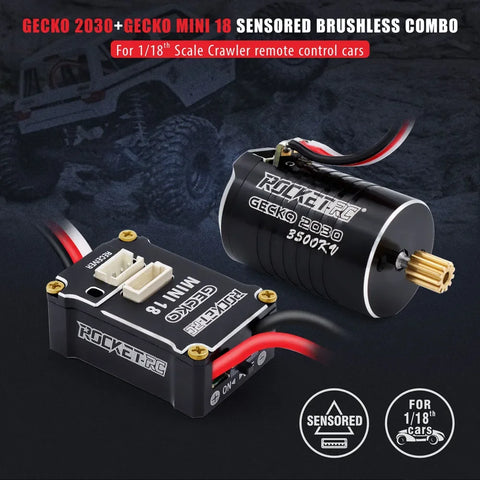

Introducing the GECKO 2030 Sensored Brushless Combo, designed for 1/18th Scale Crawler RC cars. This high-performance combo includes both the GECKO 2030 motor and the GECKO MINI 18 ESC, offering exceptional power and control for your RC adventures.

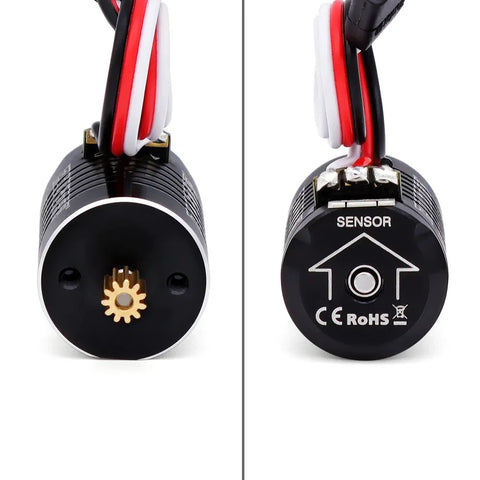

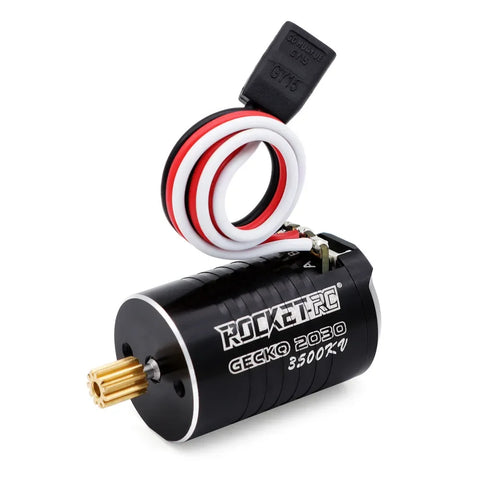

2030 Motor Features:

• Maximum power output of 120w with an efficiency rate of around 92%.
• Thickened gold plated PCB circuit board for easy welding of ESC cables.
• Standard 5PIN-1.27 terminal sensor port for sensor wires connection.
• High slot full resistance internal resistance for high power output.
• Unique stator design with 0.2mm silicon steel sheet for efficiency up to 94%.
• Explosion-proof magnetic rotor with 2Pole Super compliant linear high-speed performance up to 200 DegreesC.

2030 Motor Specifications:

• KV: 3500KV
• Dimensions: 17.9x16.6mm
• Lead: 24#AWG 150mm
• Shaft Diameter: 1.5mm
• Idle Current(10V): 0.5A
• Peak Current(60S): 19A
• Weight (Including Cable): 9.34g
• Internal Resistance: 195 ohm
• Rated Voltage (Lipo): 3-4S
• Mounting: 9x9mm/M2

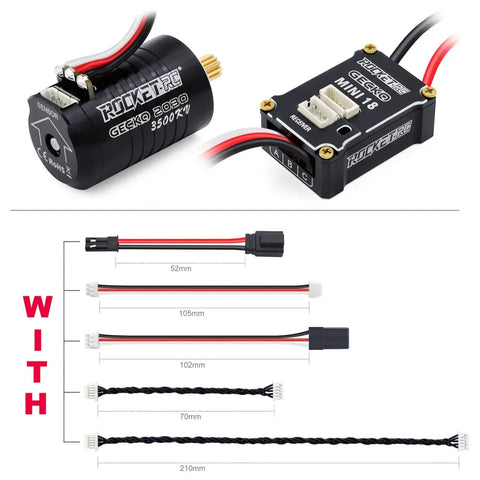

Package Contents:

• 1x 2030 Sensored Brushless Motor

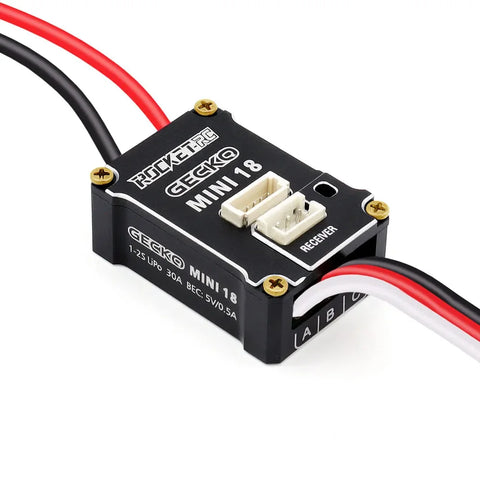

• 1x Mini18 30 Amp ESC
• 1x Metal Pinion
• 1x Product Manual
