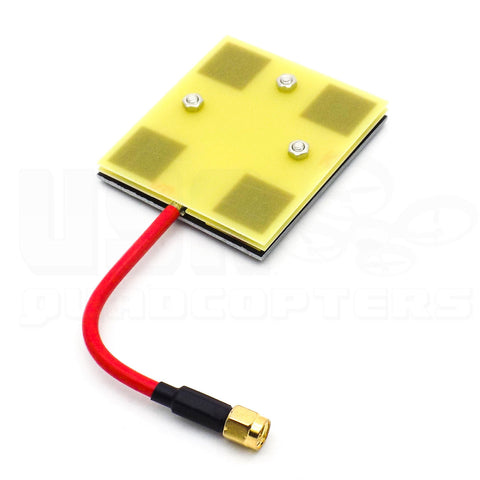

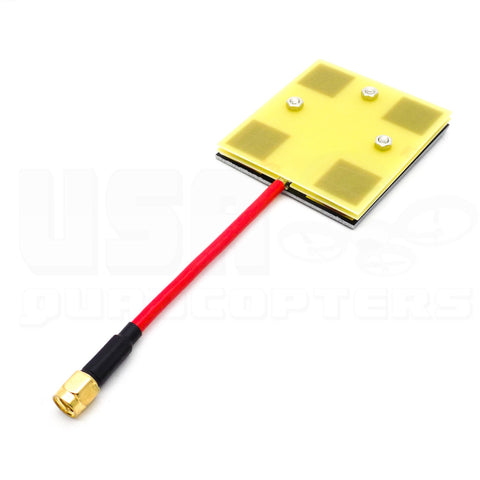

5.8Ghz FPV Panel Antenna Directional Patch Receiver (SMA)

Extended Video Range: Experience an unparalleled FPV video range with the 5.8GHz FPV Panel Antenna. Its highly sensitive directional design allows for much greater distances, providing you with an extended FPV flying experience like never before.

High-Performance Design: Specially engineered for RC FPV applications, this mini-sized antenna boasts high gain, low SWR (Standing Wave Ratio), and a remarkable self-recovery function at any angle. You can trust its reliability and performance even in challenging flight conditions.

Versatile Frequency Range: Covering a frequency range of 5600-5950MHz, this antenna ensures compatibility with various 5.8GHz VTX/RX setups. Whether you're using a 1200mW or 600mW transmitter and receiver, you can expect stable and clear video transmission.

High Sensitivity Design: Specially crafted for RC FPV, this antenna boasts excellent sensitivity with a high-gain directional pattern. Its low SWR and self-recovery function at any angle ensure exceptional signal reception, providing a clear and stable video feed even in challenging flying conditions.

Features:

• Specially designed for RC FPV, mini size, high gain, low SWR, and high self-recovery factor at any angle.
• The black side should face the signal source for best performance.
• Transmitting distance: 15km with 5.8G 1200mw VTX/RX.2km with 5.8G 600mw VTX/RX.
• Frequency: 5600-5950MHz
• vertical beamwidth: 40 degree
• 3db horizontal beamwidth: 35 degree
• Impedance: 50ohm
• Polarization: Vertical
• Sidelobe suppression>=13DB
• VSWR: <=1.5
• Front-to-back ratio: >=25DB
• Maximum power: 50W
• Connector: SMA Male (Inner Needle)
• DC grounded
• High self-recovery factor

• Item size: 60 * 55 * 6mm / 2.4 * 2.2 * 0.2in
• Total weight: 27g / 0.9oz

• 1x 5.8GHz Panel Antenna (SMA)
