TAOGLAS 5.8GHz 2.4GHz Hinged Dipole Antenna (RP-SMA Male Connector)

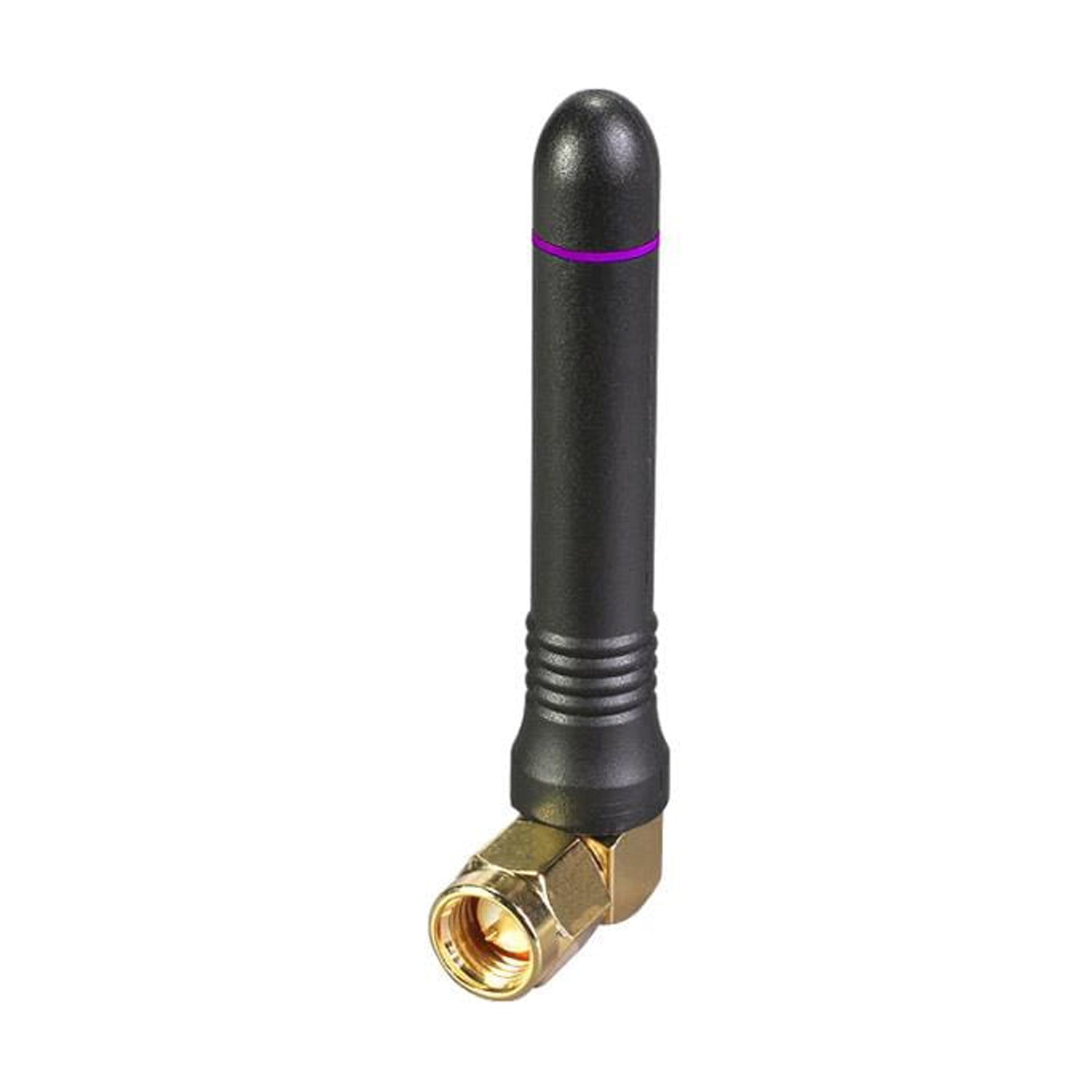

The TE Connectivity / Linx Technologies ANT-916-CW-RCS-SMA is a compact 915MHz right-angle whip antenna designed for reliable wireless communication across the 902MHz to 930MHz frequency range. Its external-mount design and standard SMA male connector make it easy to install directly onto compatible radios, transmitters, receivers, and telemetry equipment.

This quarter-wave monopole antenna provides up to 4.8dBi gain in a compact form factor. It is well suited for 915MHz ISM, LoRa, LoRaWAN, Sigfox, NB-IoT, telemetry, remote-control, and other low-power wireless applications.

Specifications:

• Manufacturer: TE Connectivity / Linx Technologies
• Manufacturer Part Number: ANT-916-CW-RCS-SMA
• Antenna Type: Right-Angle Whip Antenna
• Electrical Type: Monopole
• Frequency Range: 902MHz to 930MHz
• Center Frequency: 915MHz
• Gain: 4.8dBi
• Impedance: 50 Ohms
• Wavelength: 1/4 Wave
• Polarization: Linear
• Number of Bands: 1
• Maximum Power: 5W
• Connector: SMA Male
• Mounting Type: External Mount
• Operating Temperature: -20°C to 85°C

Package Contents:

• 1x TE Connectivity / Linx Technologies 915MHz Right-Angle Whip Antenna
